Water Sprinkler Trucks

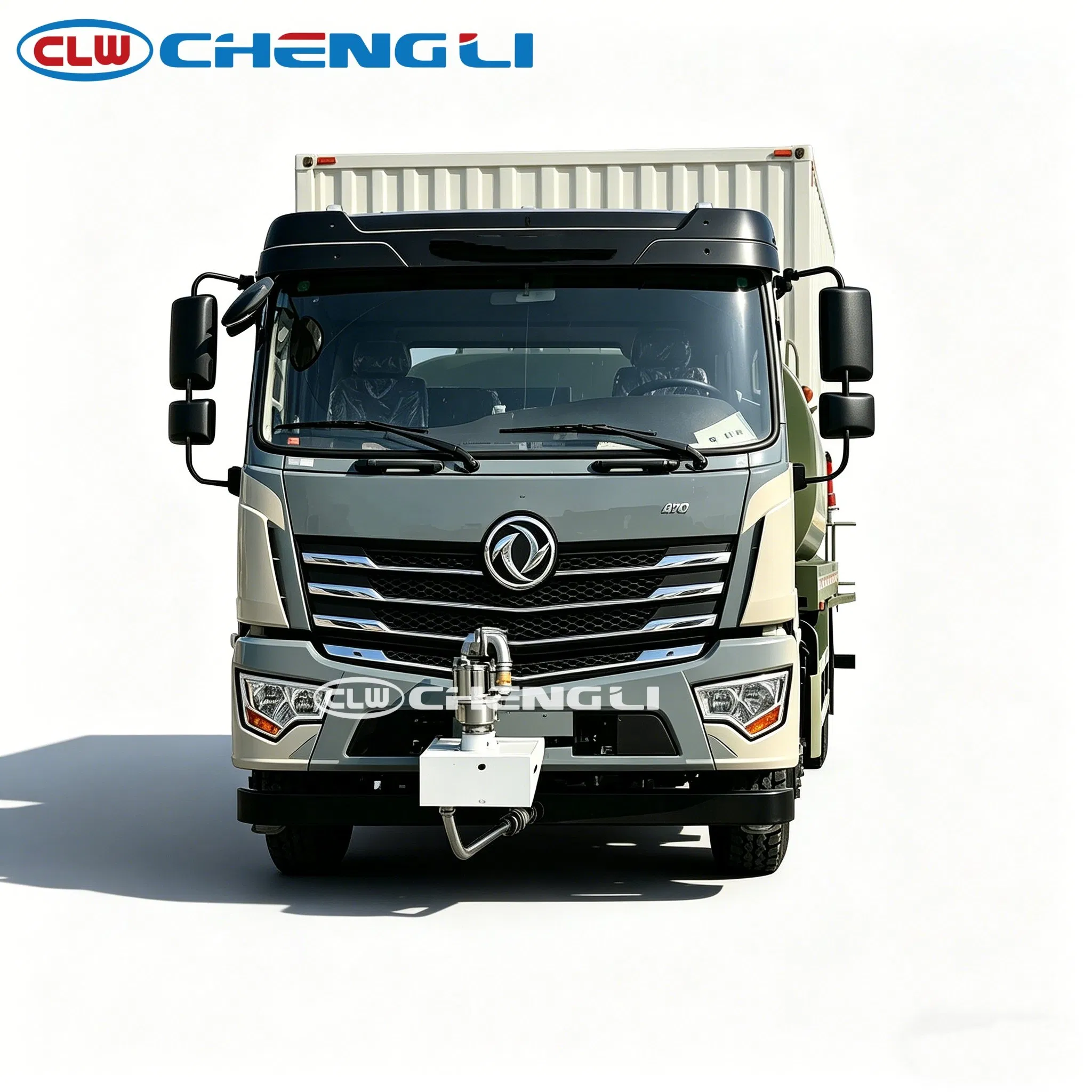

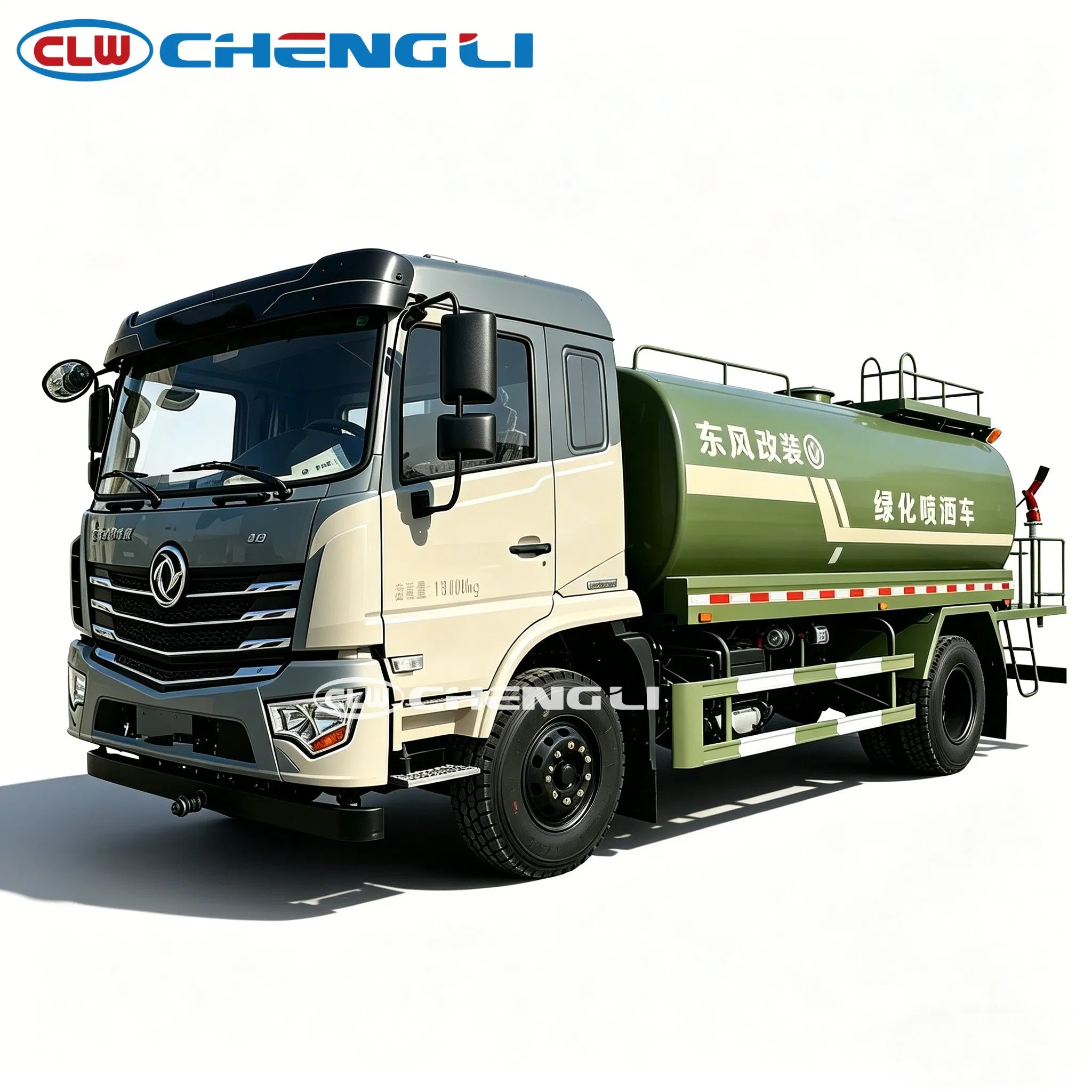

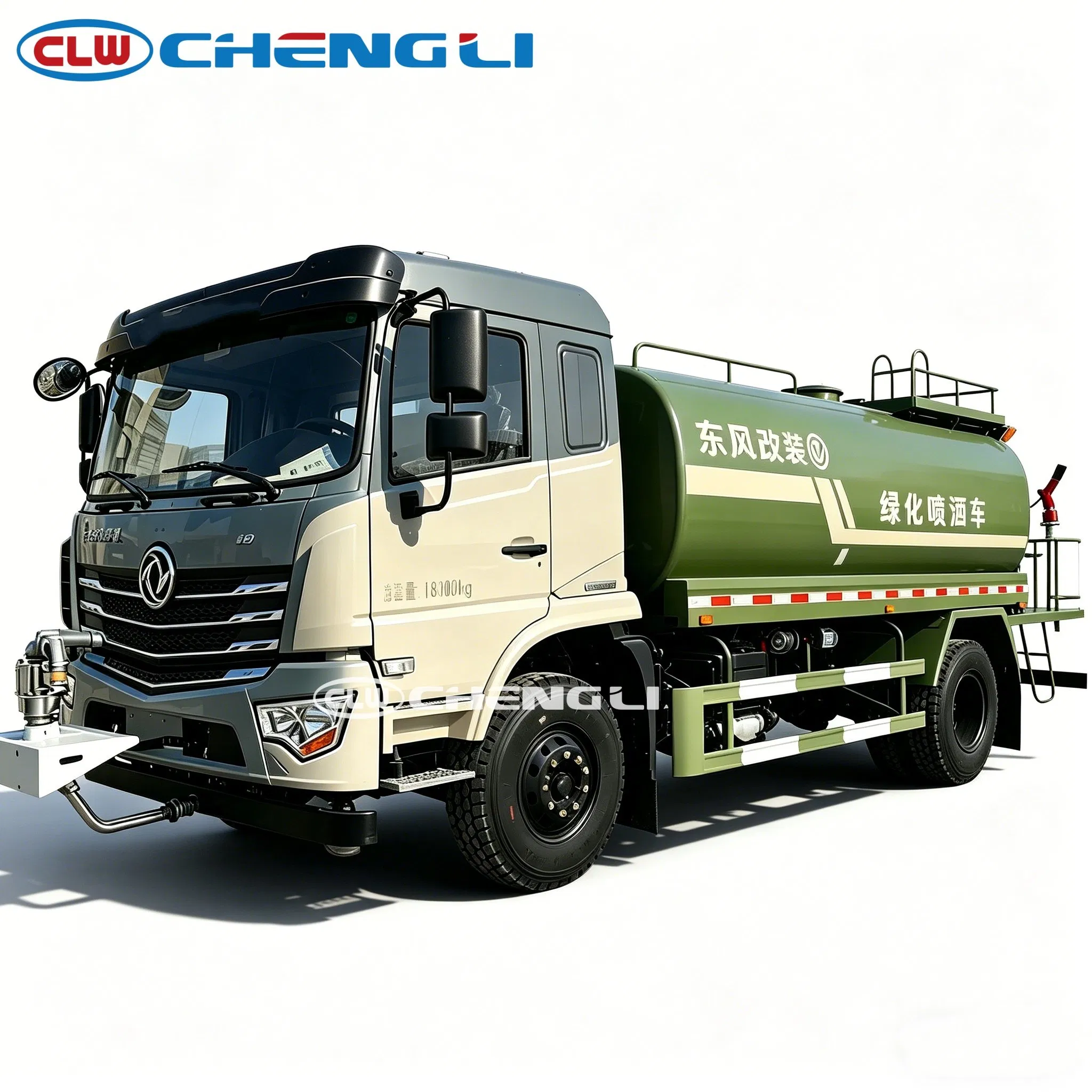

12 m³ 4x2 Water Sprinkler Truck
12 m³ 4x2 Water Sprinkler Truck is configured for road watering, dust control and municipal water delivery. Source specifications describe the principal chassis and working system; final axle loads, dimensions, pump or lifting duty, destination compliance and optional equipment must be confirmed against the signed build sheet before quotation.
Product gallery
Technical specifications
| Water tank capacity | Capacity to be confirmed from final build sheet |
|---|---|
| Vehicle model | CLW5160 |
| Drive layout | 4×2 |
| Fuel type | Diesel |
| Transmission | Manual |
| Wheelbase | 3950 mm |
| Gross vehicle weight | 16000 kg |
| Overall width | 2200 mm |
| Overall height | 2350 mm |
| Overall length | 7030 mm |
| Gross vehicle weight | 16000 Kg |
| Curb weight | 6480 Kg |
| Rated payload | 10t |
| Overall dimensions | 7030×2200, 2350×2800 mm |
| Working system | Water tank, pump, front/rear spray and water cannon |
| Final duty point | Confirm against the signed configuration and operating conditions |
12 m³ 4x2 Water Sprinkler Truck should be assessed within the complete operating workflow. Watering productivity is determined by the relationship between spray pattern, travel speed, refill distance and the surface being treated.
Plan the working route and refill points first, then use the structured specifications below to confirm the appropriate vehicle build. Exact sourced values and items requiring confirmation are kept in the structured sections below.
Core capabilities
Purpose-built working system
Water tank, pump, front/rear spray and water cannon
Conditions: Final equipment configuration and duty point are confirmed.
Nominal carrying capacity
Confirm nominal capacity for the final build.
Conditions: Legal fill depends on final gross and axle weights.
Applications and operating fit
Road watering, dust control and municipal water delivery
Suitable conditions
- Road watering
- Construction dust control
- Landscape irrigation with suitable water
Conditions requiring a different specification
- Potable-water delivery without approved tank specification
- Firefighting without separate approval
- Routes exceeding legal loaded weight
Chassis and configuration
Frequently asked questions
What should be confirmed before quotation?
Confirm the required capacity, daily workload, site access, destination rules and final working-system performance. The source figures are configuration references, not guaranteed values.
Is the listed capacity the legal payload?
No. Nominal tank or body volume is not the same as legal payload. Permitted fill must be checked against final gross vehicle and axle weights.
Plan a project quotation
Information to provide
- Required capacity and daily workload
- Road, access and turning constraints
- Destination country and steering side
- Required working-system performance
- Applicable registration and compliance documents
Checks before quotation
- Confirm signed chassis and body specification
- Confirm legal gross and axle loads
- Confirm working-system duty point
- Confirm destination compliance and documents
- Confirm image and final build correspondence
