Swing Arm Garbage Trucks

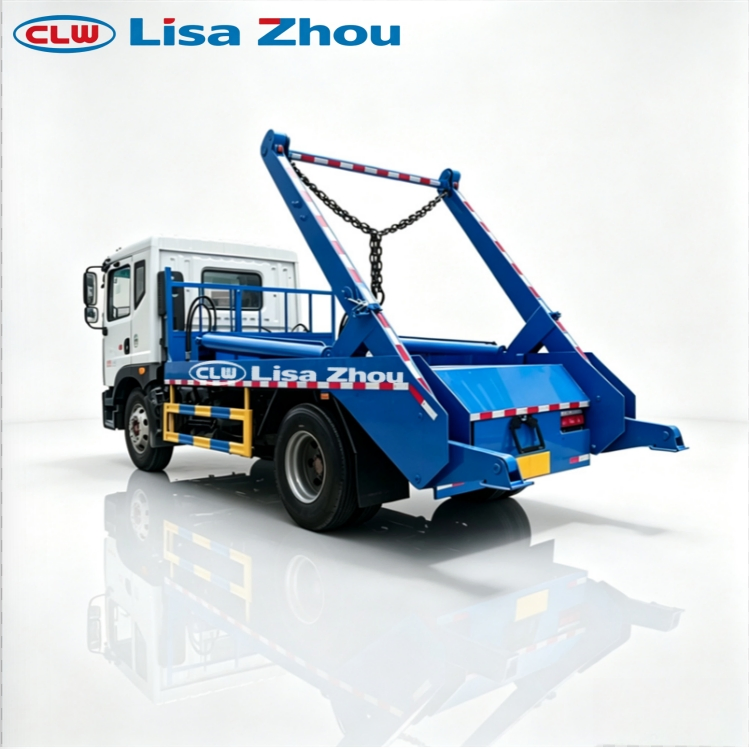

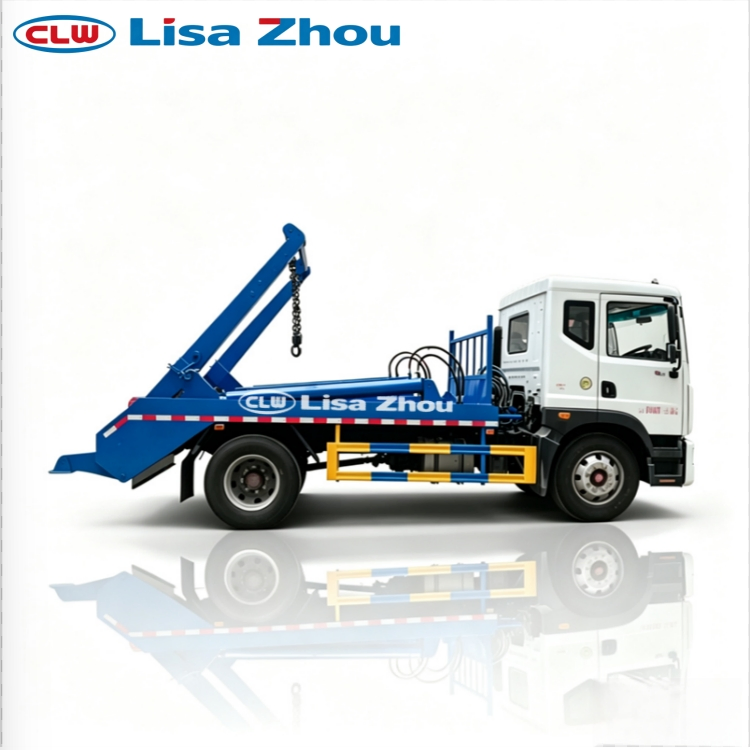

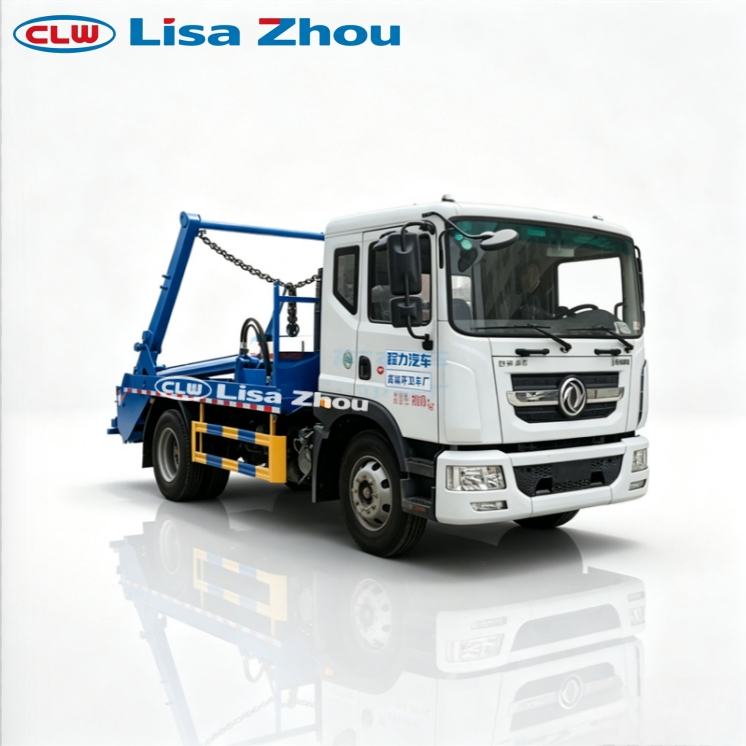

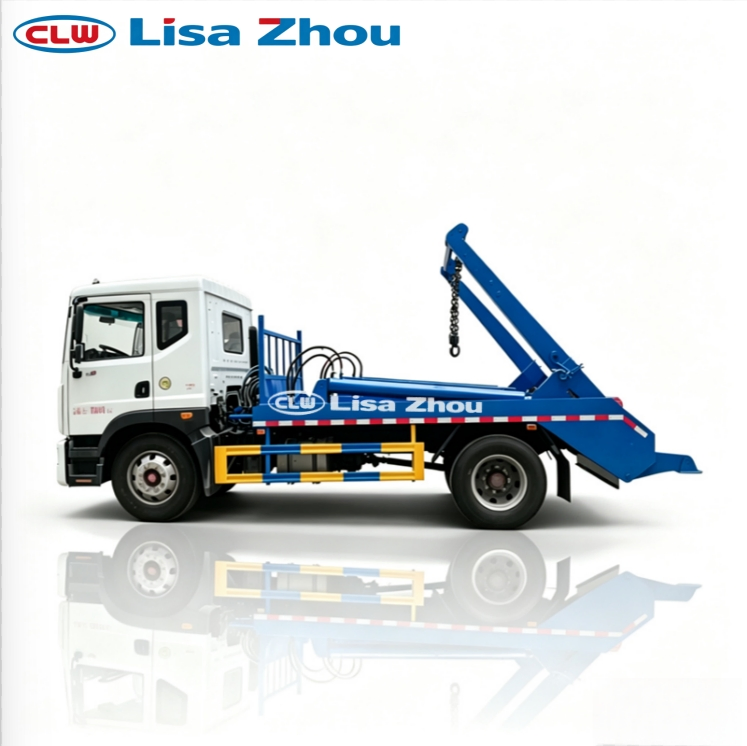

Urban Domestic Waste Swing Arm Garbage Truck
Urban Domestic Waste Swing Arm Garbage Truck is configured for detachable-bin lifting and municipal waste transfer. Source specifications describe the principal chassis and working system; final axle loads, dimensions, pump or lifting duty, destination compliance and optional equipment must be confirmed against the signed build sheet before quotation.
Product gallery
Technical specifications
| Detachable-bin capacity | Source-listed nominal capacity: 10m³ |
|---|---|
| Drive layout | 4×2, Left Hand Drive (LHD) |
| Fuel type | Electric |
| Transmission | Manual |
| Wheelbase | 3950 mm |
| Gross vehicle weight | 18000 kg |
| Overall width | 2500 mm |
| Overall height | 3310 mm |
| Overall length | 7360 mm |
| Gross vehicle weight | 18000kg |
| Curb weight | Not confirmed |
| Rated payload | 11185kg |
| Overall dimensions | 7360×2500×3310 mm |
| Working system | PTO-driven hydraulic swing-arm lifting system |
| Final duty point | Confirm against the signed configuration and operating conditions |
Urban Domestic Waste Swing Arm Garbage Truck should be assessed within the complete operating workflow. Swing-arm collection depends on repeatable alignment between the vehicle and the detachable bins used along the route.
Check bin geometry, lifting clearance, ground stability and unloading access before confirming the final installation. Exact sourced values and items requiring confirmation are kept in the structured sections below.
Core capabilities
Purpose-built working system
PTO-driven hydraulic swing-arm lifting system
Conditions: Final equipment configuration and duty point are confirmed.
Nominal carrying capacity
Source lists 10m³.
Conditions: Legal fill depends on final gross and axle weights.
Applications and operating fit
Detachable-bin lifting and municipal waste transfer
Suitable conditions
- Community waste points
- Ground or pit-mounted compatible bins
- Short-haul municipal transfer
Conditions requiring a different specification
- Bins with unverified lifting geometry
- Operation on unstable or steep ground
- Loads beyond verified lifting capacity
Chassis and configuration
Frequently asked questions
What should be confirmed before quotation?
Confirm the required capacity, daily workload, site access, destination rules and final working-system performance. The source figures are configuration references, not guaranteed values.
Is the listed capacity the legal payload?
No. Nominal tank or body volume is not the same as legal payload. Permitted fill must be checked against final gross vehicle and axle weights.
Plan a project quotation
Information to provide
- Required capacity and daily workload
- Road, access and turning constraints
- Destination country and steering side
- Required working-system performance
- Applicable registration and compliance documents
Checks before quotation
- Confirm signed chassis and body specification
- Confirm legal gross and axle loads
- Confirm working-system duty point
- Confirm destination compliance and documents
- Confirm image and final build correspondence
