Street Sweeper Trucks
Heavy-Duty Municipal Street Sweeper Truck
Heavy-Duty Municipal Street Sweeper Truck is configured for street sweeping and debris collection. Source specifications describe the principal chassis and working system; final axle loads, dimensions, pump or lifting duty, destination compliance and optional equipment must be confirmed against the signed build sheet before quotation.

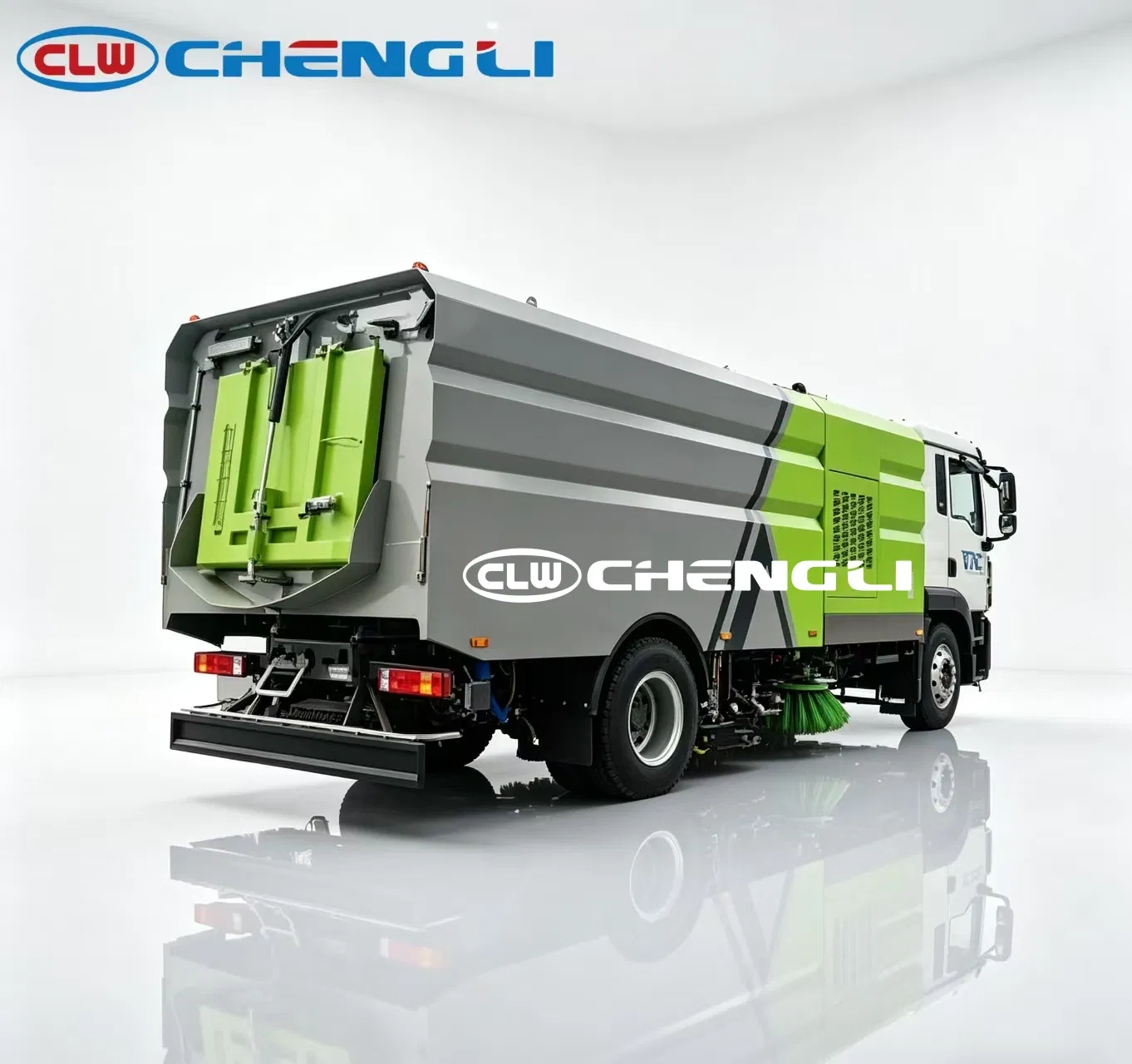

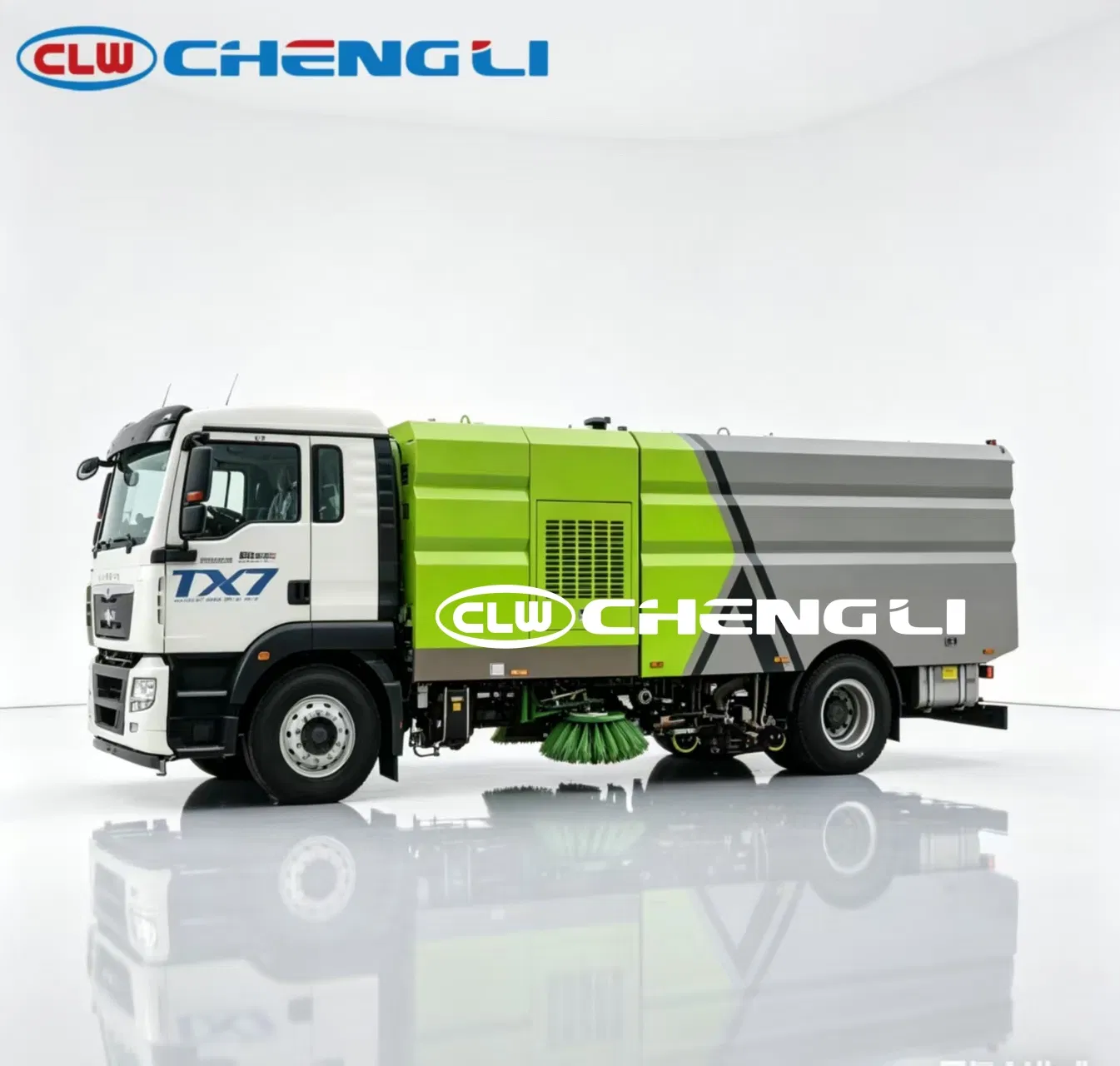

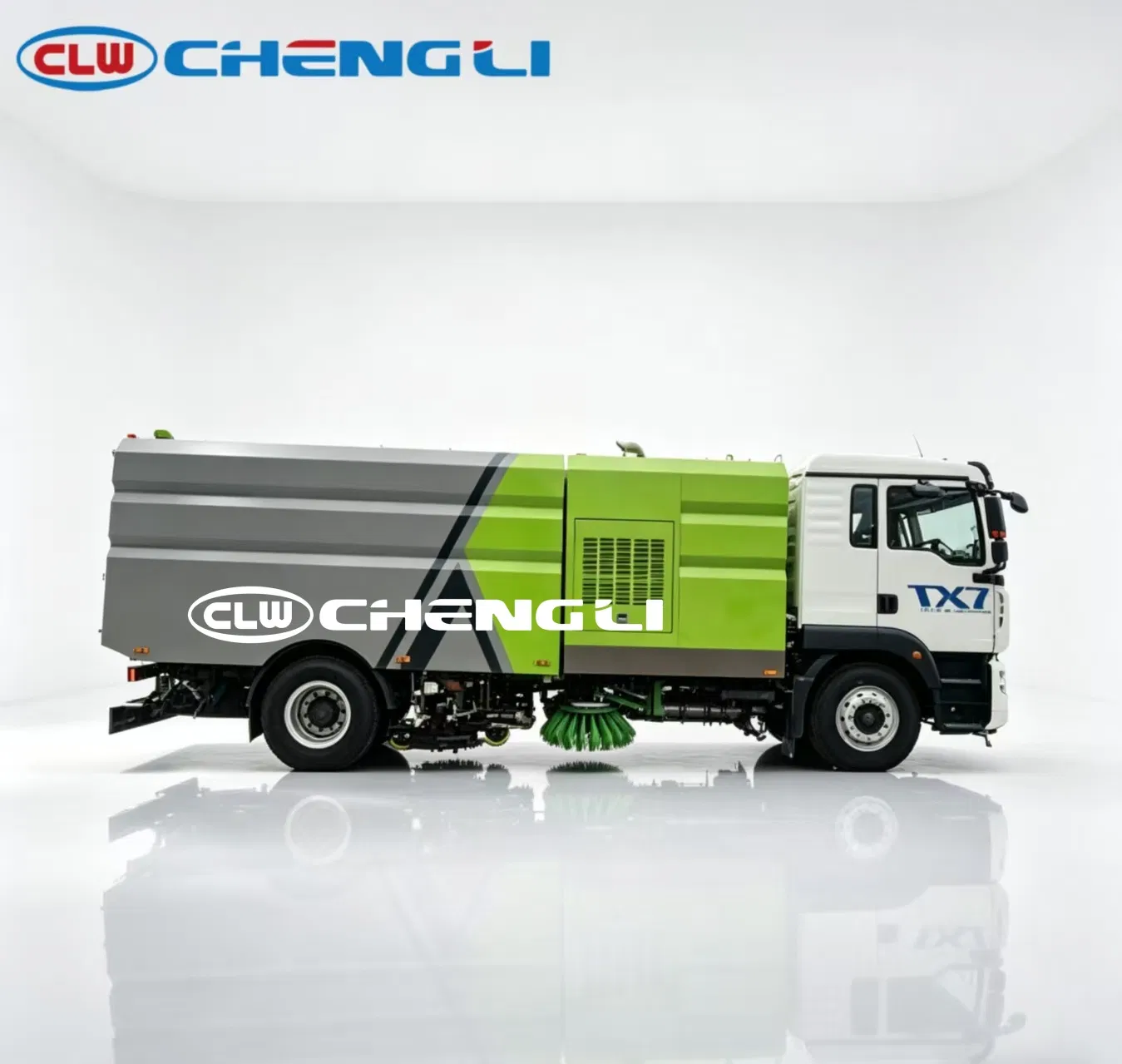

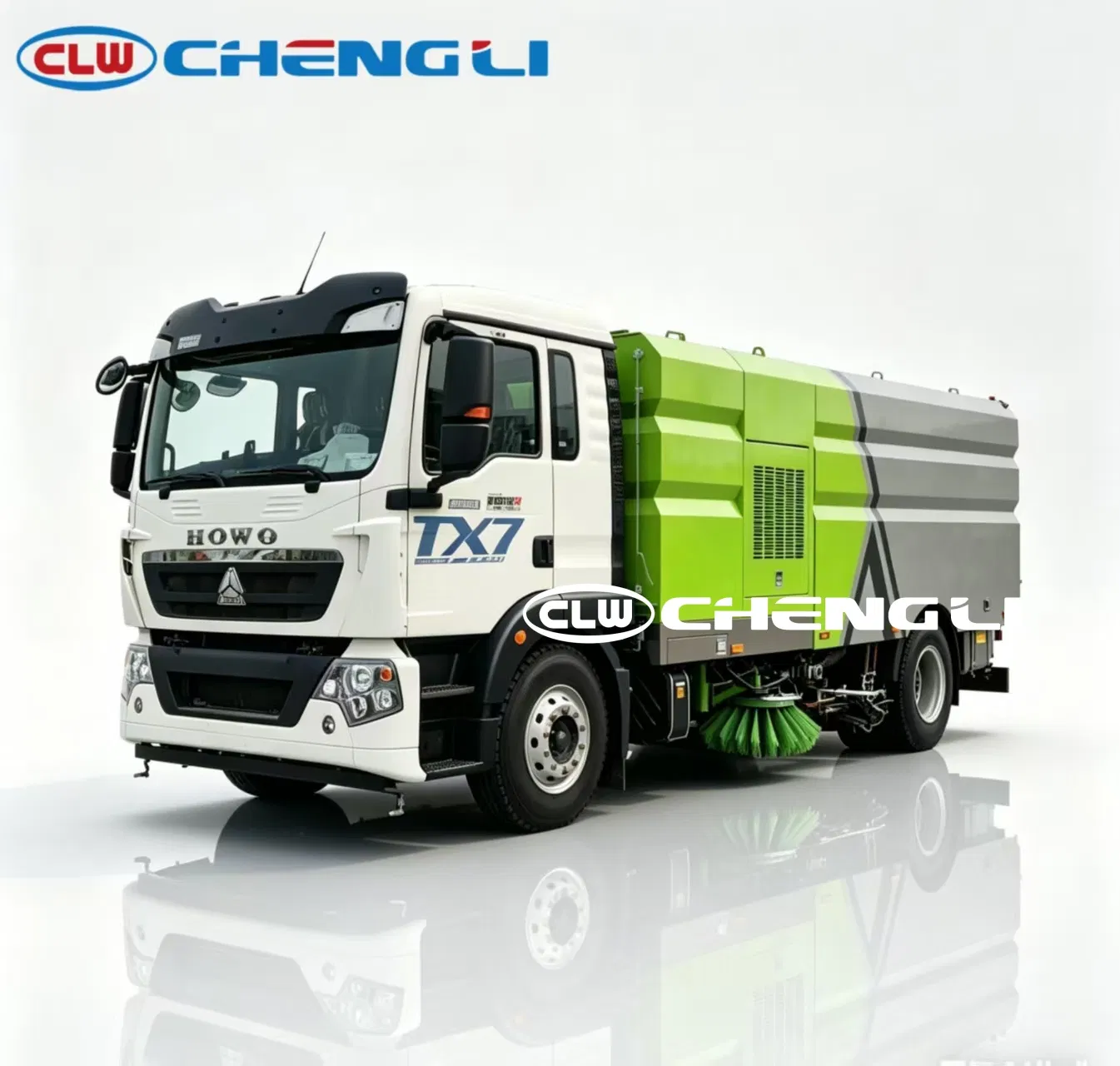

Product gallery
Technical specifications
| Water / debris capacity | Source-listed nominal capacity: 7m³ |
|---|---|
| Fuel type | Electric |
| Transmission | Manual |
| Wheelbase | 5000 mm |
| Gross vehicle weight | 18000 kg |
| Overall width | 2480 mm |
| Overall height | 3110 mm |
| Overall length | 8550 mm |
| Gross vehicle weight | 18000kg |
| Curb weight | Not confirmed |
| Rated payload | 6430 kg |
| Overall dimensions | 8550×2480×3110 mm |
| Working system | Sweeping brushes, suction system and debris hopper |
| Final duty point | Confirm against the signed configuration and operating conditions |
Heavy-Duty Municipal Street Sweeper Truck should be assessed within the complete operating workflow. On routine sweeping routes, cleaning quality depends on coordinating vehicle speed, brush contact and suction airflow with the type and volume of debris.
Plan the route around lane width, turning space, disposal intervals and daily cleaning targets before selecting the final vehicle configuration. Exact sourced values and items requiring confirmation are kept in the structured sections below.
Core capabilities
Purpose-built working system
Sweeping brushes, suction system and debris hopper
Conditions: Final equipment configuration and duty point are confirmed.
Nominal carrying capacity
Source lists 7m³.
Conditions: Legal fill depends on final gross and axle weights.
Applications and operating fit
Street sweeping and debris collection
Suitable conditions
- Paved municipal roads
- Industrial parks and campuses
- Routes with planned debris disposal
Conditions requiring a different specification
- Unpaved tracks with large rocks
- Hazardous dust without approved filtration
- Sites outside verified vehicle clearance
Chassis and configuration
Frequently asked questions
What should be confirmed before quotation?
Confirm the required capacity, daily workload, site access, destination rules and final working-system performance. The source figures are configuration references, not guaranteed values.
Is the listed capacity the legal payload?
No. Nominal tank or body volume is not the same as legal payload. Permitted fill must be checked against final gross vehicle and axle weights.
Plan a project quotation
Information to provide
- Required capacity and daily workload
- Road, access and turning constraints
- Destination country and steering side
- Required working-system performance
- Applicable registration and compliance documents
Checks before quotation
- Confirm signed chassis and body specification
- Confirm legal gross and axle loads
- Confirm working-system duty point
- Confirm destination compliance and documents
- Confirm image and final build correspondence
