Street Sweeper Trucks

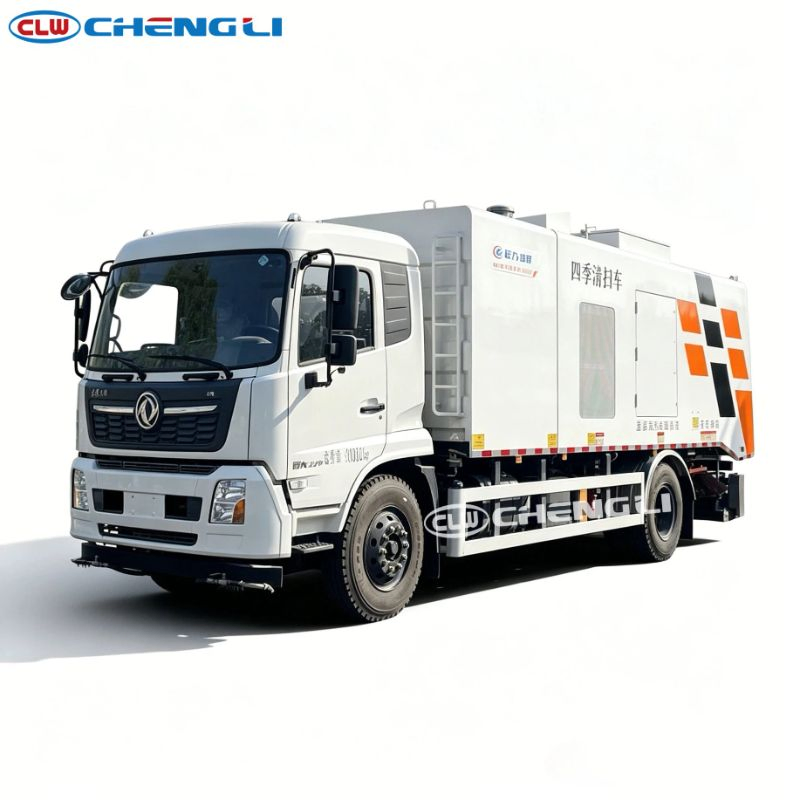

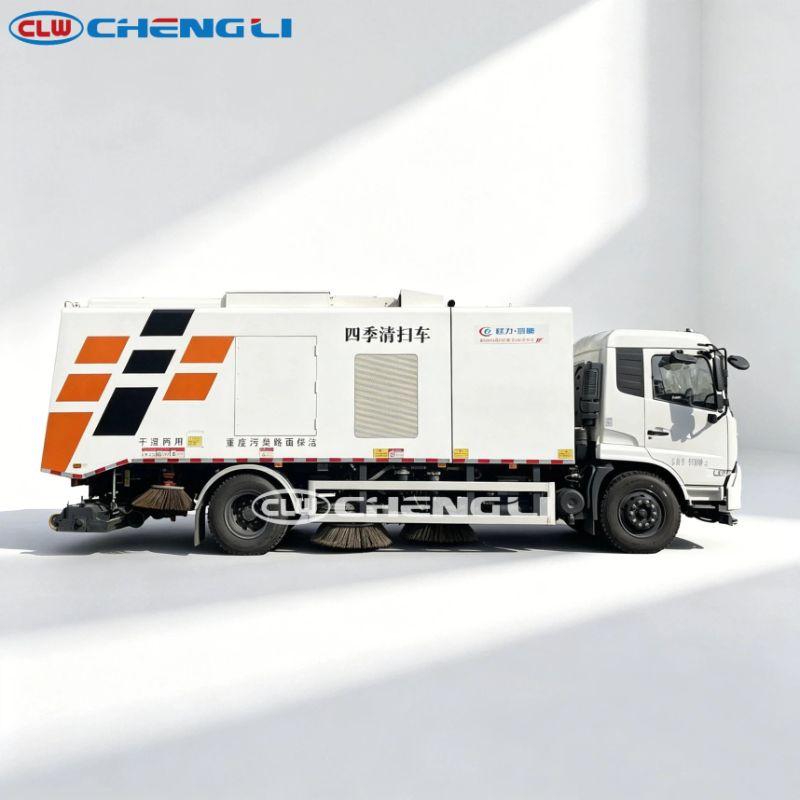

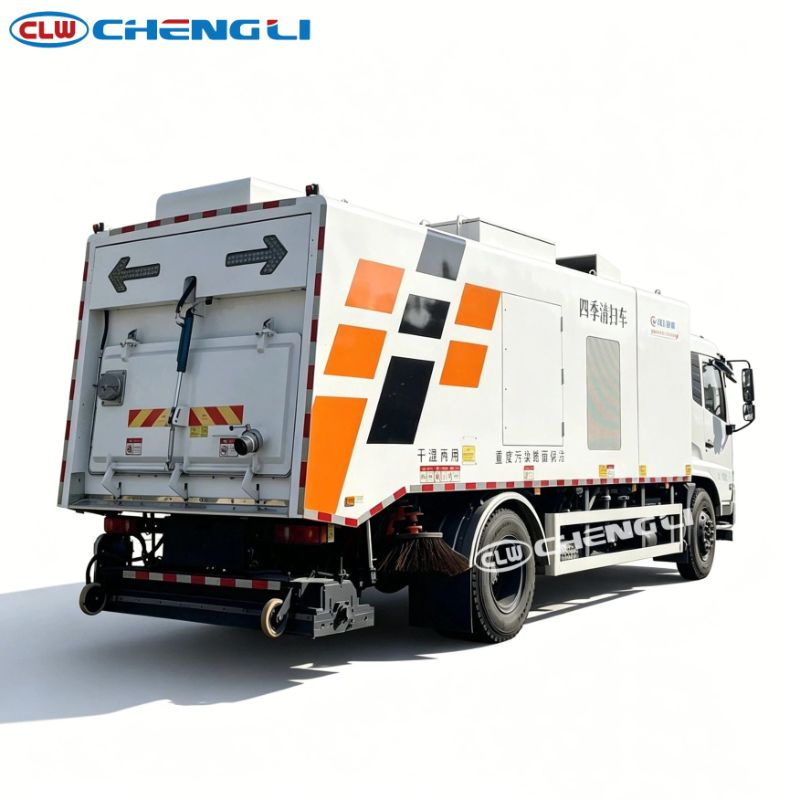

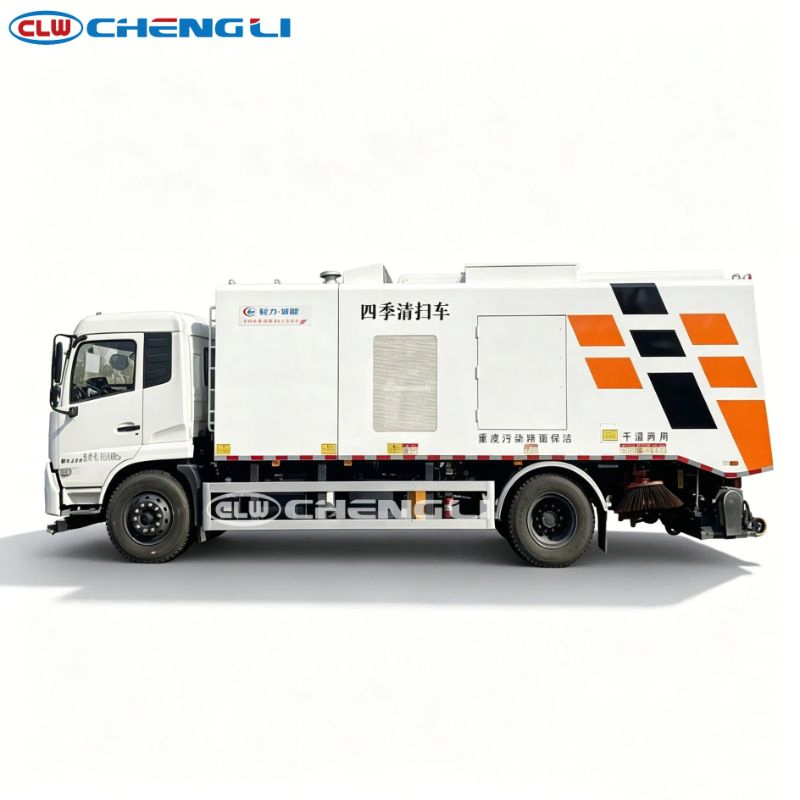

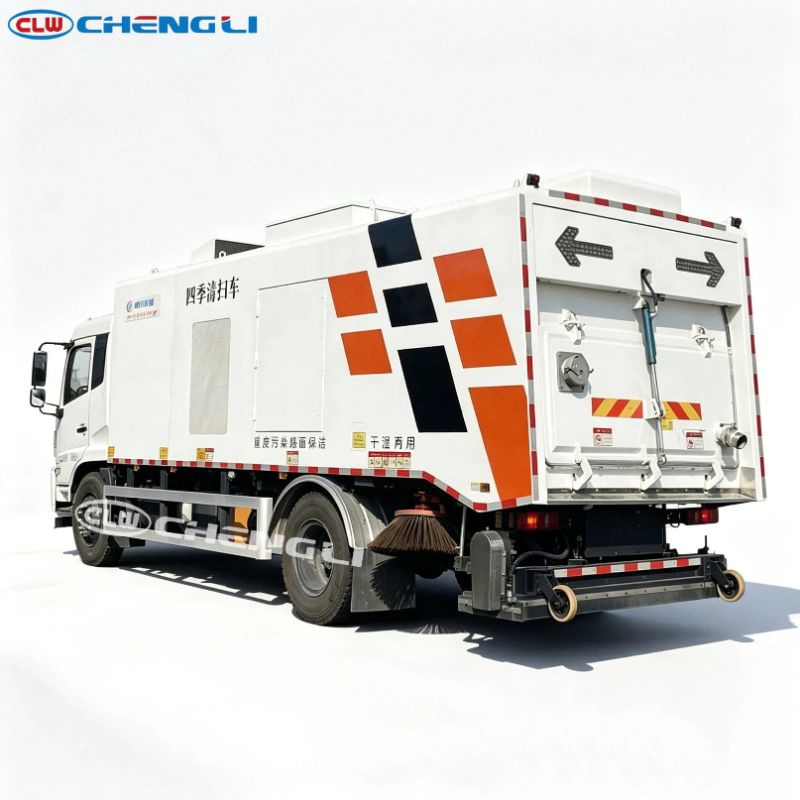

Dongfeng Tianjin CLW5188 Dry/Wet Road Sweeper
The Dongfeng Tianjin CLW5188 is a diesel road sweeper listed with an 11 m³ debris body and 6.5 m³ water tank. It suits planned paved-road and site-access sweeping where vehicle clearance, disposal access and water supply have been checked. Tank volumes describe compartments, not permitted simultaneous loads.
Product gallery
Technical specifications
| Water / debris capacity | 11 m³ debris body; 6.5 m³ water tank (nominal volumes) |
|---|---|
| Vehicle model | CLW5188 |
| Chassis brand | Dongfeng Tianjin |
| Drive layout | 4x2 |
| Fuel type | Diesel |
| Wheelbase | 5000 mm |
| Gross vehicle weight | 18000 kg |
| Debris body | 11 m³ indicative |
| Water tank | 6.5 m³ indicative |
| Cleaning mode | Dry and wet sweeping |
| Working speed | 3–25 km/h, indicative under unspecified conditions |
This vehicle combines mechanical sweeping with vacuum collection and water-assisted dust control. Confirm the chosen brush, filter and spray arrangement against the route surface and expected debris before ordering.
Core capabilities
Debris collection
11 m³ nominal debris compartment
Supports longer cleaning runs between disposal stops
Conditions: Actual usable load depends on debris density and axle limits
Water-assisted sweeping
6.5 m³ nominal water tank
Helps manage dust on suitable routes
Conditions: Water consumption and coverage depend on pump and nozzle settings
Working pace
3–25 km/h indicative sweeping speed
Allows route planning across different soiling levels
Conditions: Confirm on the final build and road surface
Applications and operating fit
Paved municipal roads, accessible industrial sites and construction-site approach roads with suitable debris disposal.
Suitable conditions
- Paved routes with access for the selected 18 t chassis
- Water source and debris-disposal point available
Conditions requiring a different specification
- Unpaved or obstacle-heavy routes without site review
- Loads exceeding signed gross or axle limits
Frequently asked questions
What are the listed compartment sizes?
11 m³ for debris and 6.5 m³ for water. These are nominal compartment volumes, not a promise that both can be filled to capacity together.
What sweeping speed is listed?
The indicative working-speed range is 3–25 km/h. Select a setting for the route surface and debris.
How far can it clean per fill?
A reliable distance needs water flow, active nozzles, debris loading and route conditions, which are not confirmed.
Plan a project quotation
Information to provide
- Destination country and drive side
- Route or site dimensions and surface
- Daily work volume and available water or disposal point
- Required equipment and quantity
Checks before quotation
- Confirm final curb mass and permitted water/debris loads
- Confirm brush and filtration configuration
- Confirm destination documents and commercial terms
