CLW CL5184CFSBEV 18 t Electric Road Sweeper

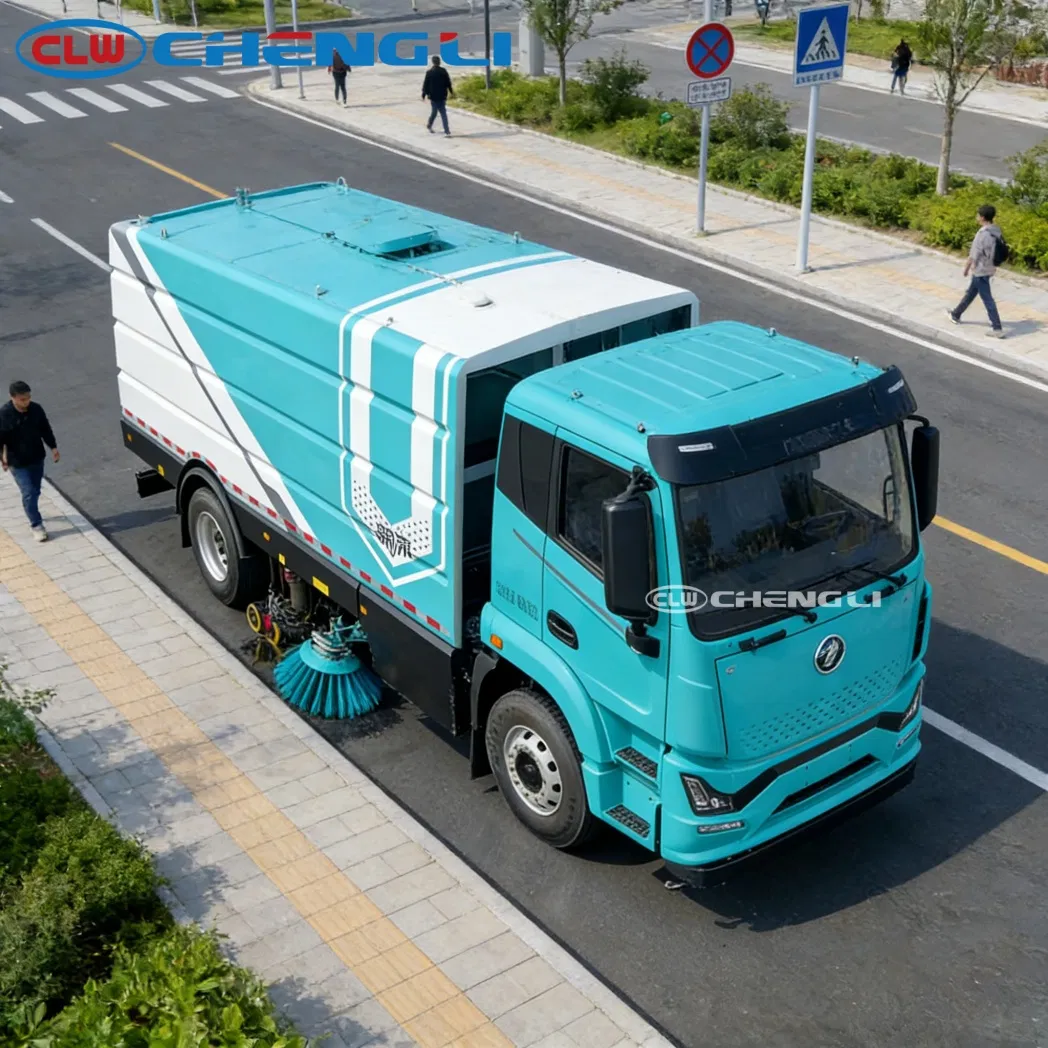

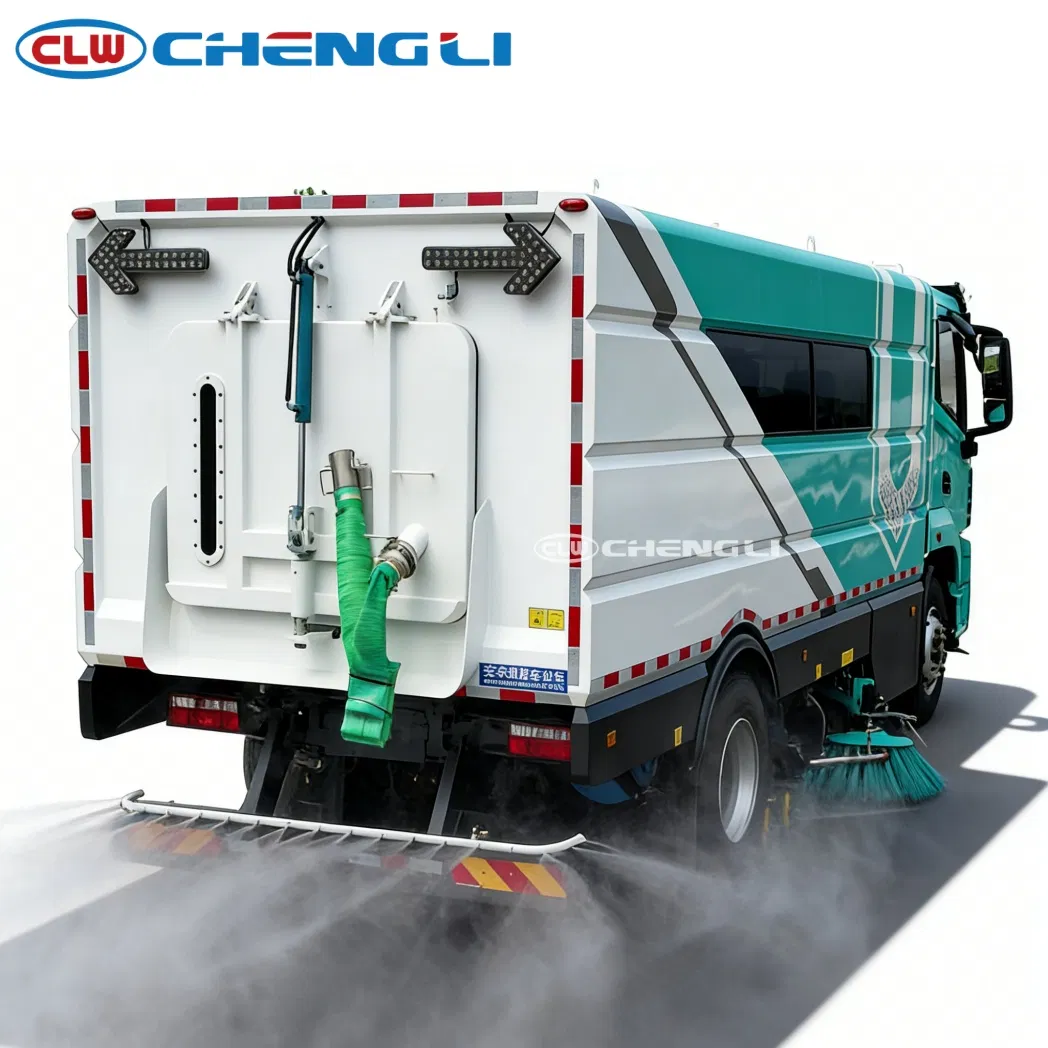

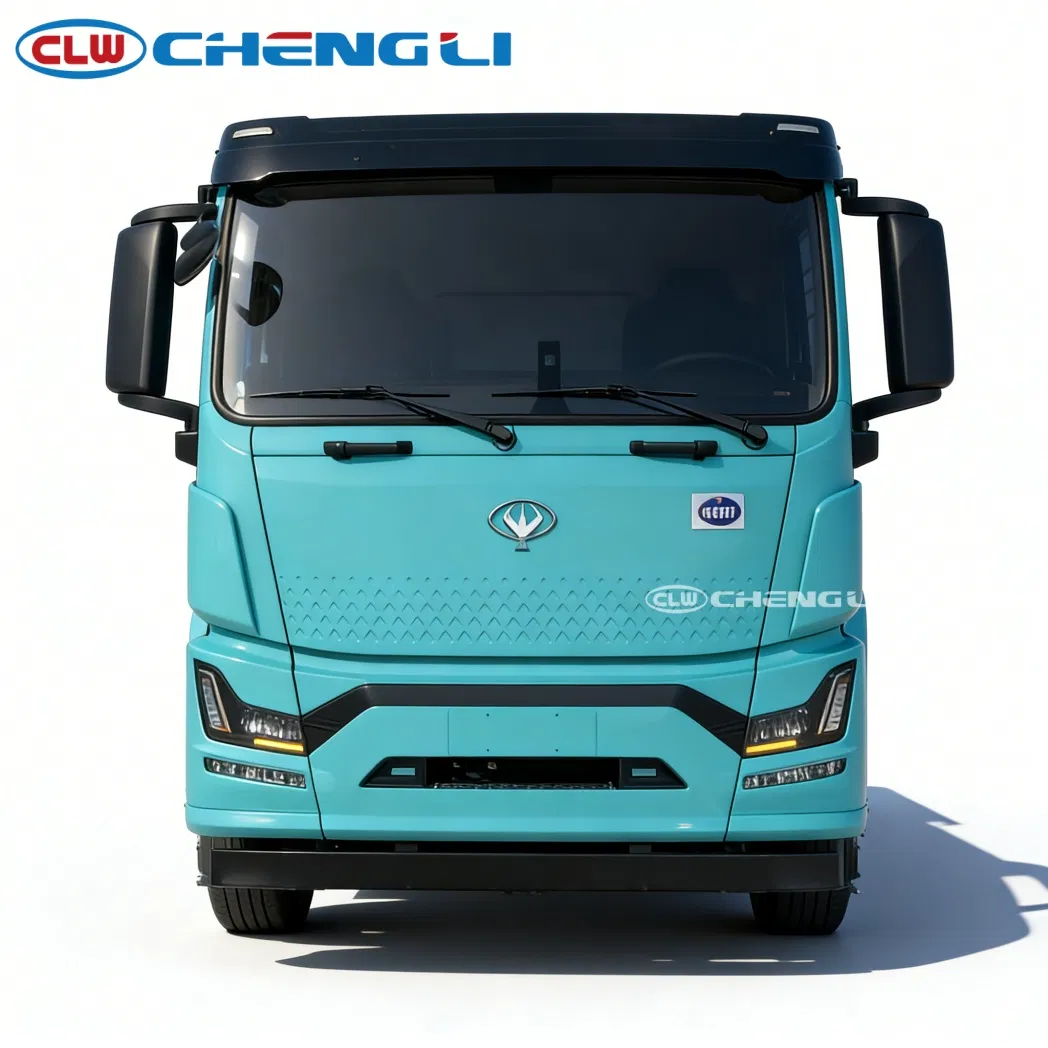

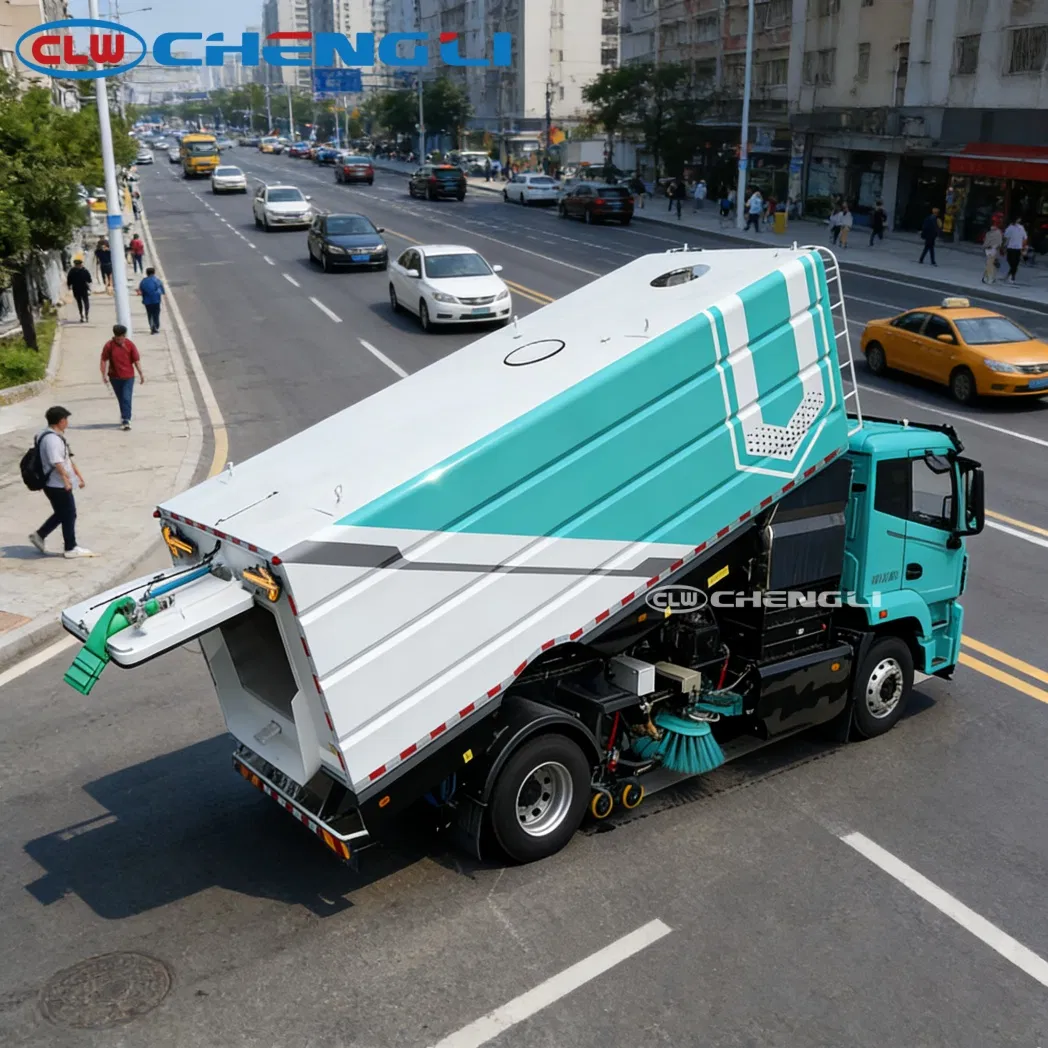

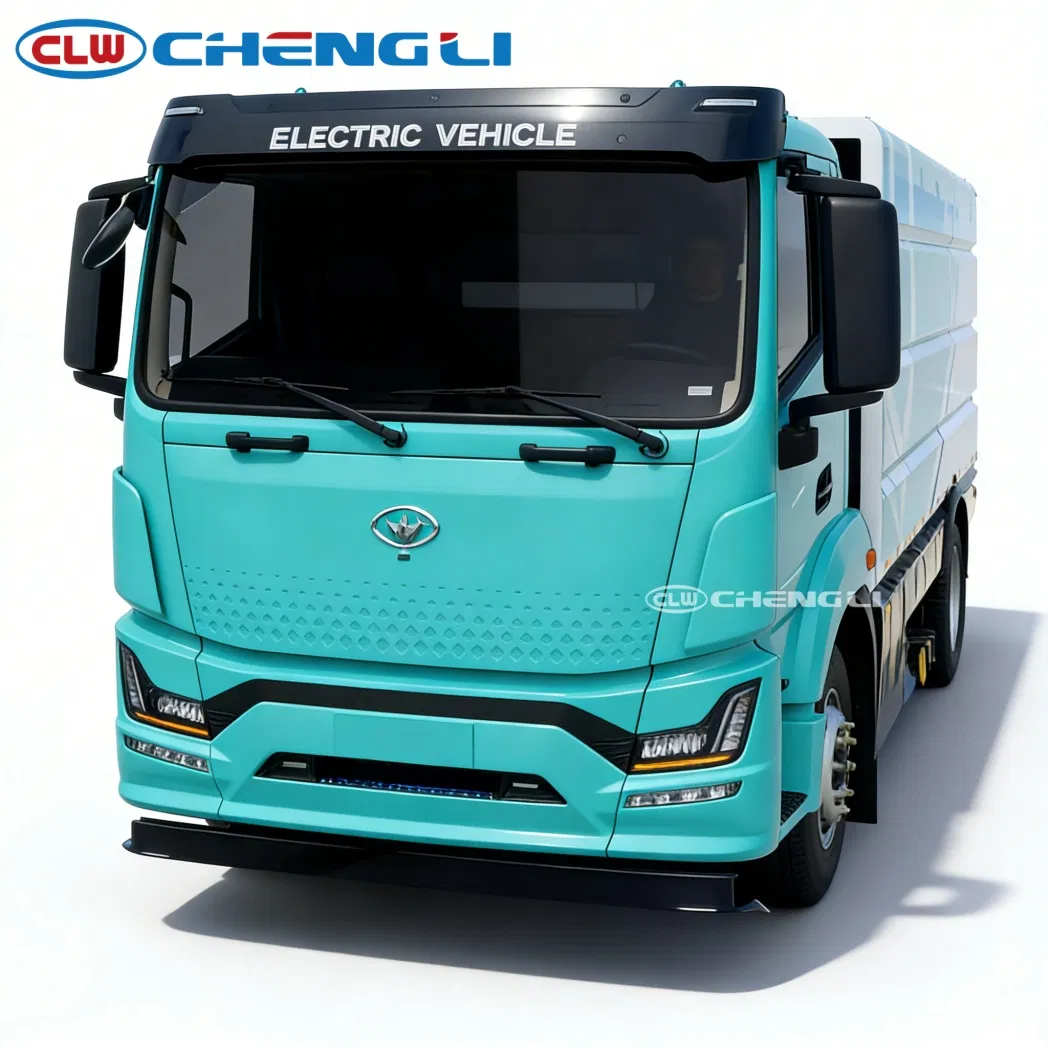

The CLW CL5184CFSBEV is an 18 t battery-electric road sweeper for accessible urban routes. Its indicative configuration includes a 231.07 kWh lithium iron phosphate battery, up to 3.5 m cleaning width, and separate clean-water and debris compartments. Route range and permitted load depend on the final build.
Product gallery
Technical specifications
| Water / debris capacity | 8.9 m³ clean-water tank; 8.6 m³ debris tank (nominal, indicative) |
|---|---|
| Vehicle model | CL5184CFSBEV |
| Chassis brand | CLW |
| Drive layout | 4x2 |
| Fuel type | Electric |
| Gross vehicle weight | 18000 kg |
| Clean-water tank | 8.9 m³ indicative |
| Debris tank | 8.6 m³ indicative |
| Cleaning speed | 3–20 km/h indicative |
| Maximum cleaning width | 3500 mm indicative |
Its electric drive and integrated sweeping body can support planned municipal cleaning rounds. Match the sweeping width, charging window and disposal access to the actual route before selecting the final configuration.
Core capabilities
Cleaning width
Up to 3.5 m indicative
Helps estimate passes on a known road width
Conditions: Actual overlap and edge conditions must be allowed for
Separate compartments
8.9 m³ water and 8.6 m³ debris nominal volumes
Supports wet sweeping and debris collection
Conditions: Gross and axle limits prevent assuming both compartments can be filled together
Battery system
231.07 kWh LFP indicative
Provides a basis for charging planning
Conditions: Operating range needs route energy and auxiliary-load data
Applications and operating fit
Paved municipal roads and accessible urban sanitation routes with charging, water and disposal infrastructure.
Suitable conditions
- Paved routes with charging plan
- Access suitable for an 18 t truck
Conditions requiring a different specification
- Routes without charging or service access
- Assumed full water plus full debris loads without axle assessment
Chassis and configuration
Battery electric; 231.07 kWh LFP battery indicative
Frequently asked questions
What is the listed maximum cleaning width?
3,500 mm. Effective passes depend on overlap and edge conditions.
What battery size is listed?
231.07 kWh of lithium iron phosphate storage; range cannot be guaranteed from capacity alone.
Can both tanks be filled to their nominal volumes?
Do not assume so. The final legal gross and axle loads must be checked.
Plan a project quotation
Information to provide
- Destination country and drive side
- Route or site dimensions and surface
- Daily work volume and available water or disposal point
- Required equipment and quantity
Checks before quotation
- Verify final battery and charger interface
- Obtain signed loading and axle statement
- Confirm cleaning width, drive side and destination documents
