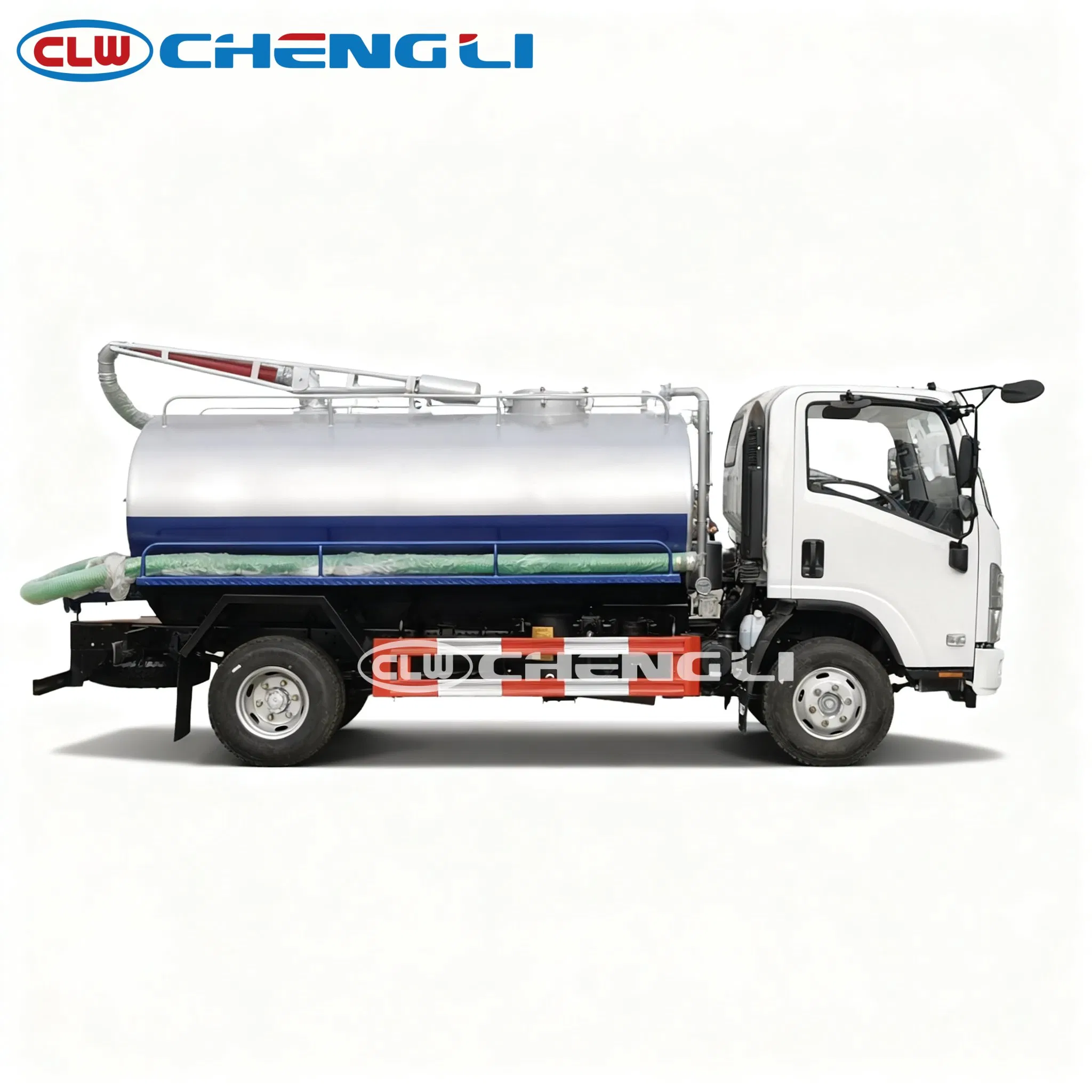

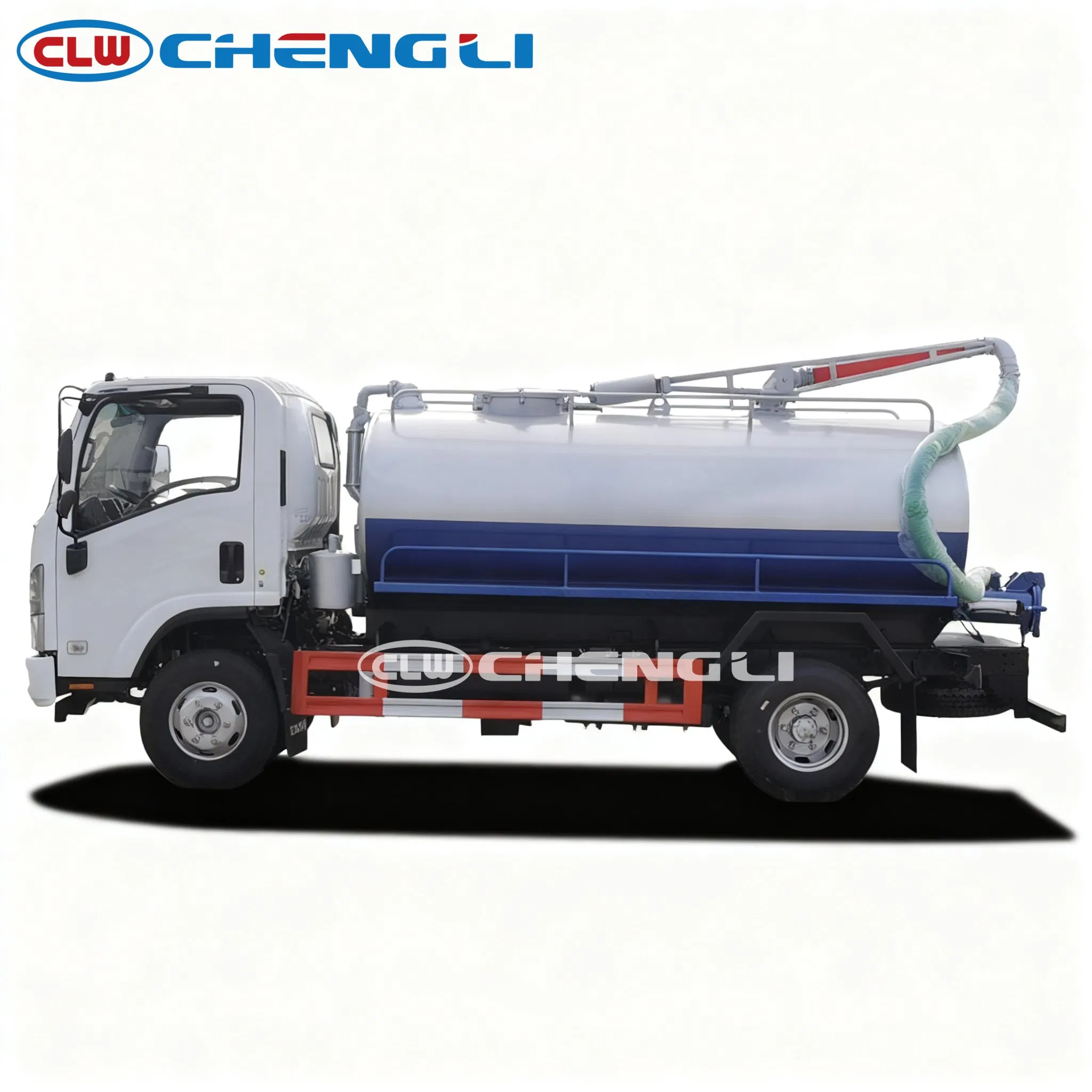

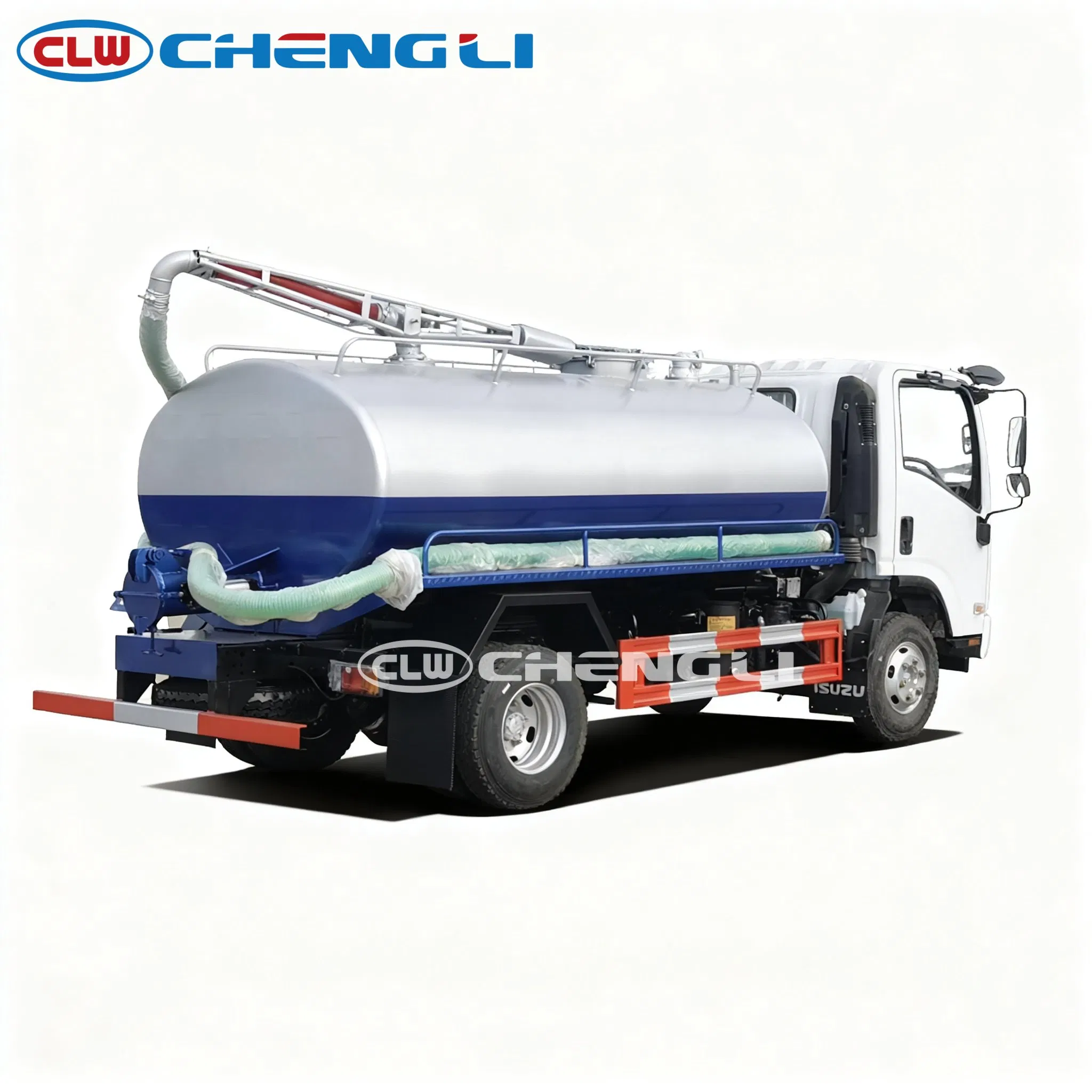

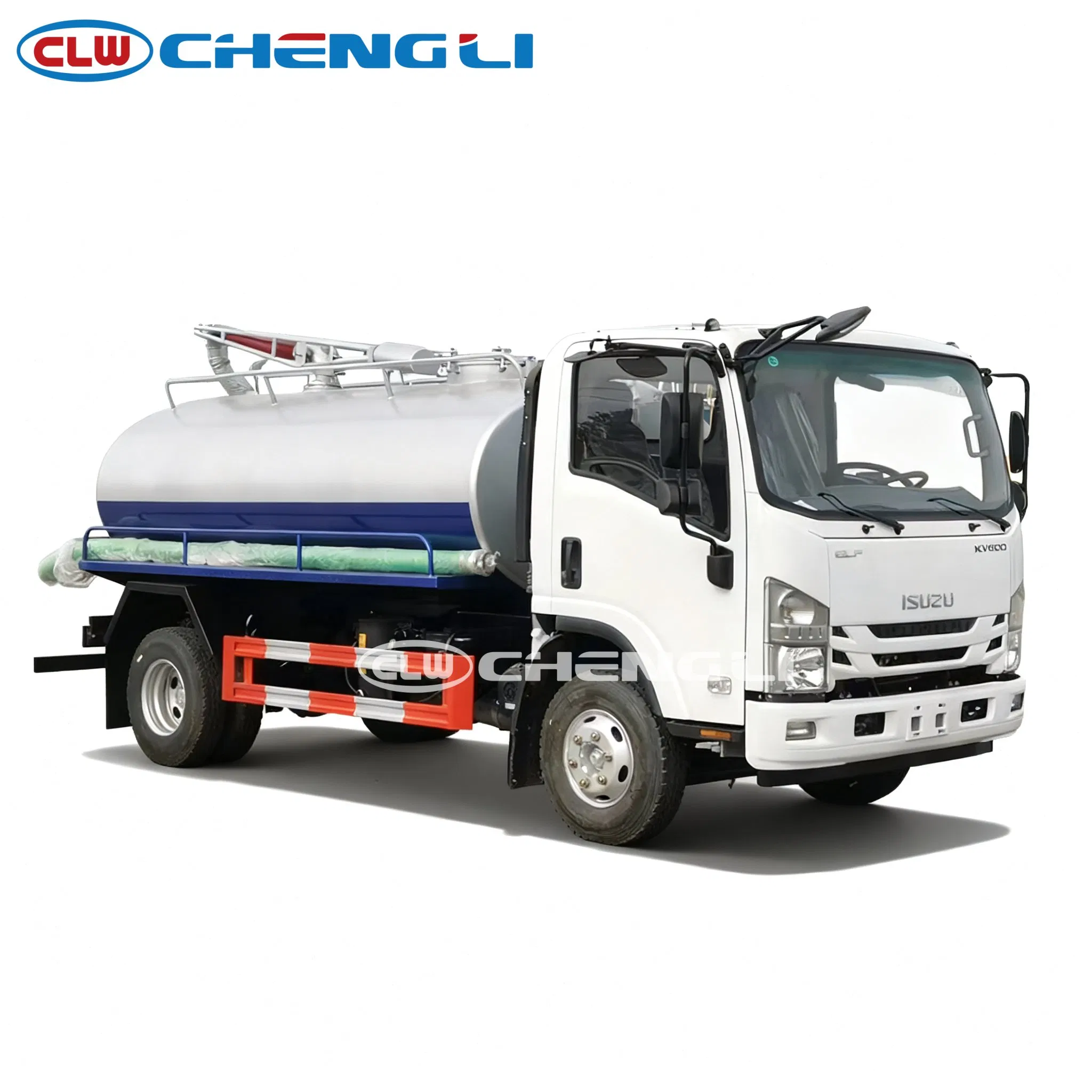

Isuzu 6 m³ 4x2 Vacuum Sewage Suction Truck
Isuzu 6 m³ 4x2 Vacuum Sewage Suction Truck is configured for septic, sludge and wastewater suction. Source specifications describe the principal chassis and working system; final axle loads, dimensions, pump or lifting duty, destination compliance and optional equipment must be confirmed against the signed build sheet before quotation.
Product gallery
Technical specifications
| Vacuum tank capacity | Source-listed nominal capacity: 6000 |
|---|---|
| Vehicle model | CLW5080GXE |
| Chassis brand | Isuzu |
| Drive layout | 4X2 |
| Fuel type | Diesel |
| Transmission | Manual |
| Wheelbase | 3300 mm |
| Gross vehicle weight | 8270 kg |
| Overall width | 2080 mm |
| Overall height | 2640 mm |
| Overall length | 5995 mm |
| Gross vehicle weight | 8270 Kg |
| Curb weight | 3895, 4095 |
| Rated payload | 1t |
| Overall dimensions | 5995×2080×2640 |
| Working system | Vacuum pump, sewage tank and discharge system |
| Final duty point | Confirm against the signed configuration and operating conditions |
Isuzu 6 m³ 4x2 Vacuum Sewage Suction Truck should be assessed within the complete operating workflow. Vacuum collection work should be planned around access to the service point, hose routing and the approved discharge destination.
Material characteristics and the required working depth should be reviewed before the pump and tank arrangement is finalized. Exact sourced values and items requiring confirmation are kept in the structured sections below.
Core capabilities
Purpose-built working system
Vacuum pump, sewage tank and discharge system
Conditions: Final equipment configuration and duty point are confirmed.
Nominal carrying capacity
Source lists 6000.
Conditions: Legal fill depends on final gross and axle weights.
Applications and operating fit
Septic, sludge and wastewater suction
Suitable conditions
- Septic tank emptying
- Drain and sump cleaning
- Municipal liquid-waste collection
Conditions requiring a different specification
- Hazardous waste without material approval
- Work beyond verified suction depth
- Discharge without an approved reception point
Chassis and configuration
Frequently asked questions
What should be confirmed before quotation?
Confirm the required capacity, daily workload, site access, destination rules and final working-system performance. The source figures are configuration references, not guaranteed values.
Is the listed capacity the legal payload?
No. Nominal tank or body volume is not the same as legal payload. Permitted fill must be checked against final gross vehicle and axle weights.
Plan a project quotation
Information to provide
- Required capacity and daily workload
- Road, access and turning constraints
- Destination country and steering side
- Required working-system performance
- Applicable registration and compliance documents
Checks before quotation
- Confirm signed chassis and body specification
- Confirm legal gross and axle loads
- Confirm working-system duty point
- Confirm destination compliance and documents
- Confirm image and final build correspondence
