Sewage Suction Trucks

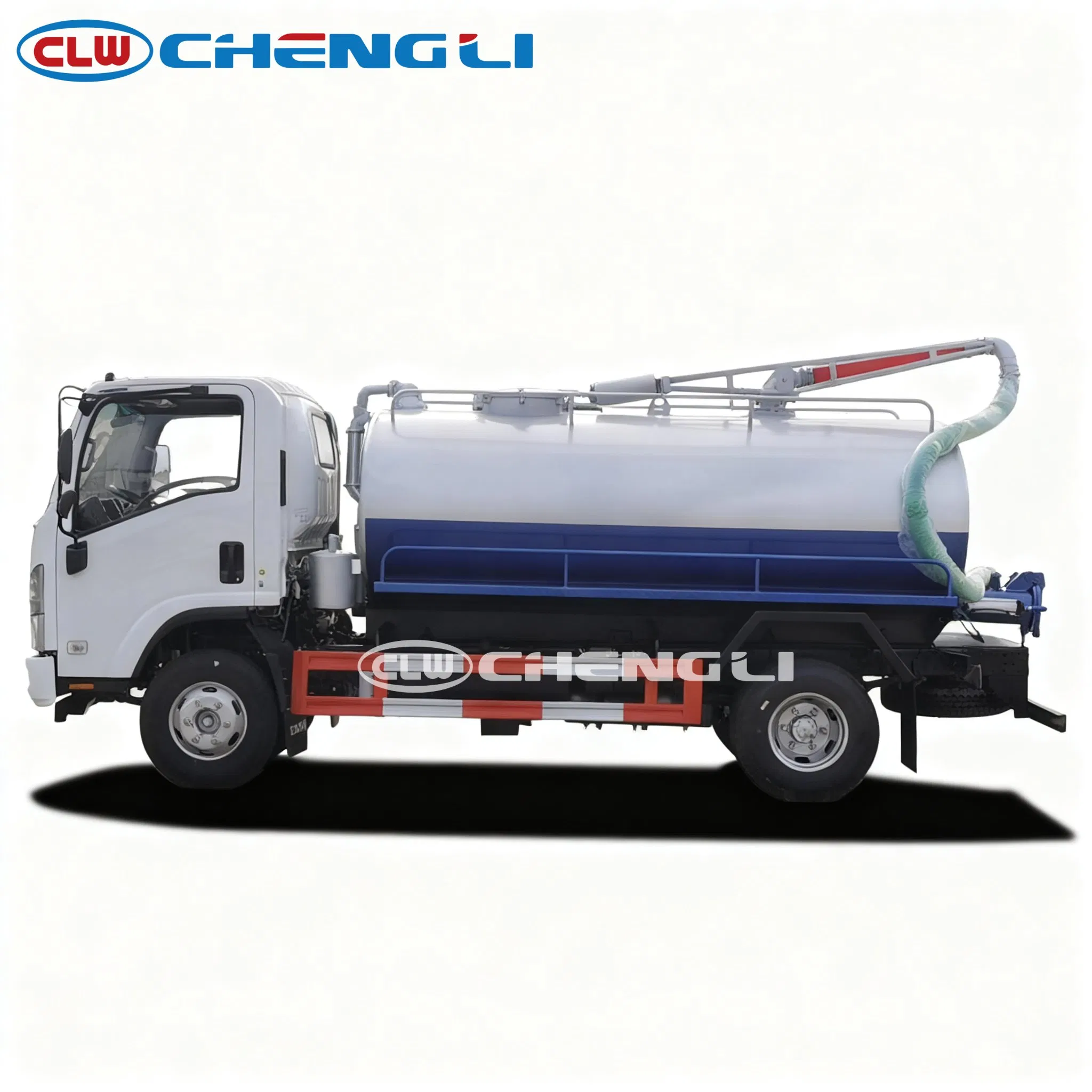

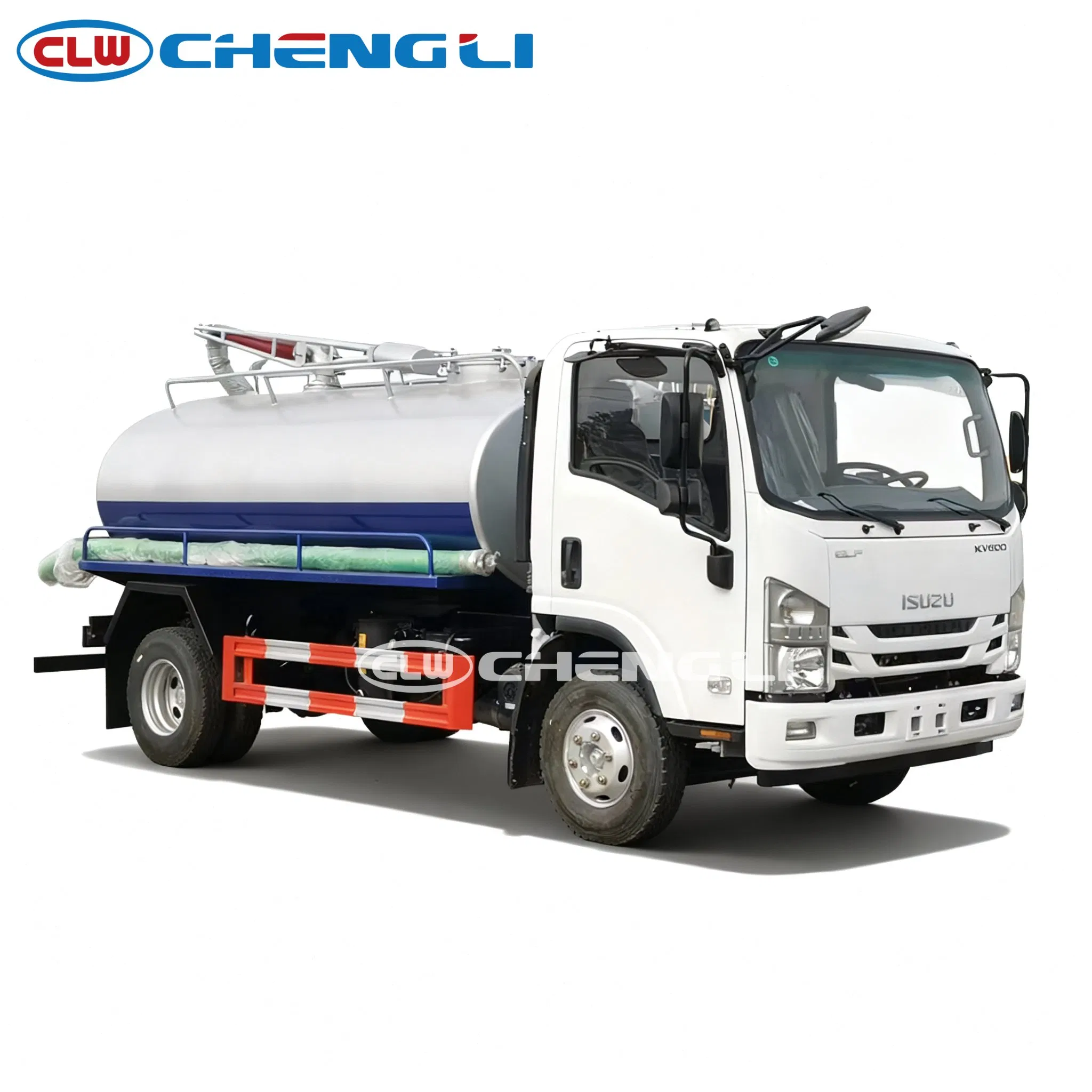

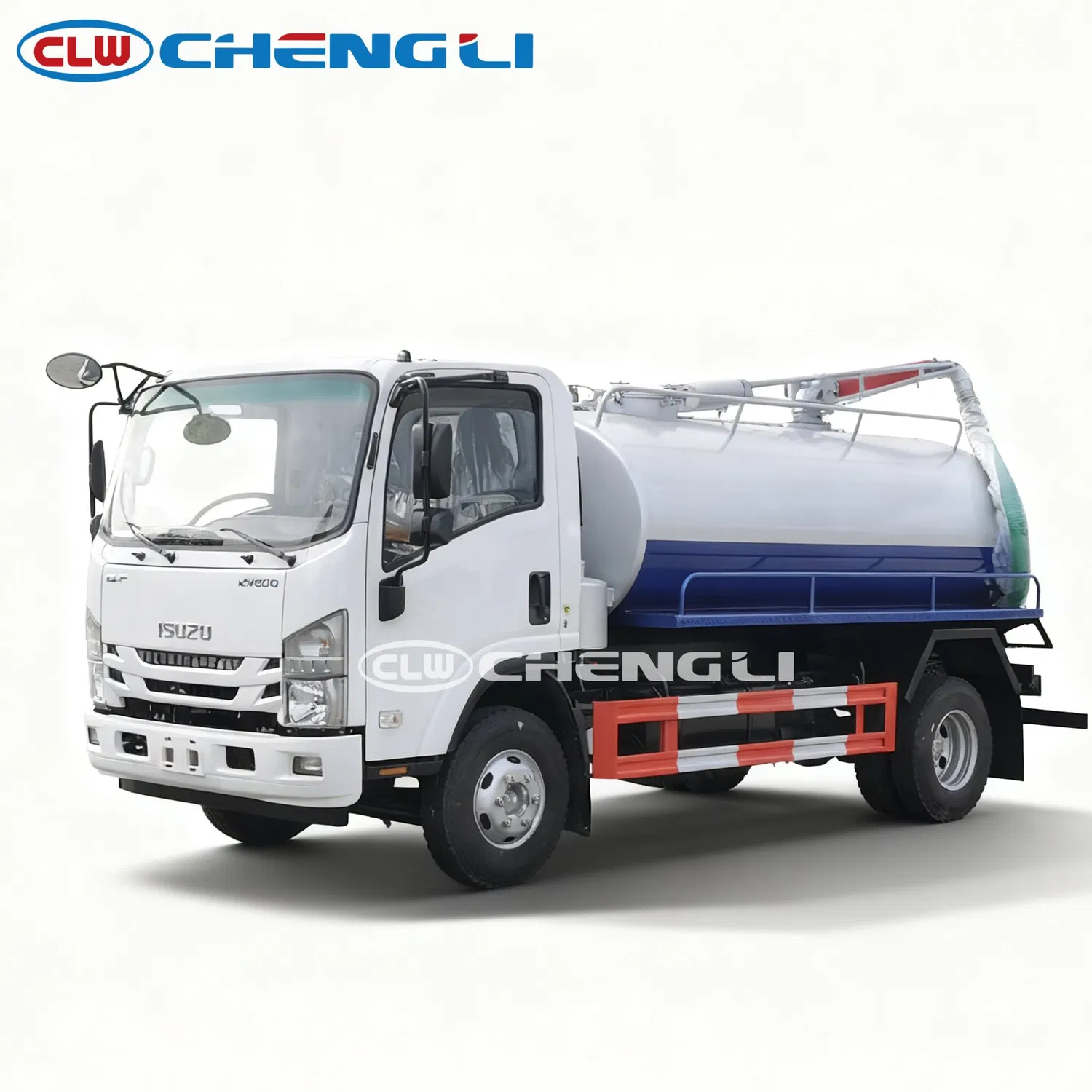

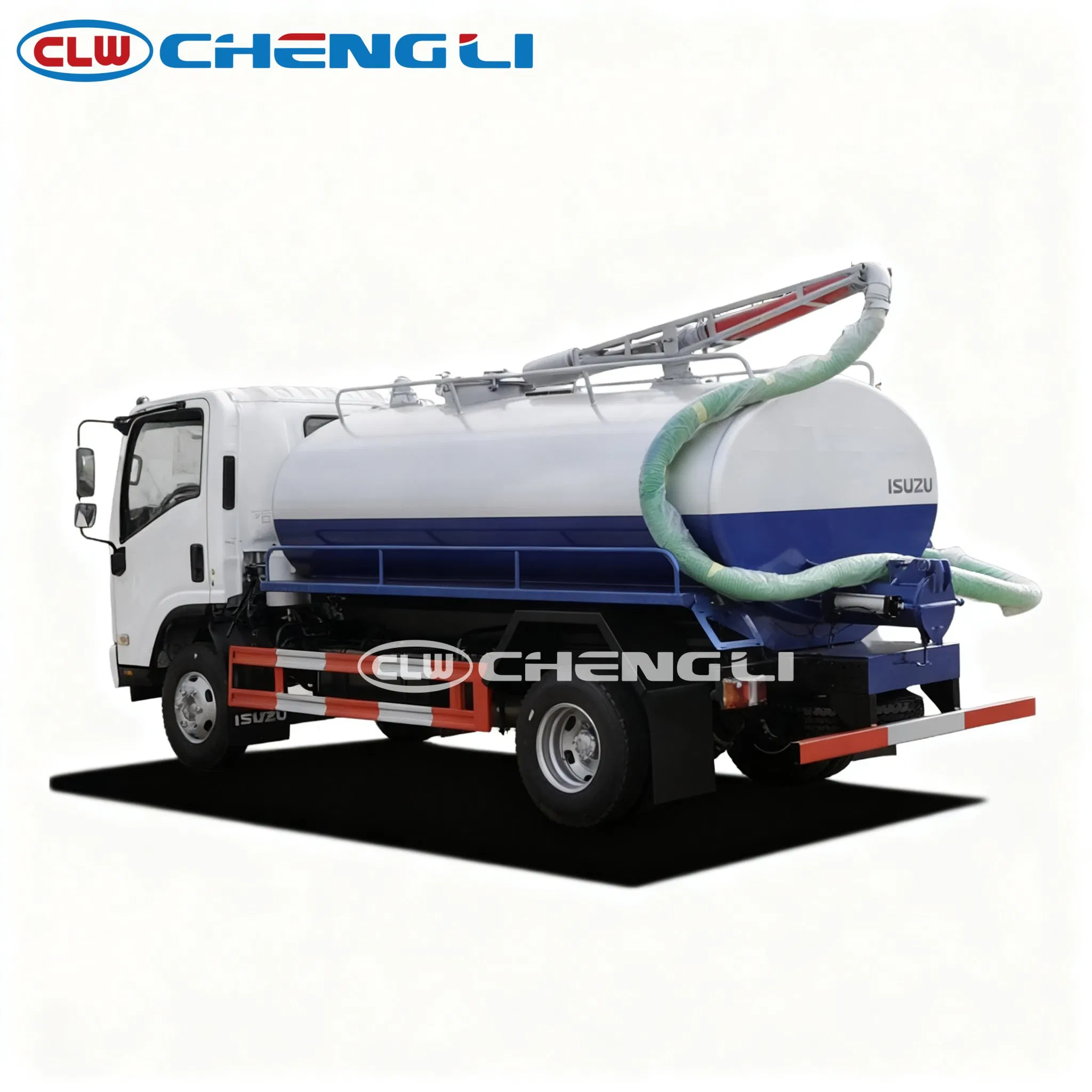

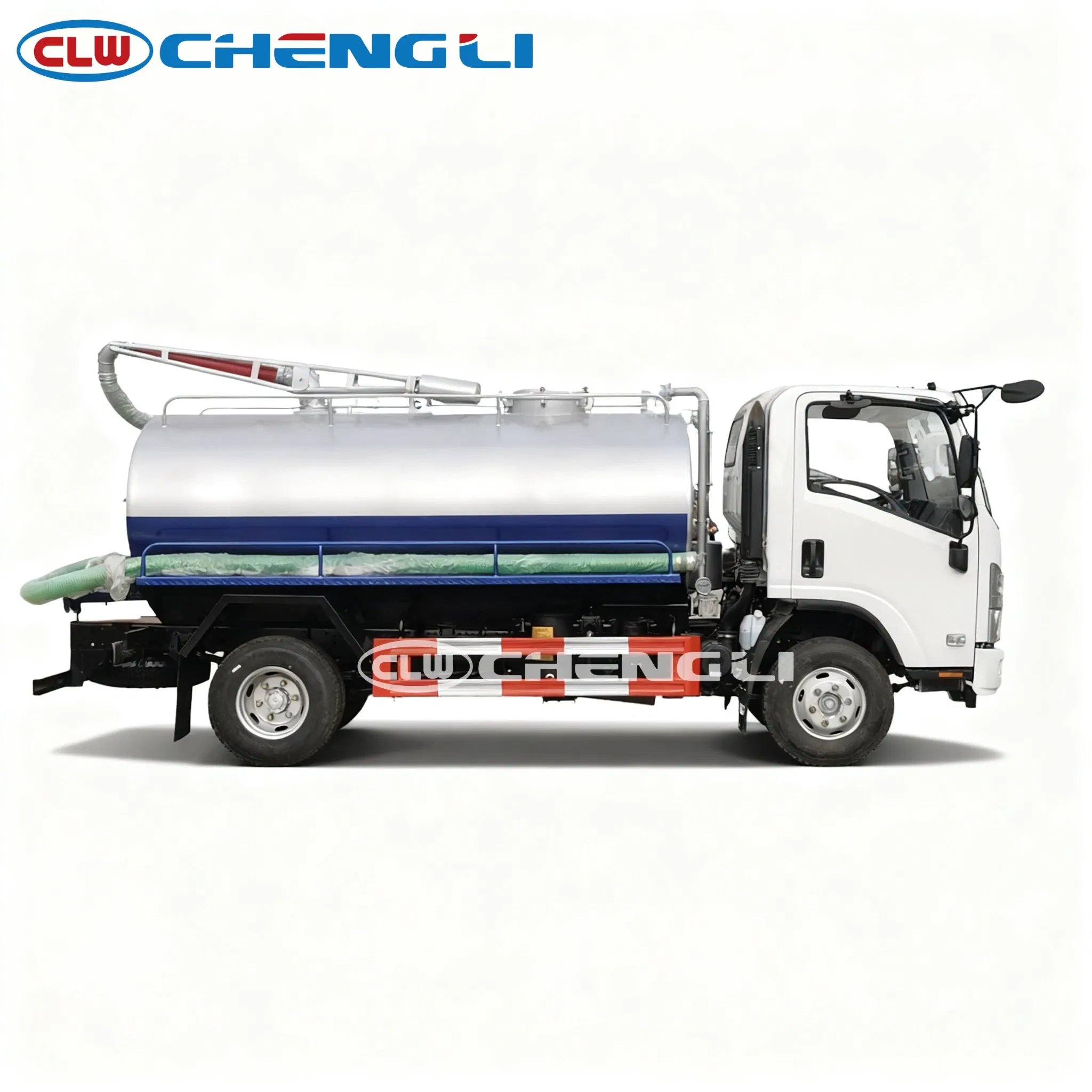

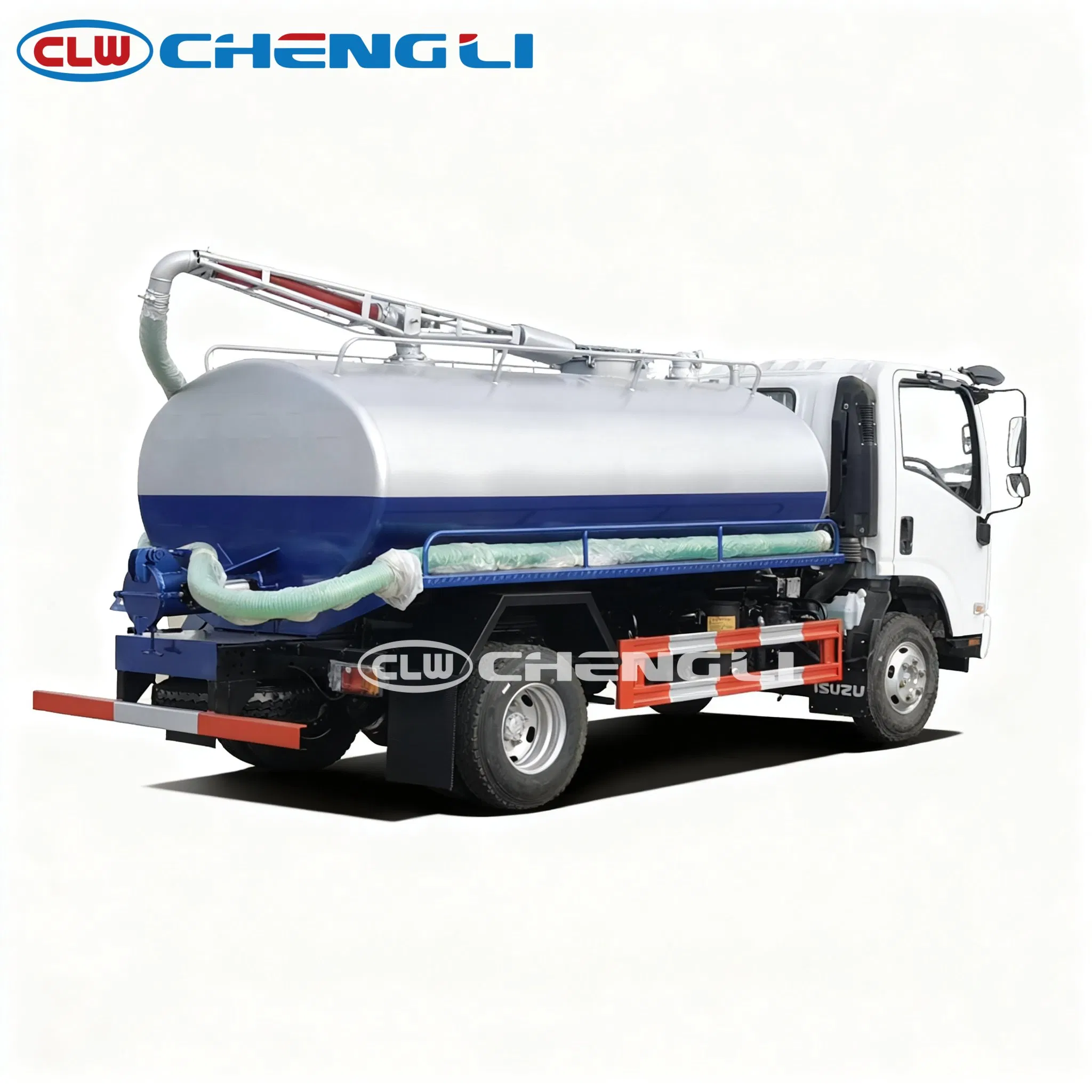

Isuzu 6m3 4x2 Vacuum Sewage Suction Truck
A compact 6,000 litre vacuum sewage truck on a light-duty Isuzu-type 4x2 chassis. The vehicle is intended for septic tanks, drainage pits, manure and liquid-waste collection where urban access, straightforward manual controls and a moderate tank size are important.
Product gallery
Technical specifications
| Vacuum tank capacity | 6,000 L vacuum tank |
|---|---|
| Drive layout | 4x2 |
| Fuel type | Diesel |
| GVW | 8,270 kg |
| Curb-weight options | 3,895 / 4,095 kg |
| Overall dimensions | 5,995 x 2,080 x 2,640 mm |
| Wheelbase | 3,300 mm |
| Maximum speed | 88 km/h |
| Model code | CLW5080GXE |
| Tank material | Q235 carbon steel with indicative anti-rust treatment |
| Controls | Manual plus electrical |
| Standard fittings | Anti-overflow valve, pressure gauge, sight glass, work and warning lights |
This vacuum truck is intended for collecting liquid waste from accessible pits and tanks. The work plan should match hose access, receiving facilities and cleaning requirements to the selected vacuum and tank arrangement.
Core capabilities
Compact vacuum collection
6 m3 tank suits urban and rural collection routes.
Overflow monitoring
Specification lists an anti-overflow valve, gauge and liquid sight glass.
Cleaning option
High-pressure pump, hose reel and clean-water tank are optional.
Applications and operating fit
Septic, sludge and liquid-waste collection
Suitable conditions
- Septic tank emptying
- Drainage pit service
- Manure and sludge transport
- Restricted urban routes
Conditions requiring a different specification
- Hazardous chemicals without compatible tank
- Dry bulk material
- Deep suction without pump verification
- Loads exceeding legal axle limits
Chassis and configuration
Configuration choices
- Adding a clean-water tank and high-pressure system reduces available volume and payload. Engine, emission and tyre choices are alternatives and must be fixed in one build sheet.
Frequently asked questions
What is this vehicle designed to do?
Septic, sludge and liquid-waste collection.
What is the main capacity or working size?
6,000 L vacuum tank. Final usable capacity and legal payload depend on the signed configuration and destination rules.
Which operating conditions suit this vehicle?
Typical suitable conditions include: Septic tank emptying, Drainage pit service, Manure and sludge transport.
Which specifications must be confirmed before ordering?
Confirm one chassis, drive side, powertrain, emission configuration, body or work-system drawing, axle weights and destination document list.
What information is needed for a quotation?
Waste composition, Required suction depth, Hose length, Disposal distance, Need for high-pressure cleaning, Drive side, Destination port.
Plan a project quotation
Information to provide
- Waste composition
- Required suction depth
- Hose length
- Disposal distance
- Need for high-pressure cleaning
- Drive side
- Destination port
Checks before quotation
- One fixed chassis and powertrain
- Approved body or work-system drawing
- Axle and gross weight statement
- Destination compliance document list
