Sewage Suction Trucks
Foton 2.2 m³ Mini Vacuum Sewage Suction Truck
This Foton 4x2 mini vacuum truck has a nominal 2,200 L Q235 steel tank for septic and liquid-waste collection at smaller accessible sites. Its compact format may suit community service routes after road and turning clearance are measured. Tank volume does not establish permitted waste payload.

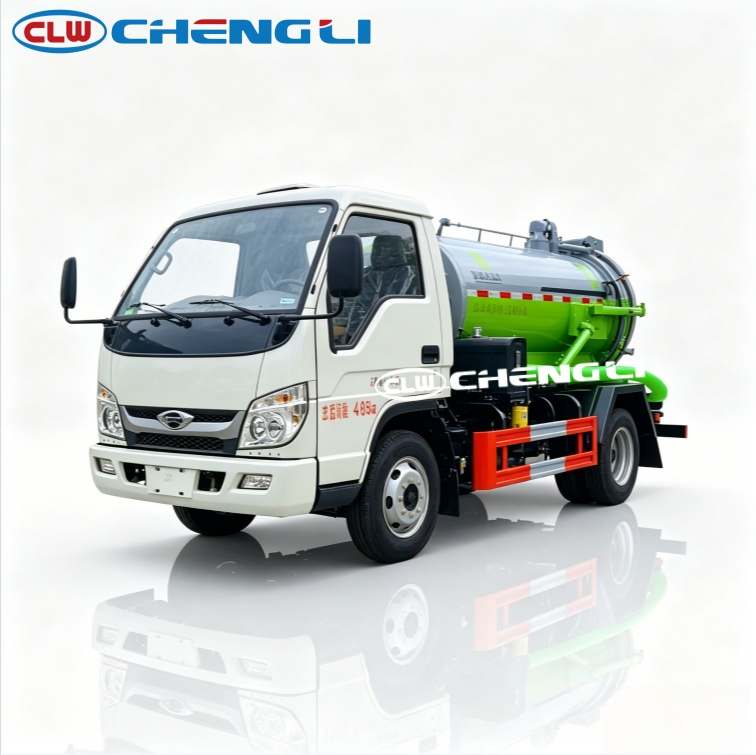

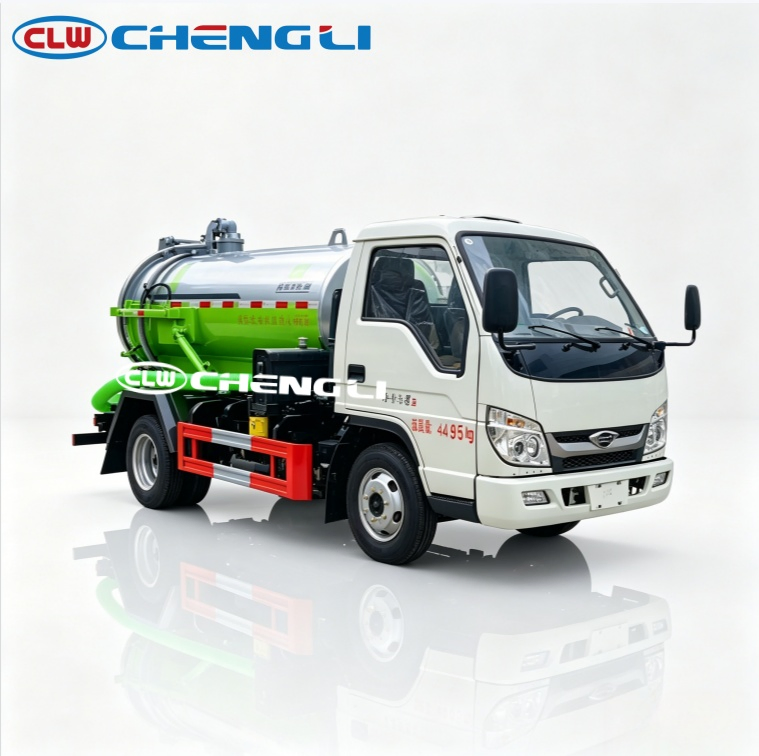

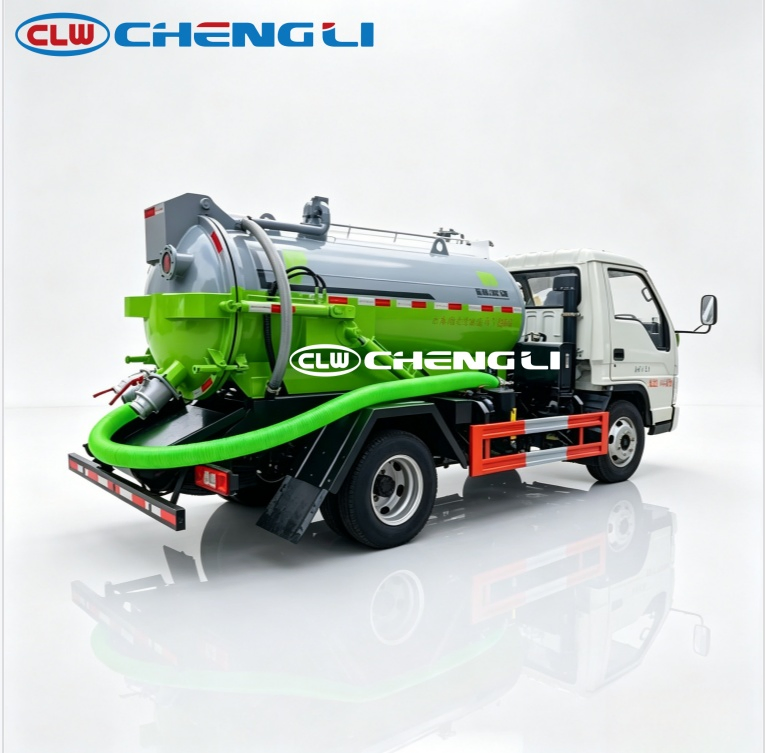

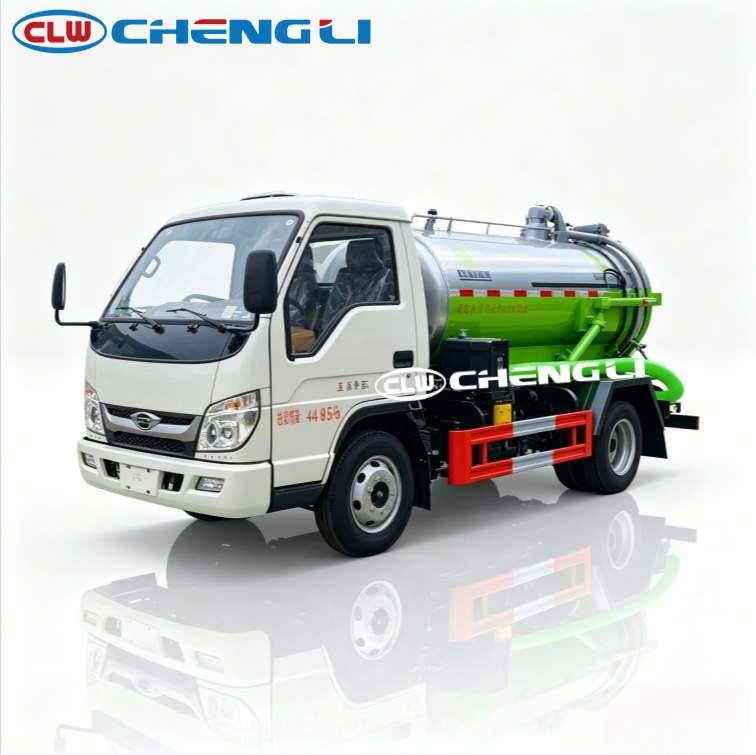

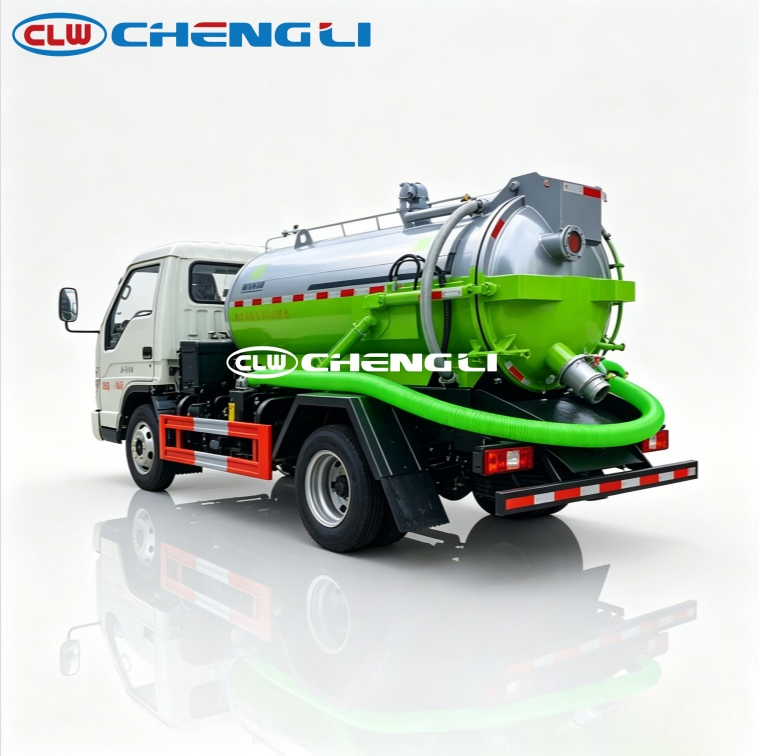

Product gallery
Technical specifications
| Vacuum tank capacity | 2,200 L (2.2 m³) nominal vacuum tank |
|---|---|
| Chassis brand | Foton |
| Drive layout | 4x2 |
| Fuel type | Diesel |
| Gross vehicle weight | 4495 kg |
| Tank material | Q235 carbon steel with anti-rust treatment |
| Vacuum tank | 2,200 L indicative |
| Optional cleaning | High-pressure pump and hose reel, option to confirm |
| Standard fittings | Anti-overflow valve, pressure gauge, sight glass and warning lights, indicative |
An overflow valve, pressure gauge and sight glass are described for this configuration; a high-pressure cleaning package is an option to confirm. Check hose access, waste compatibility and receiving arrangements before specifying the vehicle.
Core capabilities
Compact collection
2,200 L nominal tank
Supports small-pit and community collection planning
Conditions: Permitted waste mass depends on density and axle limits
Tank monitoring
Overflow valve, pressure gauge and sight glass
Helps monitor the collection process
Conditions: Confirm final equipment specification
Cleaning option
High-pressure pump and hose reel listed as optional
Can add washdown capability if specified
Conditions: Requires selected pump and water arrangement
Applications and operating fit
Accessible community septic pits, drainage pits and rural sanitation collection points.
Suitable conditions
- Routes with measured access for the final vehicle
- Approved liquid-waste receiving facility
Conditions requiring a different specification
- Hazardous liquids without material review
- Assumed full 2,200 L waste load without gross/axle check
Frequently asked questions
What is the listed tank size?
2,200 L (2.2 m³) nominal. Confirm the permitted waste mass for the final build.
Is high-pressure cleaning included?
A high-pressure pump and hose reel are available options; confirm inclusion in the quotation.
Will it fit a narrow road?
Measure lane width and turning clearance, then confirm the selected wheelbase on the final drawing.
Plan a project quotation
Information to provide
- Destination country and drive side
- Route or site dimensions and surface
- Daily work volume and available water or disposal point
- Required equipment and quantity
Checks before quotation
- Confirm final wheelbase and overall dimensions
- Confirm pump rating, hose reach and waste density
- Confirm permitted waste load and destination documents
