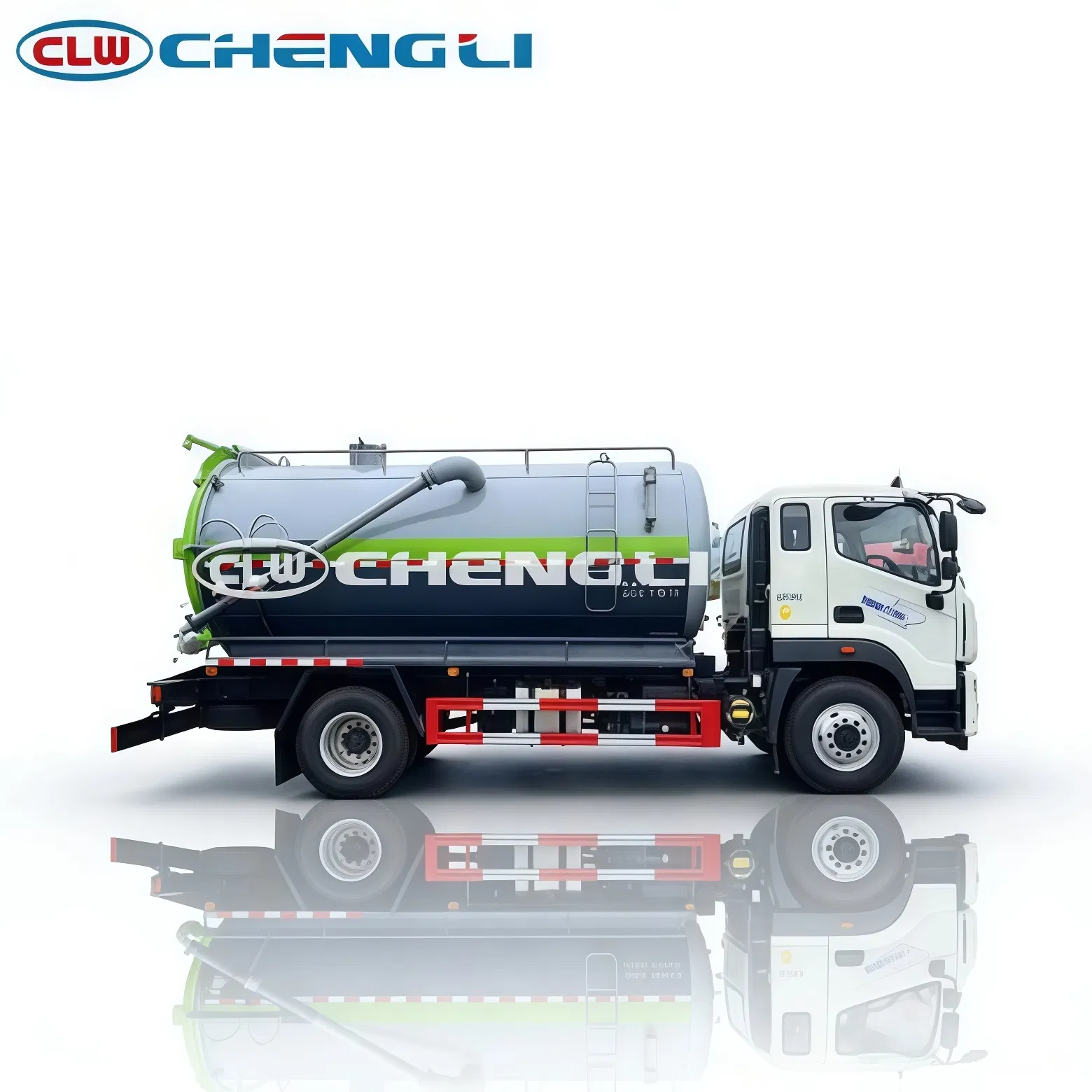

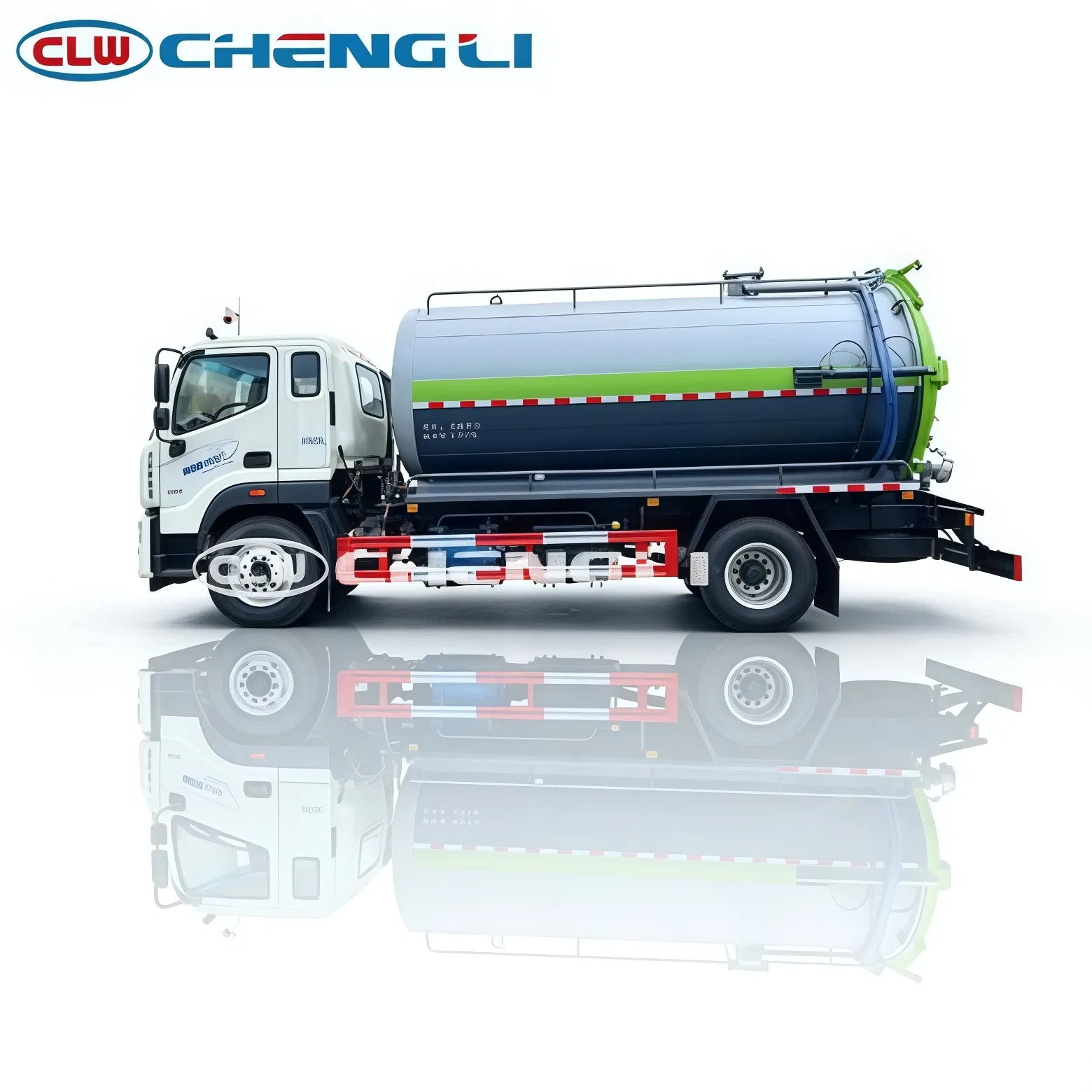

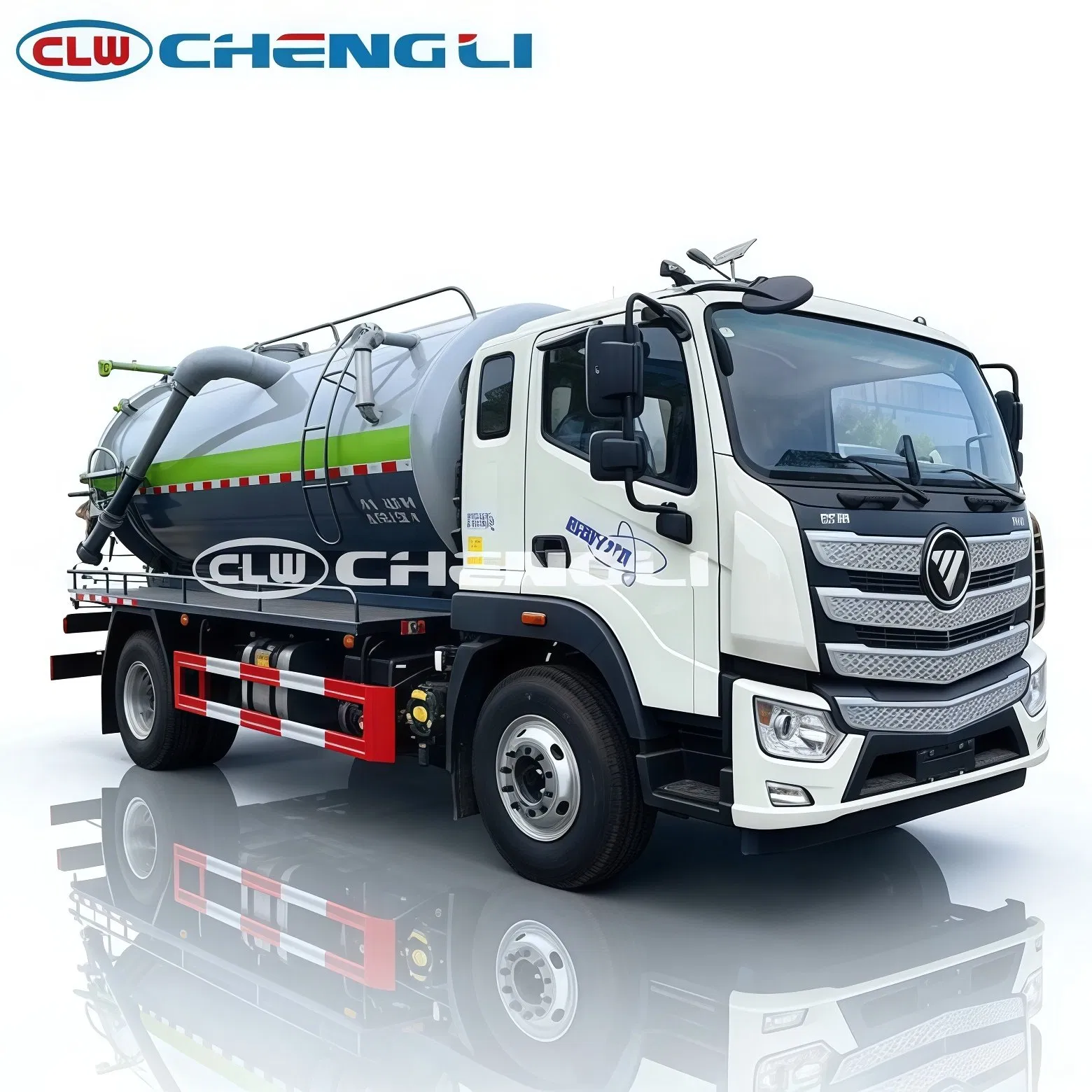

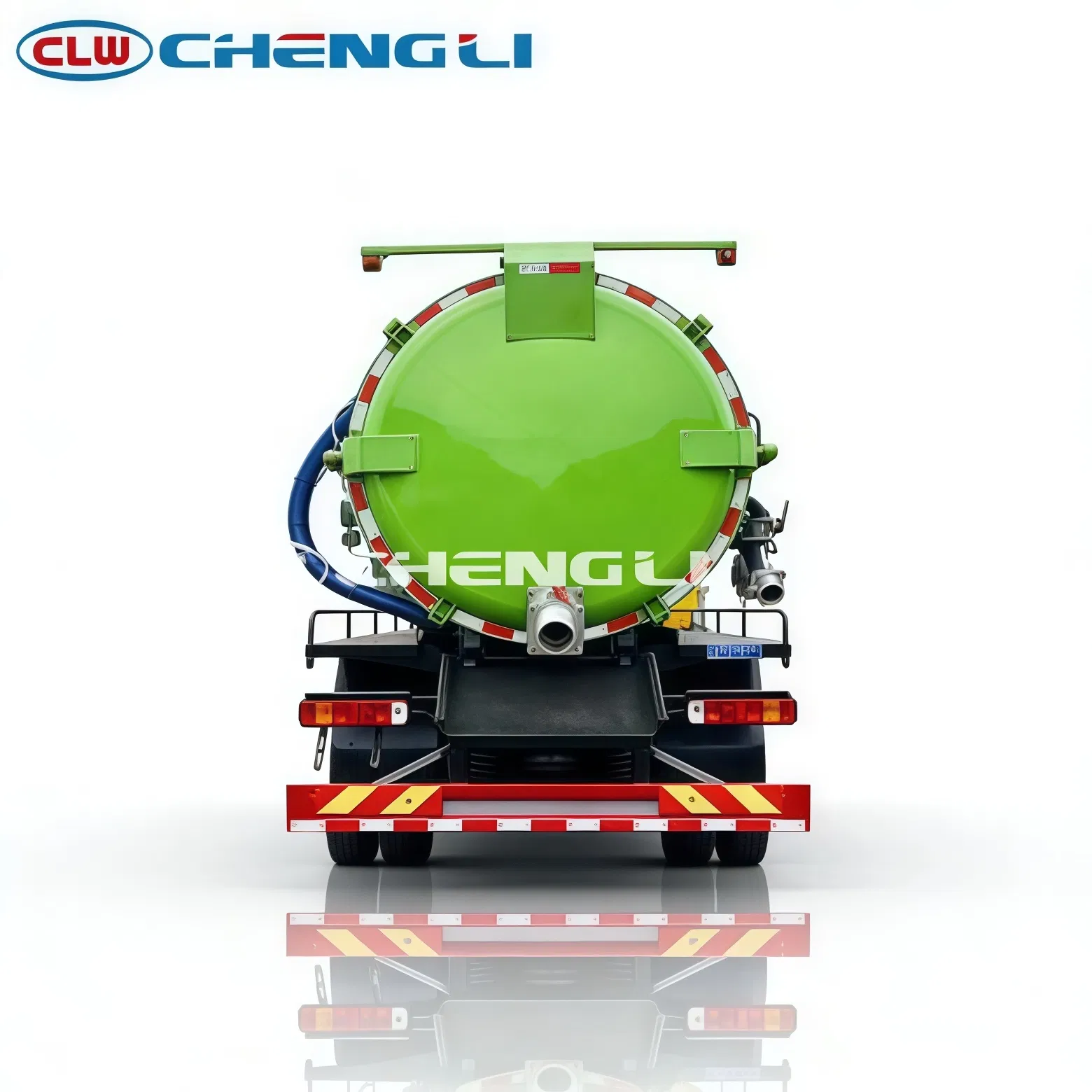

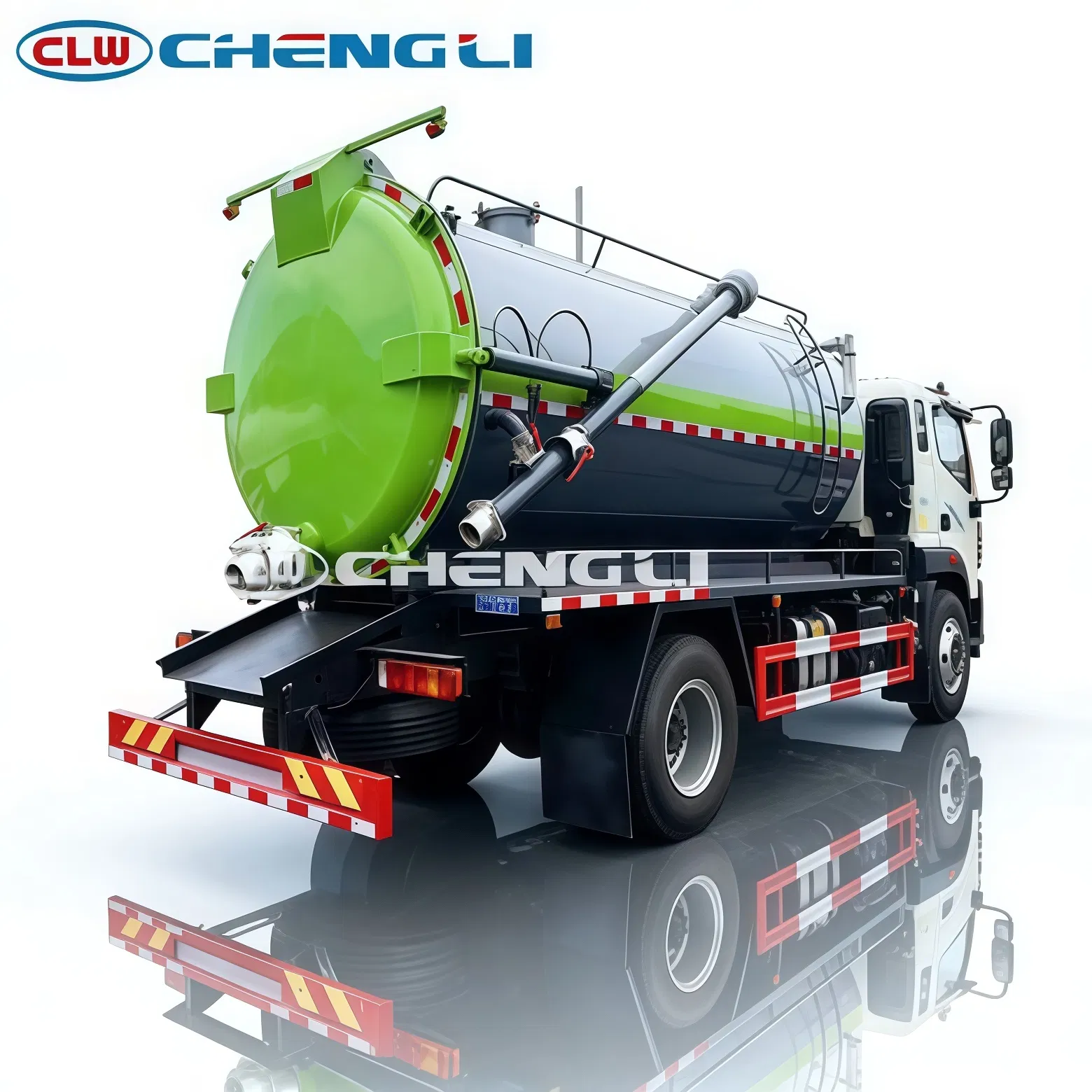

Foton 13.8 m³ Vacuum Sewage Suction Truck
This Foton 4x2 diesel vacuum sewage truck is listed with a 13,800 L Q235 steel tank and anti-overflow monitoring equipment. It is intended for accessible septic and liquid-waste collection points with an approved receiving facility. Tank volume is not the permitted waste load; density and axle limits must be checked.
Product gallery
Technical specifications
| Vacuum tank capacity | 13,800 L (13.8 m³) vacuum tank, indicative |
|---|---|
| Chassis brand | Foton |
| Drive layout | 4x2 |
| Fuel type | Diesel |
| Wheelbase | 4500 mm |
| Gross vehicle weight | 18000 kg |
| Tank material | Q235 carbon steel with anti-rust treatment |
| Tank plate | 6 mm indicative |
| Vacuum tank | 13,800 L indicative |
| Fittings | Anti-overflow valve, pressure gauge, liquid sight glass, work and warning lights, indicative |
Choose the vacuum pump, hose length and disposal procedure for the waste stream and route. Confirm tank cleaning access and permitted mass for the completed truck before ordering.
Core capabilities
Vacuum collection
13,800 L nominal tank
Provides a starting capacity for collection planning
Conditions: Usable mass depends on waste density and axle limits
Overflow monitoring
Valve, gauge and sight glass listed
Helps operators monitor loading
Conditions: Confirm exact valve and alarm configuration
Tank construction
Q235 steel, 6 mm indicative
Defines the starting body specification
Conditions: Check corrosion protection for the waste chemistry
Applications and operating fit
Septic, sludge and non-hazardous liquid-waste collection at accessible pits and tanks.
Suitable conditions
- Accessible septic and wastewater collection points
- Approved receiving facility and washdown plan
Conditions requiring a different specification
- Hazardous or chemically incompatible liquids without design review
- Routes or loads beyond the signed gross and axle limits
Chassis and configuration
Diesel; Yuchai engine listed without final model
Frequently asked questions
What tank capacity is listed?
13,800 L (13.8 m³) nominal. The legal waste load may be lower and depends on density and axle limits.
What tank material is listed?
Q235 carbon steel with indicative anti-rust treatment; compatibility needs checking for the intended waste.
Is suction depth specified?
A verified suction-depth figure is not available; confirm pump and hose performance for the site.
Plan a project quotation
Information to provide
- Destination country and drive side
- Route or site dimensions and surface
- Daily work volume and available water or disposal point
- Required equipment and quantity
Checks before quotation
- Confirm waste chemistry and density
- Confirm pump vacuum rating, suction depth and hose layout
- Confirm tank drawing, legal payload and receiving method
