CLW CL5120 Electric Road Washing Sweeper
The CLW CL5120 is a battery-electric road washing sweeper with an indicative 3.2 m cleaning width, separate nominal 6 m³ water and 6 m³ debris compartments, and a 165 kWh CATL battery. Permitted combined load and route range depend on the final specification.

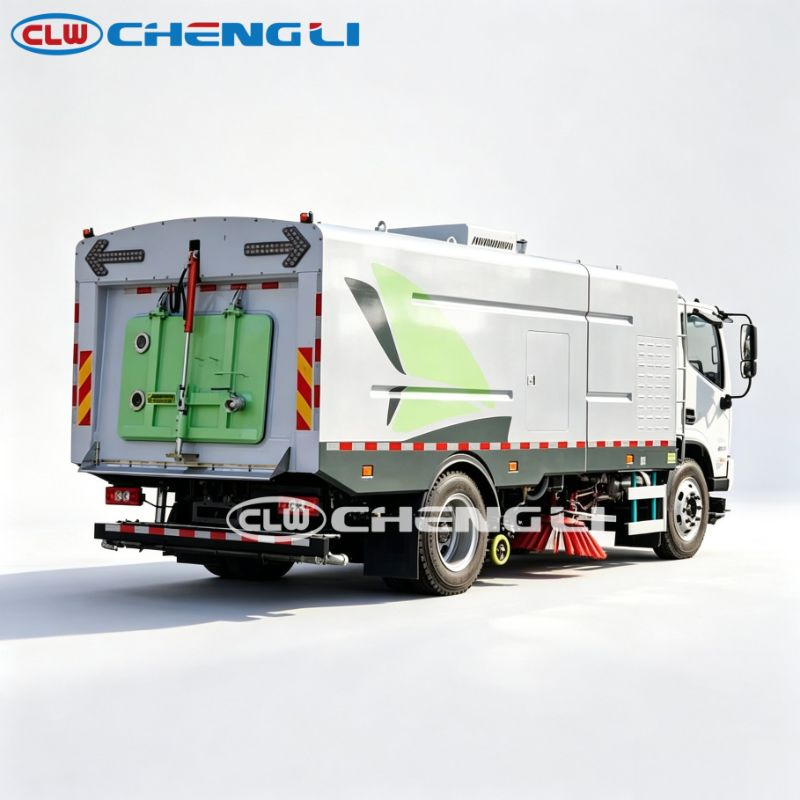

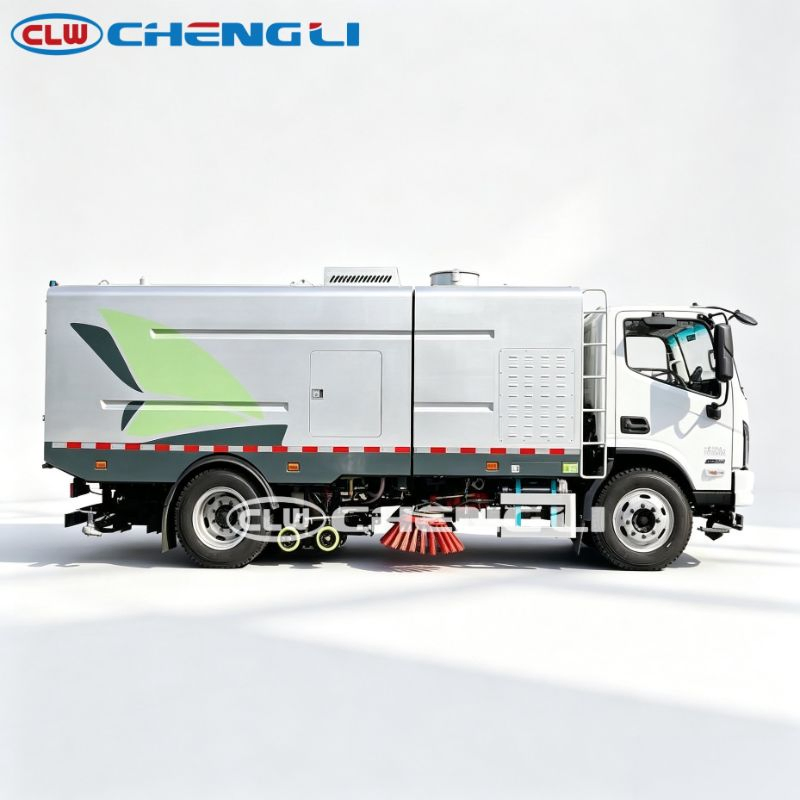

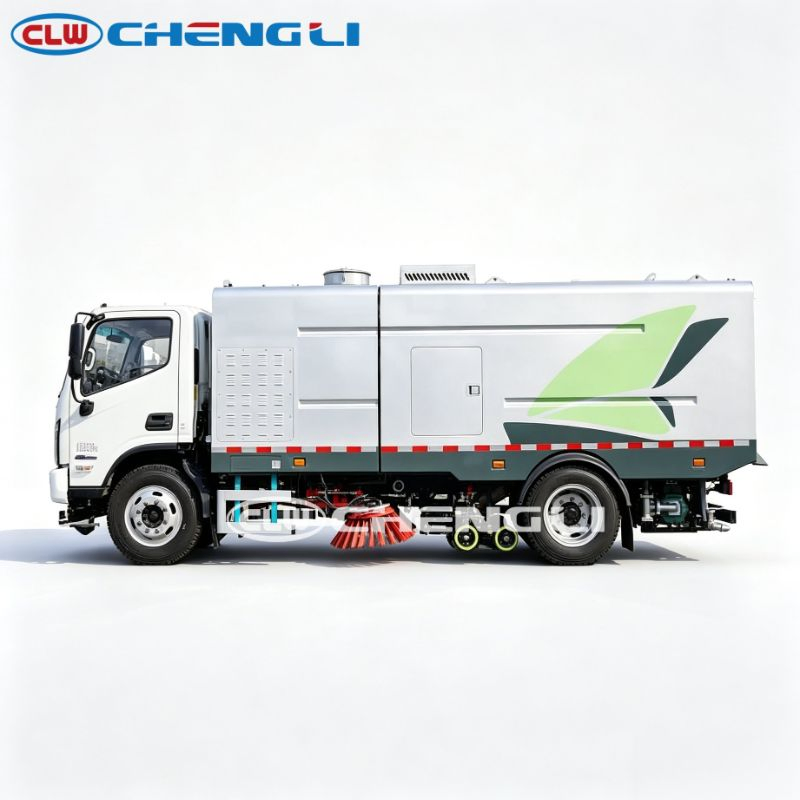

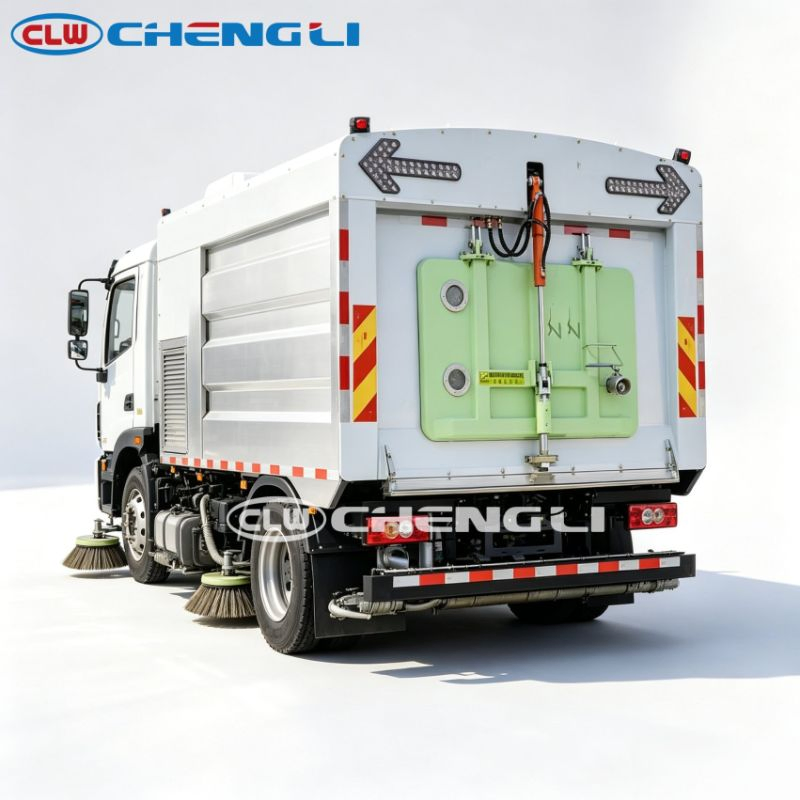

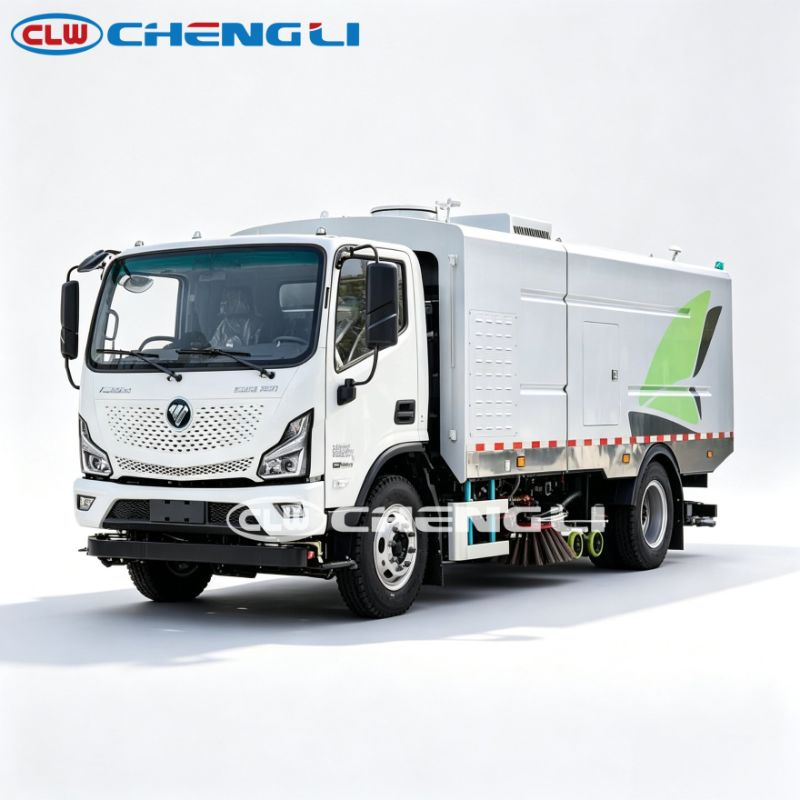

Product gallery
Technical specifications
| Water / debris capacity | 6 m³ water tank; 6 m³ debris bin (nominal) |
|---|---|
| Vehicle model | CL5120 |
| Chassis brand | CLW |
| Drive layout | 4x2 |
| Fuel type | Electric |
| Wheelbase | 4200 mm |
| Gross vehicle weight | 12495 kg |
| Debris bin | 6 m³ indicative |
| Tank materials | Carbon steel water tank; stainless steel debris bin, indicative |
| Water tank | 6 m³ indicative |
| Cleaning width | 3.2 m indicative |
| High-pressure flushing reel | 15 m indicative |
| Sweeping discs | Two middle sweeping discs |
Middle sweeping discs, a high-pressure water pump and a flushing reel are described for this configuration. Select the final cleaning layout and charging arrangement for the road surface, available water and work schedule.
Core capabilities
Washing width
3.2 m indicative
Supports lane-pass planning
Conditions: Account for overlap and kerb geometry
Combined work system
Sweeping discs, pressure pump and flushing reel
Supports sweeping, washing and spot flushing
Conditions: Confirm selected pump, hoses and nozzles
Separated compartments
6 m³ water and 6 m³ debris nominal volumes
Keeps clean water and collected debris apart
Conditions: Do not assume simultaneous full loading
Applications and operating fit
Paved street cleaning and washing where charging, water and debris-disposal points are planned.
Suitable conditions
- Paved municipal routes
- Water and charging available within the duty cycle
Conditions requiring a different specification
- Work plans based on full nominal water plus debris loads
- Unverified pressure or area-coverage guarantees
Chassis and configuration
Battery electric; 165 kWh CATL LFP battery indicative
Frequently asked questions
What is the listed working width?
3.2 m maximum cleaning width; allow overlap in route planning.
What compartment sizes are listed?
6 m³ water and 6 m³ debris. Both are nominal compartment volumes.
Is area coverage per fill known?
No reliable figure is available without water-flow, nozzle and route data.
Plan a project quotation
Information to provide
- Destination country and drive side
- Route or site dimensions and surface
- Daily work volume and available water or disposal point
- Required equipment and quantity
Checks before quotation
- Confirm signed axle and gross loads
- Confirm actual pump/nozzle configuration
- Confirm charging interface and destination documents
