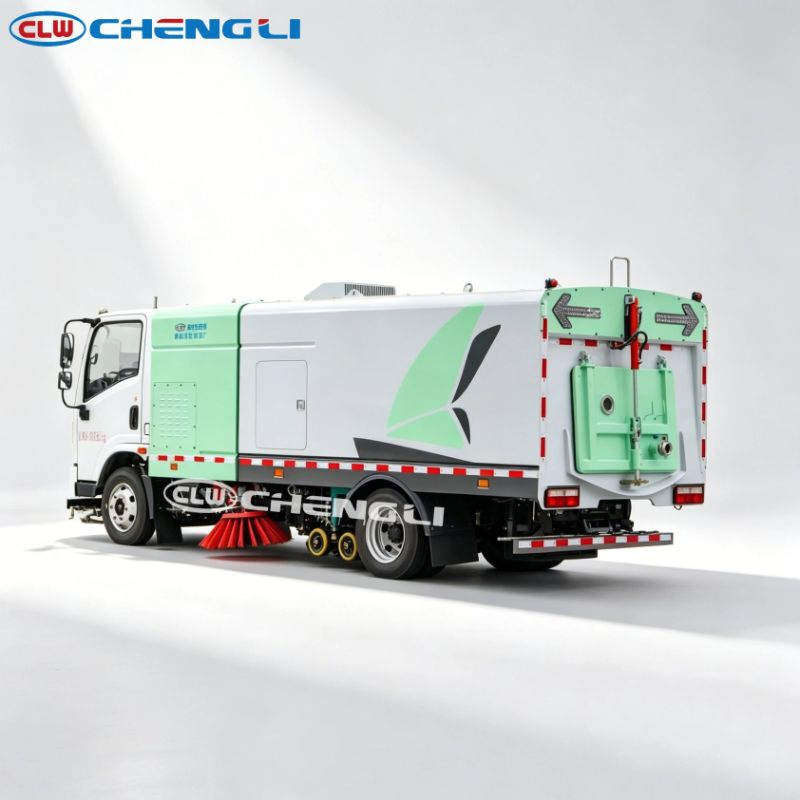

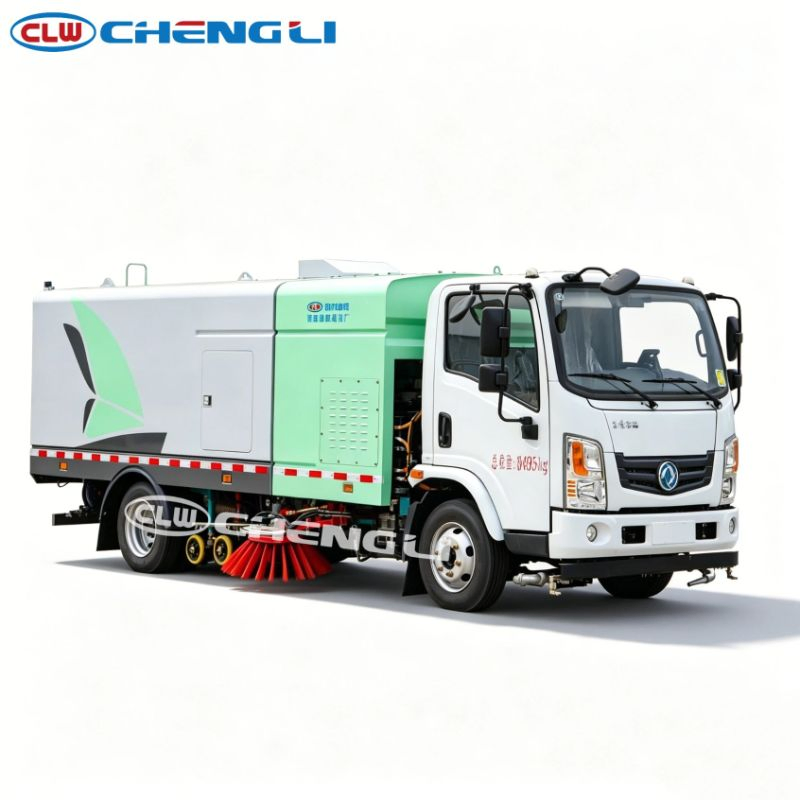

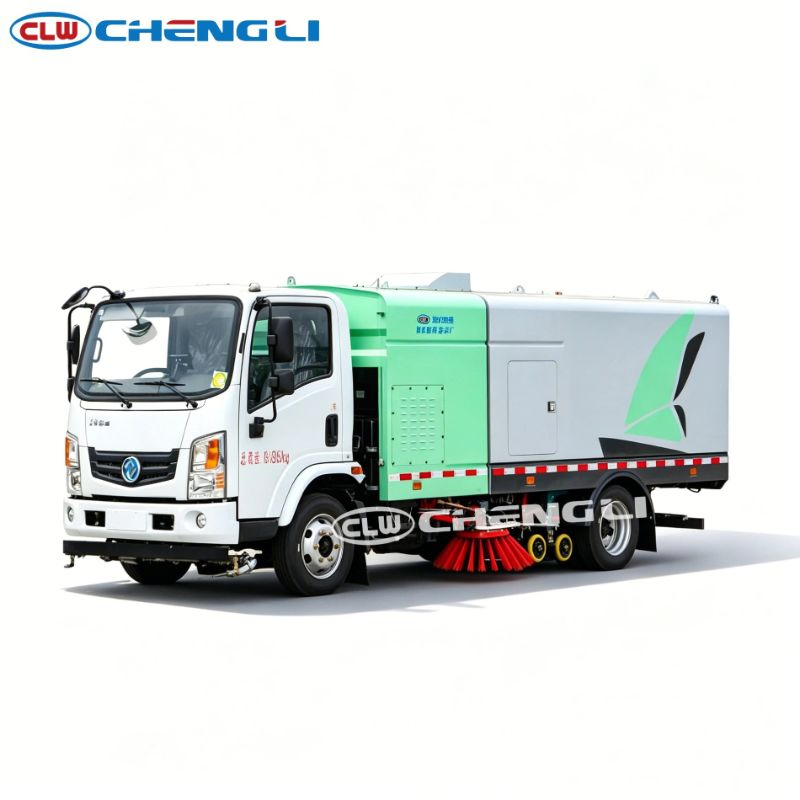

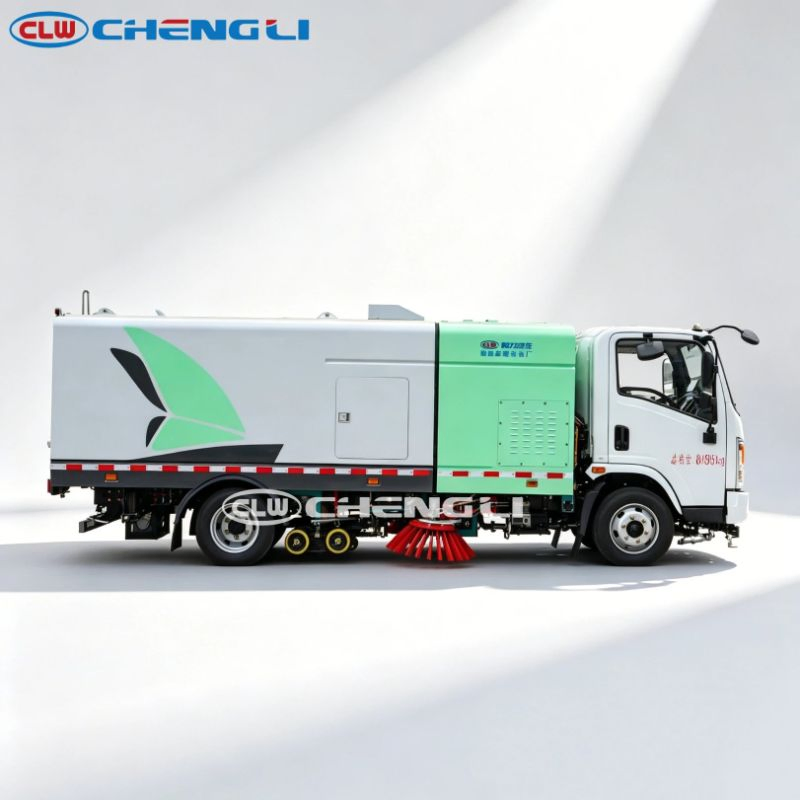

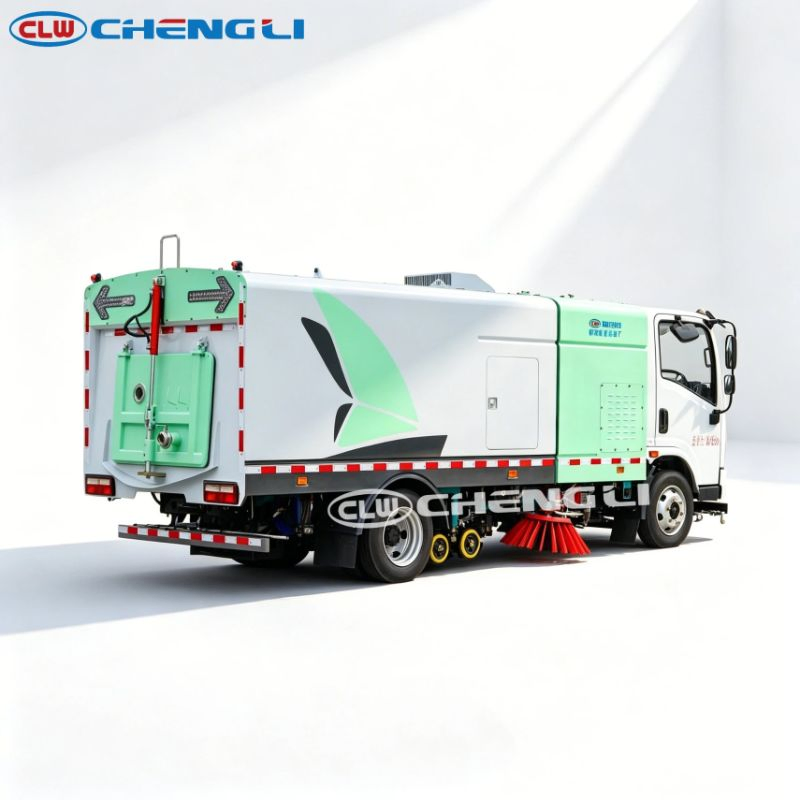

CLW CL5080 CATL Electric Road Washing Sweeper
The CLW CL5080 is a battery-electric washing sweeper with a nominal 5 m³ water tank and indicative maximum 3.2 m working width. It suits paved municipal routes requiring sweeping and washing. Permitted fill and operating range depend on the selected equipment and route.
Product gallery
Technical specifications
| Water / debris capacity | 5 m³ water tank (nominal) |
|---|---|
| Vehicle model | CL5080 |
| Chassis brand | CLW |
| Drive layout | 4x2 |
| Fuel type | Electric |
| Wheelbase | 3850 mm |
| Gross vehicle weight | 8495 kg |
| Debris bin | 5 m³ nominal; permitted combined load requires a signed loading statement |
| Water tank | 5 m³ indicative |
| High-pressure pump | GTM indicative |
| Maximum working width | 3.2 m indicative |
| Side brooms | Two anti-collision side brooms, indicative |
Two side brooms and a high-pressure water pump are described for this model. Confirm the working width, water application rate, charging plan and debris-disposal method for the chosen route.
Core capabilities
Wash and sweep
Side brooms with high-pressure water pump
Combines debris removal and road washing
Conditions: Confirm nozzle and pump flow for the project
Working width
Up to 3.2 m indicative
Helps plan lane coverage
Conditions: Allow overlap and roadside obstructions
Electric chassis
157 kWh CATL LFP indicative
Supports charging-window planning
Conditions: Range needs actual route and auxiliary-load data
Applications and operating fit
Paved municipal roads and accessible precincts needing wet sweeping and washing.
Suitable conditions
- Paved routes with water, charging and debris disposal
- Working lanes compatible with a 3.2 m cleaning width
Conditions requiring a different specification
- Unsupported claims for range or area per fill
- Simultaneously full water and debris compartments without signed axle data
Chassis and configuration
Battery electric; CATL 157 kWh LFP battery indicative
Frequently asked questions
How wide can it work?
The indicative maximum working width is 3.2 m. Allow for overlap and obstacles when planning coverage.
What water capacity is listed?
5 m³ nominal water tank. Permitted fill must be checked against the final load statement.
What distance can it wash per fill?
A reliable distance needs pump flow, spray rate, active nozzles and route conditions.
Plan a project quotation
Information to provide
- Destination country and drive side
- Route or site dimensions and surface
- Daily work volume and available water or disposal point
- Required equipment and quantity
Checks before quotation
- Verify final pump flow and nozzle layout
- Confirm permitted water and debris loads
- Confirm charging equipment and destination documents
