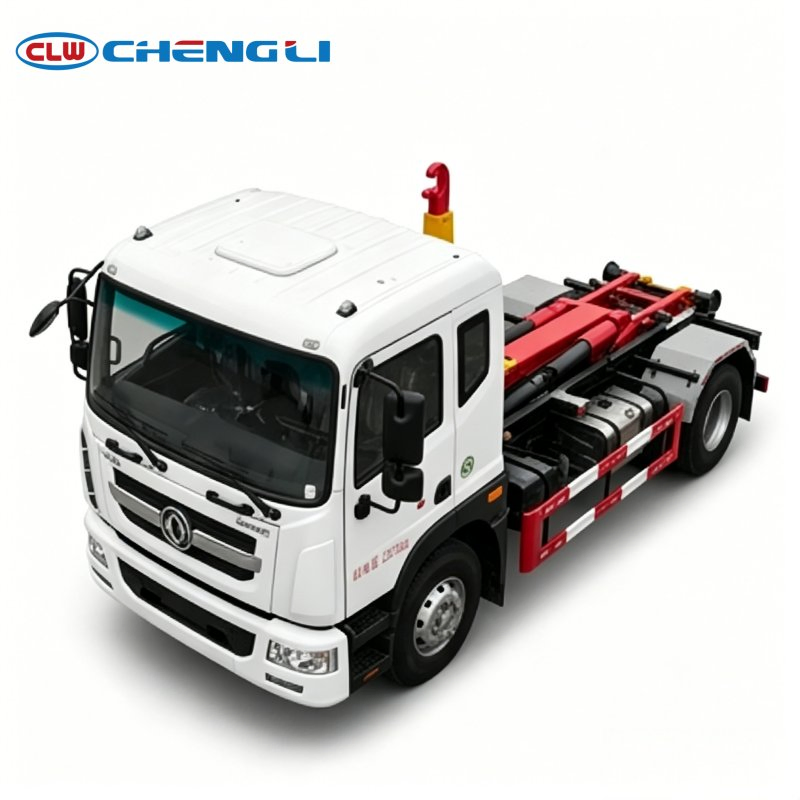

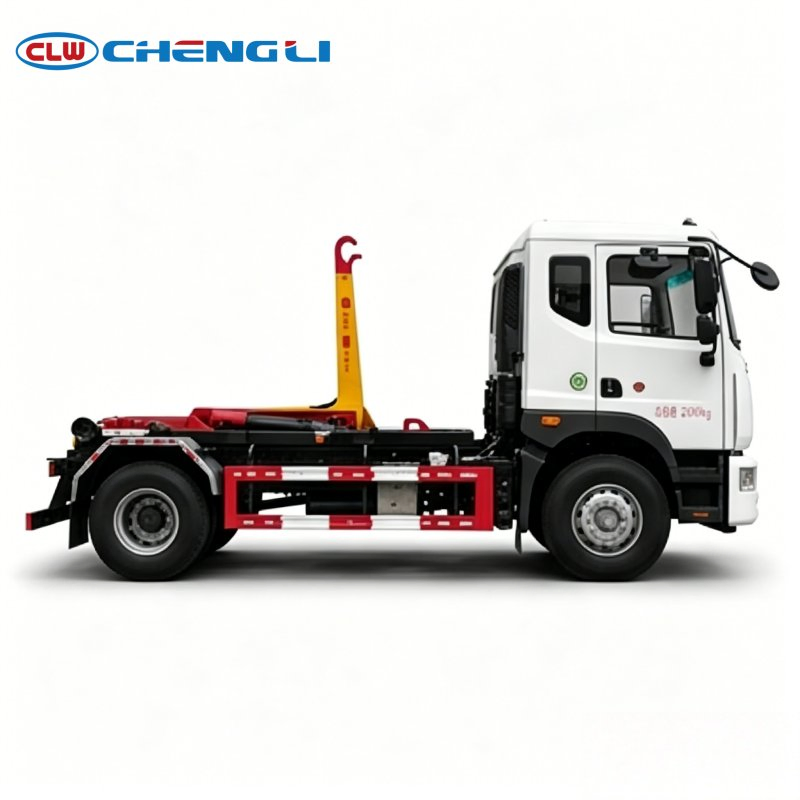

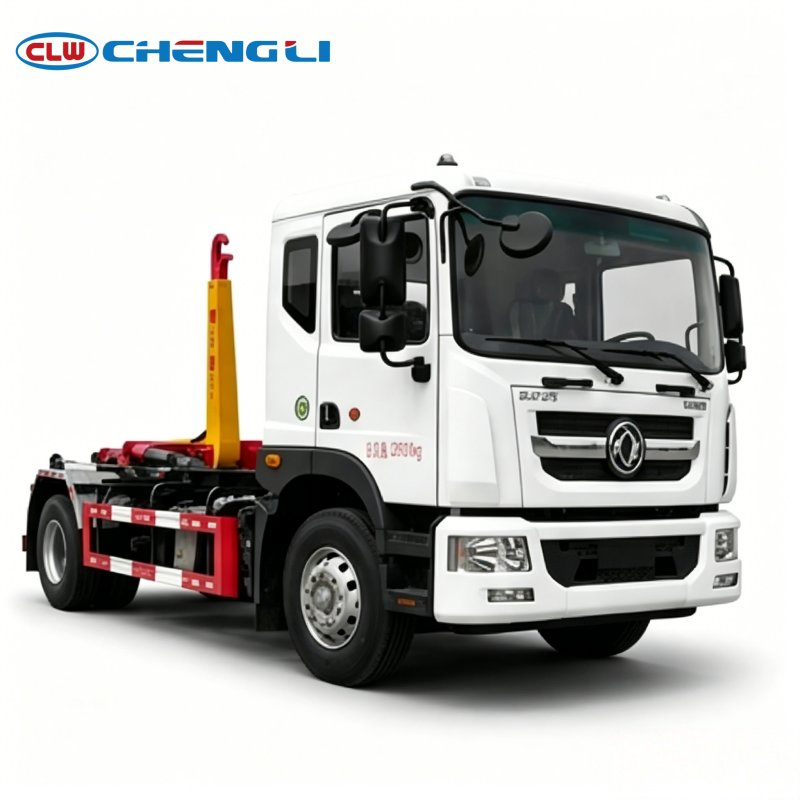

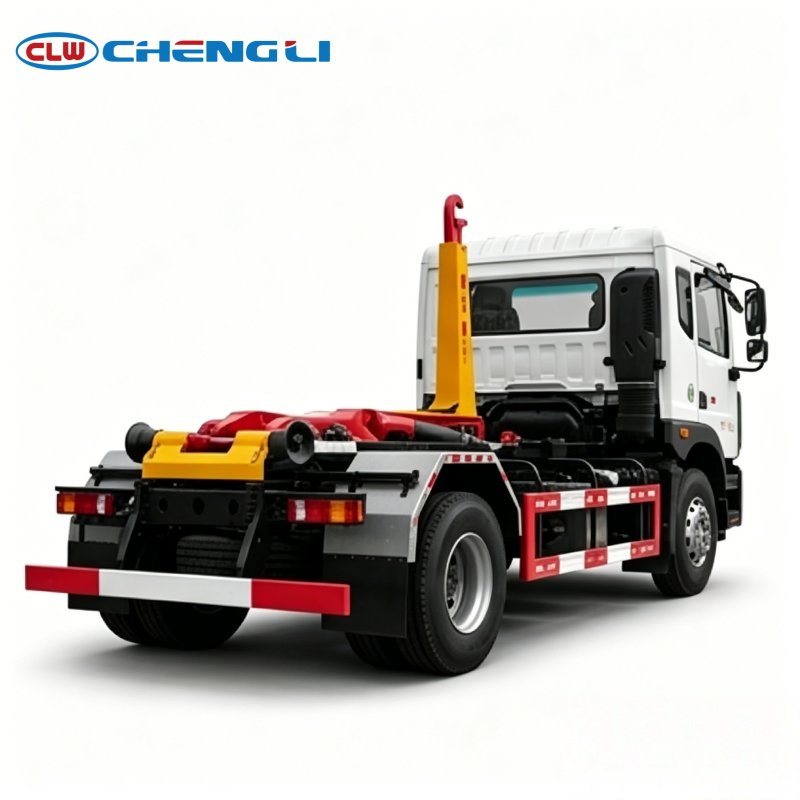

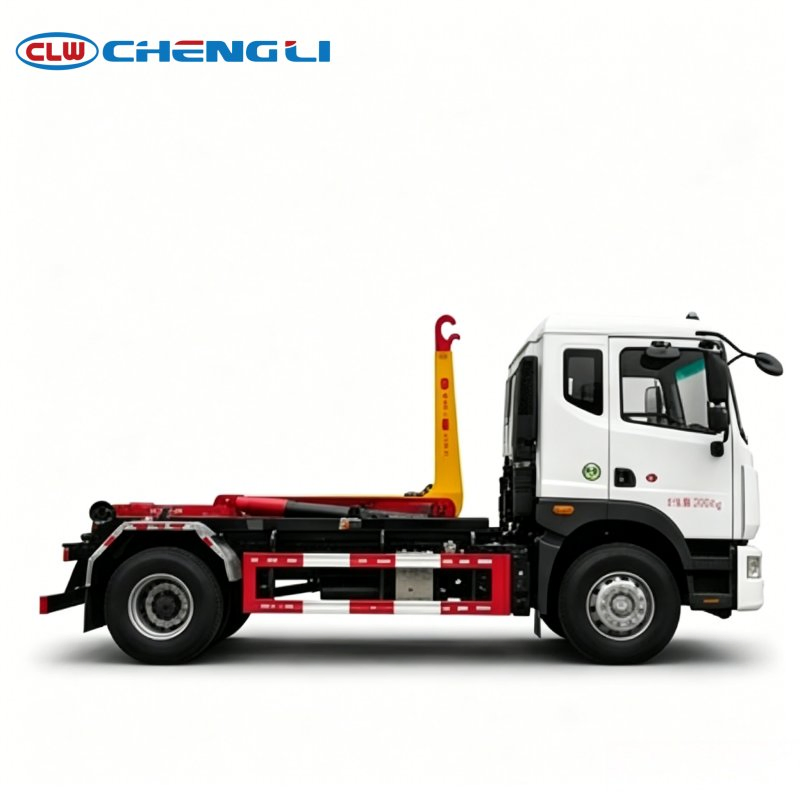

Dongfeng 18T 4x2 Hook-Lift Waste Truck
A Dongfeng 18-ton 4x2 hook-lift truck for moving compatible roll-off waste containers between collection and transfer sites. The listed diesel engine choices are 239 and 259 hp, while wheelbase and vehicle length vary by build. Container size, hook geometry and permitted loaded mass must be matched before quotation.
Product gallery
Technical specifications
| Chassis brand | Dongfeng |
|---|---|
| Drive layout | 4x2 |
| Fuel type | Diesel |
| Transmission | Manual; confirm final chassis specification |
| Gross vehicle weight | 18000 kg |
| Body equipment | Hydraulic hook-lift frame for detachable containers |
| Loading method | Hydraulic hook lift and roll-off rails |
| Hook-lift system | Hydraulic container loading and unloading; final hook height and rating unconfirmed |
| Container compatibility | Match hook height, rail spacing, container length and loaded mass to final truck drawing |
| Wheelbase options | 3600 / 3950 / 4500 / 4700 / 5000 / 5300 / 5600 mm, indicative |
| Length options | 6510 / 7060 / 7260 mm, indicative |
This hook-lift truck is intended for containerized waste routes where one chassis can serve matched roll-off containers. The project specification should pair the truck with a container drawing and verify the loaded mass, access and unloading space.
Core capabilities
Container exchange
Hydraulic hook-lift system
Loads, carries and unloads a compatible detachable container.
Conditions: Hook geometry, rails and container weight must match the final vehicle.
18-ton chassis class
18,000 kg indicative gross vehicle mass
Sets a starting point for route and axle-load planning.
Conditions: Legal payload depends on the chosen chassis, hook equipment and container tare.
Applications and operating fit
Containerized municipal refuse and industrial non-hazardous waste transfer with compatible roll-off containers.
Suitable conditions
- Municipal transfer sites with compatible roll-off containers
- Routes with checked road access and unloading space
Conditions requiring a different specification
- Containers with unmatched hook/rail dimensions
- Hazardous waste without a separately approved container
- Sites without roll-off clearance or beyond legal axle limits
Chassis and configuration
Dongfeng Cummins 239 or 259 hp option to confirms; select one final engine.
| Tyre options | 10.00R20 18PR / 295/80R22.5 18PR / 275/80R22.5 18PR, indicative |
|---|
Configuration choices
- Select one engine, wheelbase and overall length before finalizing the truck drawing.
- Container volume and lifting rating must be specified for the selected hook-lift system. Do not use the 18-ton GVW as a payload figure.
Plan a project quotation
Information to provide
- Container drawing and loaded mass
- Hook height, rail spacing and container length
- Route, site clearance and disposal distance
- Destination, drive side and quantity
Checks before quotation
- Confirm final chassis and engine
- Obtain hook-lift rating and container compatibility drawing
- Confirm axle loads and legal loaded weight
- Confirm destination documentation
