Garbage Compactor Trucks

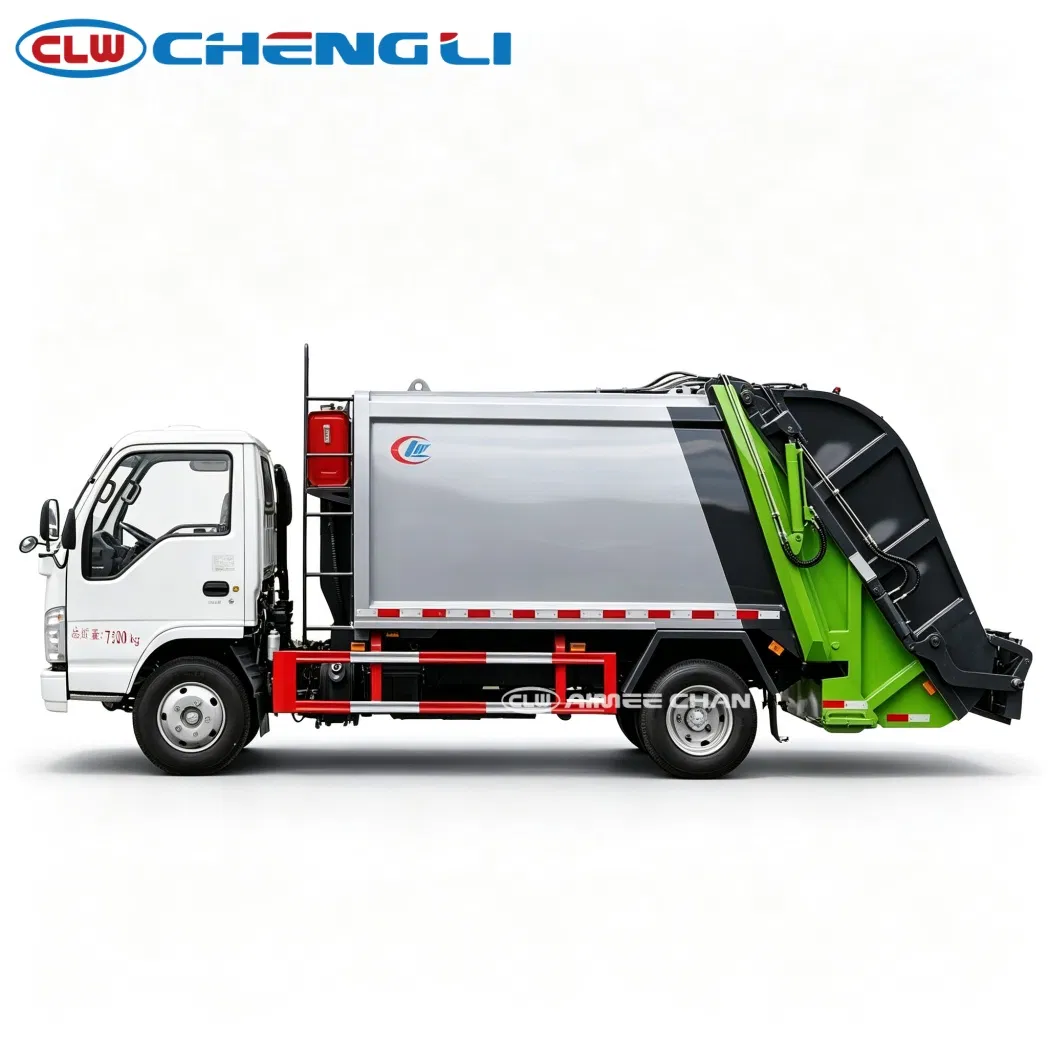

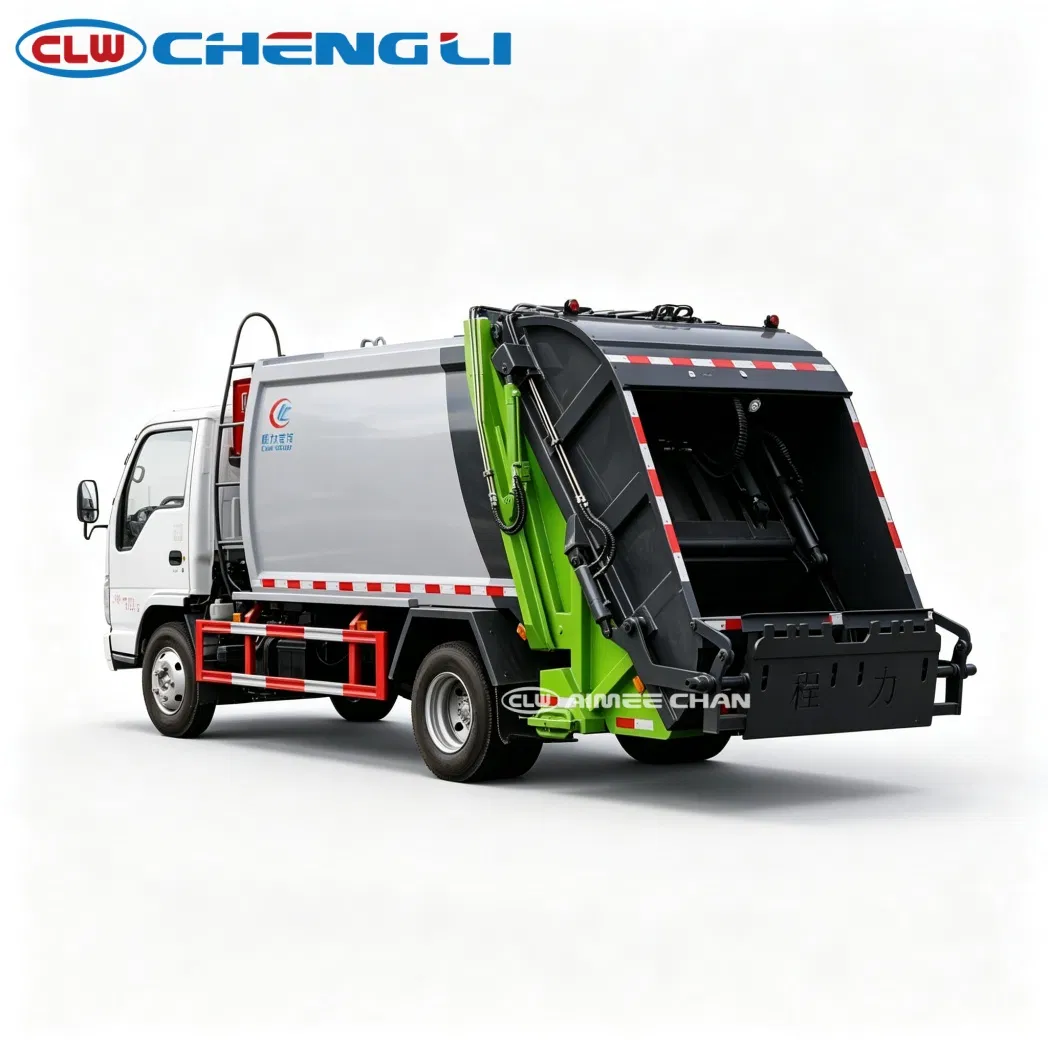

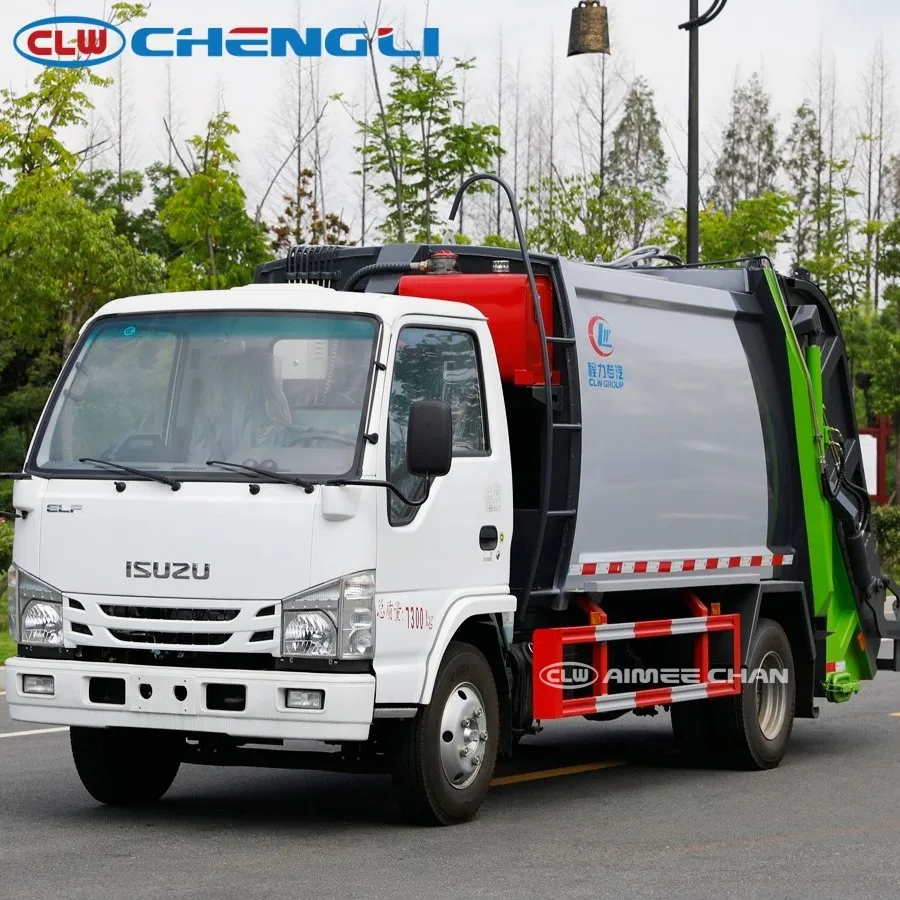

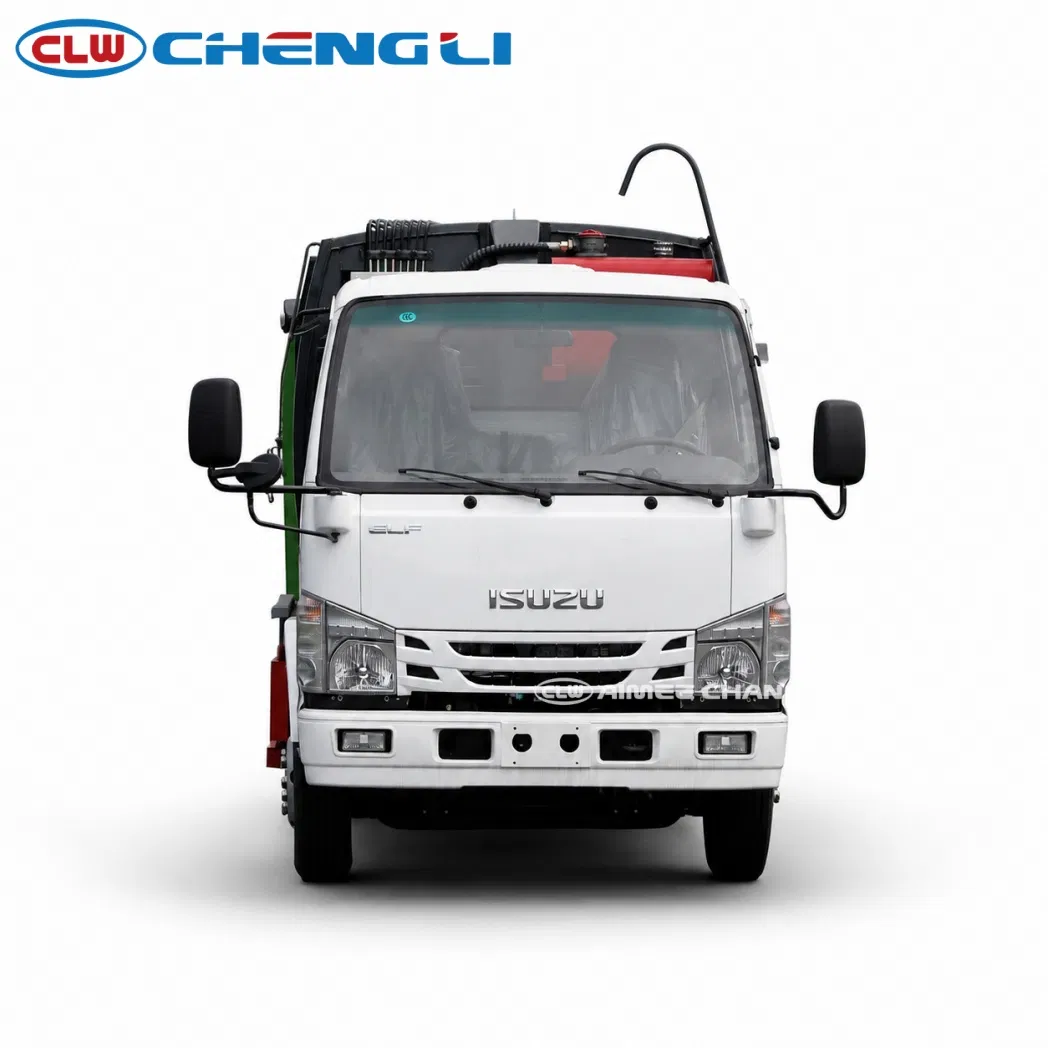

Isuzu 6 m³ Sealed Garbage Compactor Truck
Isuzu 6 m³ Sealed Garbage Compactor Truck is configured for sealed municipal refuse collection and compaction. Source specifications describe the principal chassis and working system; final axle loads, dimensions, pump or lifting duty, destination compliance and optional equipment must be confirmed against the signed build sheet before quotation.
Product gallery
Technical specifications
| Compactor body capacity | Capacity to be confirmed from final build sheet |
|---|---|
| Chassis brand | Isuzu |
| Drive layout | 4×2 |
| Fuel type | Diesel |
| Transmission | Manual |
| Gross vehicle weight | 7300 kg |
| Overall width | 2050 mm |
| Overall height | 2750 mm |
| Overall length | 6650 mm |
| Gross vehicle weight | 7300 Kg |
| Curb weight | 5300 Kg |
| Rated payload | 1870 Kg |
| Overall dimensions | 6650×2050×2750 mm |
| Working system | Hydraulic loading, compaction and discharge system |
| Final duty point | Confirm against the signed configuration and operating conditions |
Isuzu 6 m³ Sealed Garbage Compactor Truck should be assessed within the complete operating workflow. A refuse collection vehicle performs best when the body, loading cycle and collection route are planned as one system.
Review container handling, stop frequency, unloading access and the expected waste stream before agreeing the final build configuration. Exact sourced values and items requiring confirmation are kept in the structured sections below.
Core capabilities
Purpose-built working system
Hydraulic loading, compaction and discharge system
Conditions: Final equipment configuration and duty point are confirmed.
Nominal carrying capacity
Confirm nominal capacity for the final build.
Conditions: Legal fill depends on final gross and axle weights.
Applications and operating fit
Sealed municipal refuse collection and compaction
Suitable conditions
- Residential waste routes
- Commercial refuse collection
- Transfer routes with compatible unloading points
Conditions requiring a different specification
- Hazardous or corrosive waste
- Oversized construction debris
- Routes exceeding verified axle limits
Chassis and configuration
Frequently asked questions
What should be confirmed before quotation?
Confirm the required capacity, daily workload, site access, destination rules and final working-system performance. The source figures are configuration references, not guaranteed values.
Is the listed capacity the legal payload?
No. Nominal tank or body volume is not the same as legal payload. Permitted fill must be checked against final gross vehicle and axle weights.
Plan a project quotation
Information to provide
- Required capacity and daily workload
- Road, access and turning constraints
- Destination country and steering side
- Required working-system performance
- Applicable registration and compliance documents
Checks before quotation
- Confirm signed chassis and body specification
- Confirm legal gross and axle loads
- Confirm working-system duty point
- Confirm destination compliance and documents
- Confirm image and final build correspondence
