Food Waste Collection Trucks
Dongfeng CL5120TCACC6 8 m³ Food-Waste Truck
The Dongfeng CL5120TCACC6 is a 4x2 food-waste collection truck with a nominal 8 m³ enclosed body and a lifting mechanism described for 240 L bins. It is intended for restaurant, canteen and municipal organics rounds. Confirm bin fit, axle loads and permitted waste load for the selected body.

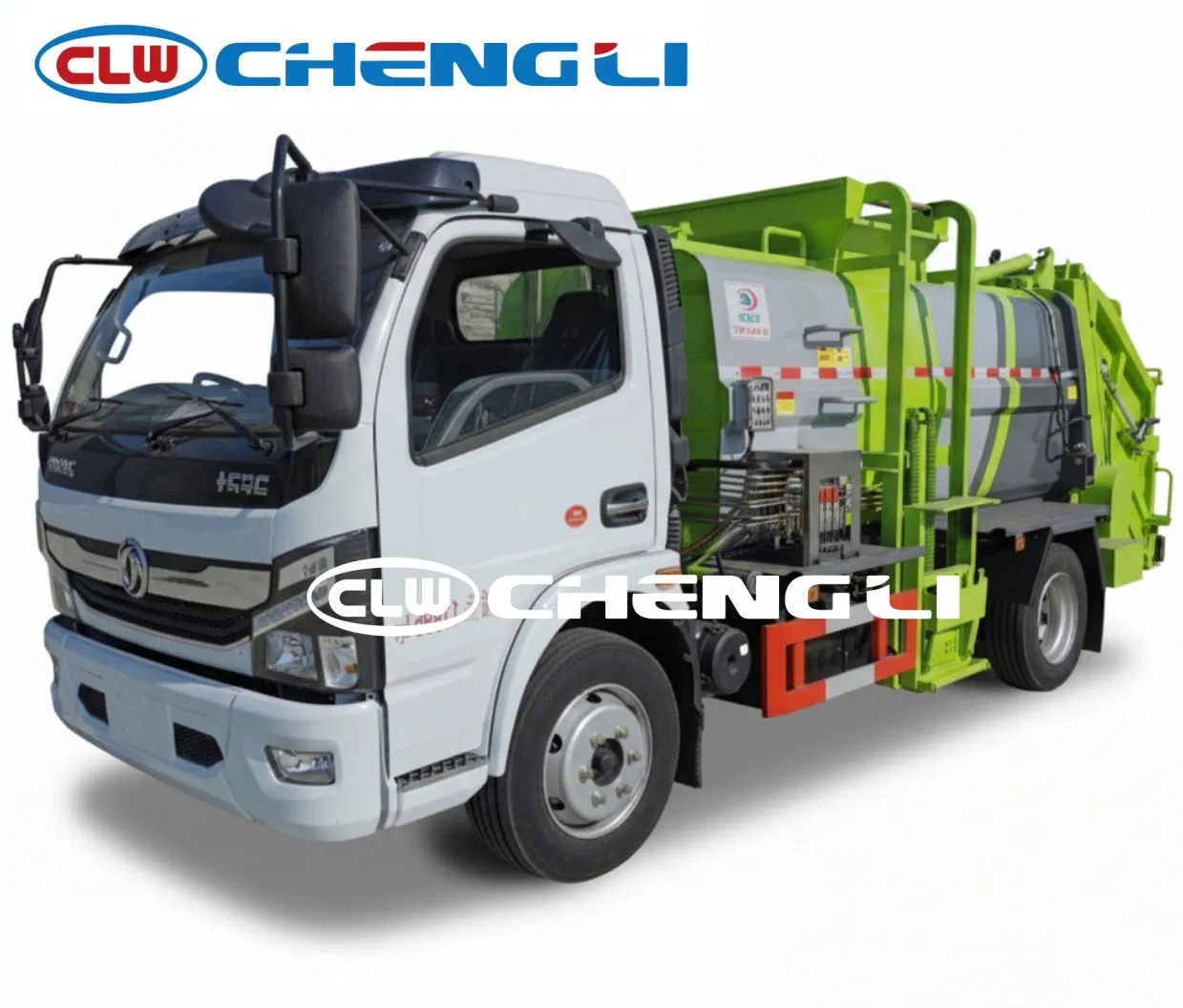

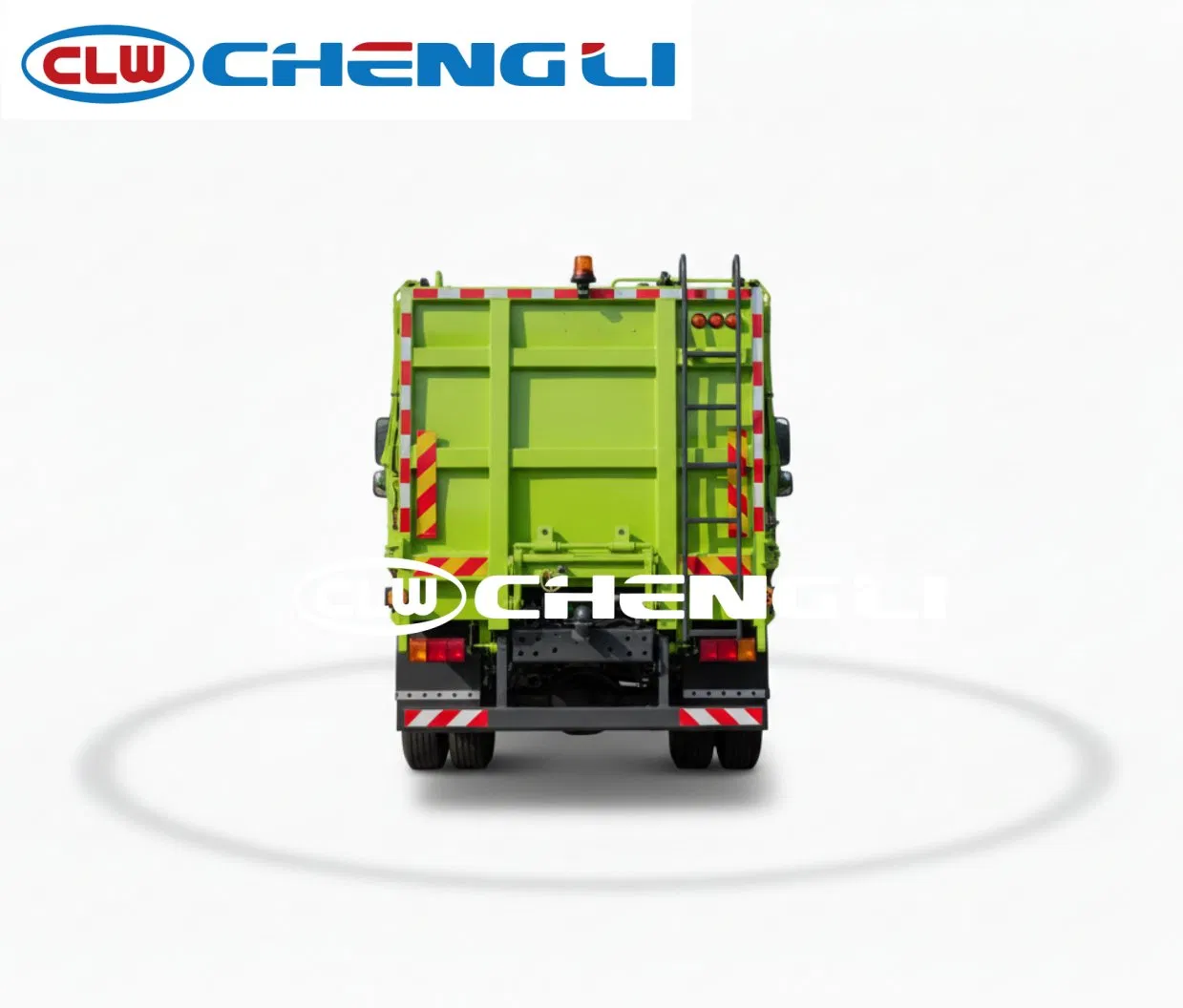

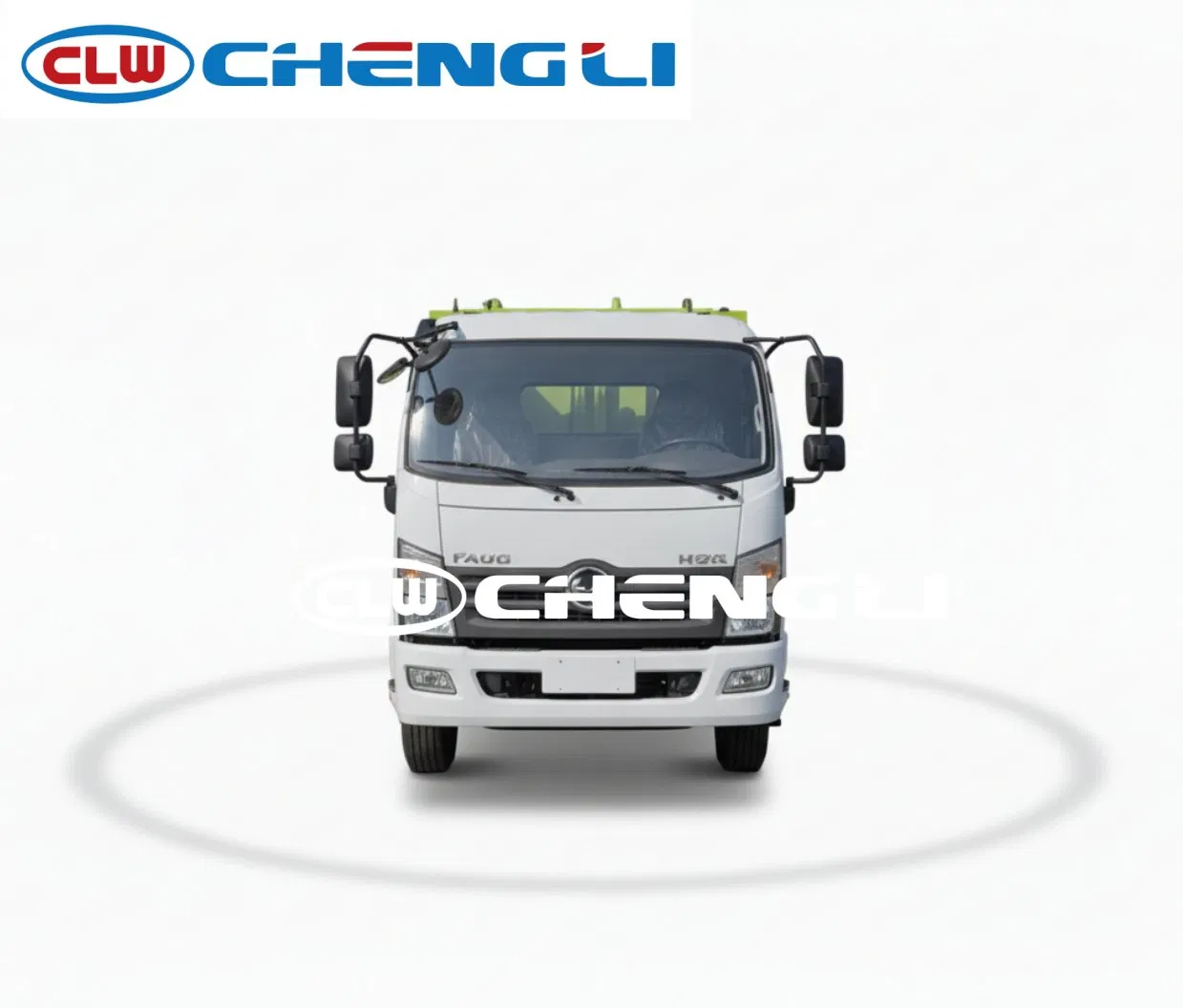

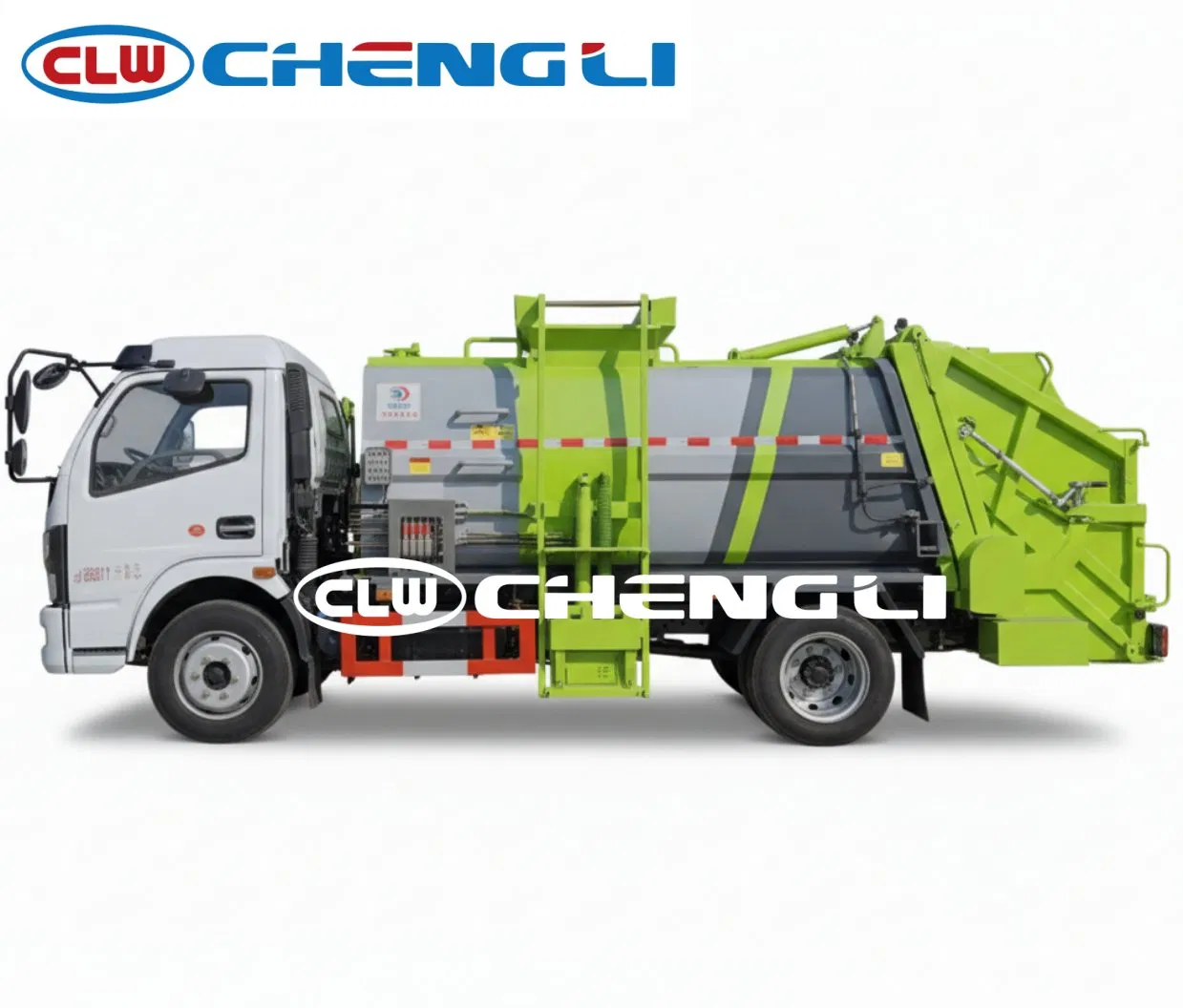

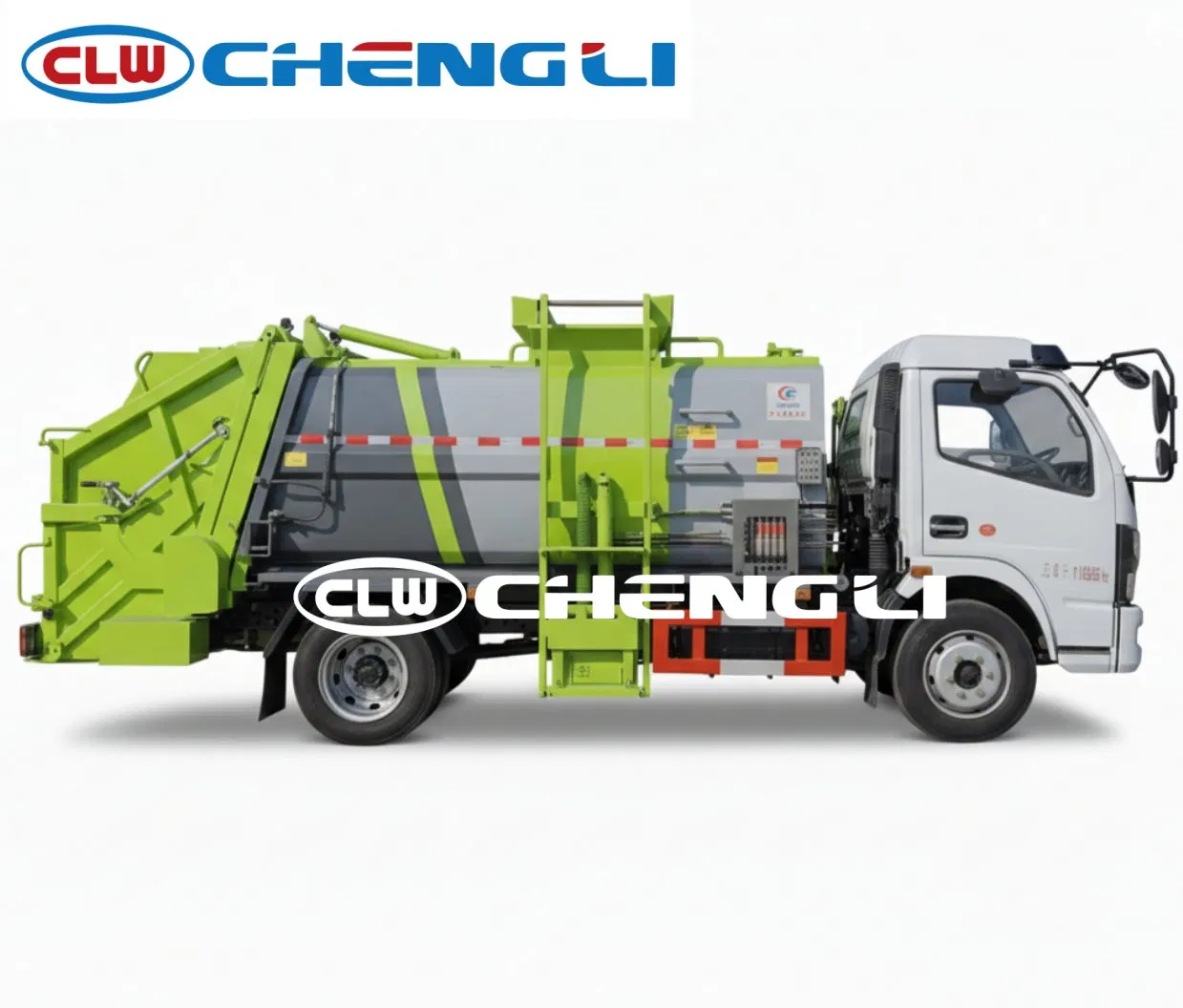

Product gallery
Technical specifications
| Vehicle model | CL5120TCACC6 |
|---|---|
| Chassis brand | Dongfeng |
| Drive layout | 4x2 |
| Fuel type | Diesel |
| Transmission | Manual; confirm final chassis specification |
| Wheelbase | 3800 mm |
| Gross vehicle weight | 11995 kg |
| Overall width | 2260 mm |
| Chassis model | EQ1125SJ8CDC |
| Overall length | 6650 mm |
| Food-waste body volume | 8 m³ |
| Body shape | Square tank (detailed source) |
| Body material | 4 mm carbon steel; optional stainless steel |
| Bin interface | Standard 240 L waste bins, indicative |
| Bin loading | Hydraulic bin lift and tip |
| Discharge method | Push-out discharge; sealed discharge listed as option |
| Solid-liquid separation | Described in source product description; detailed mechanism and yield unverified |
| Hydraulic pressure | 16 MPa indicative; confirm on final hydraulic drawing |
| Hydraulic pump | Hebei Weiguo pump; confirm on final build |
| Bin lift/tip cycle | ≤25 s indicative under unspecified conditions; verify on final build |
This food-waste truck combines an enclosed collection body, a bin-lifting layout and push-out discharge for planned organic-waste routes. Confirm the selected body material, bin fit and permitted loaded mass against the final vehicle drawing before placing an order.
Core capabilities
Collection body
8 m³ indicative effective volume
Sets a starting body size for planning food-waste rounds.
Conditions: Permitted waste mass depends on density, body tare and signed axle-load limits.
Bin handling
Lifter described for 240 L standard bins
Transfers compatible bins into the enclosed body.
Conditions: Confirm bin geometry and final lift arrangement.
Discharge
Push-out method indicative
Empties collected material at a suitable receiving point.
Conditions: Check unloading space, receiving method and cleaning arrangements.
Applications and operating fit
Food scraps and liquid-rich organic waste from restaurants, canteens and municipal collection points using compatible 240 L bins.
Suitable conditions
- Food-waste rounds using compatible 240 L bins
- Routes with access for a 6,650 mm long and 2,260 mm wide vehicle
- Receiving sites suited to the selected push-out arrangement
Conditions requiring a different specification
- Hazardous chemicals or bulky construction waste
- Unmatched bins or unverified liquid containment requirements
- Routes or loads exceeding signed axle and gross limits
Chassis and configuration
| Tyre options | 8.25R20 16PR, indicative |
|---|
Configuration choices
- Choose carbon-steel or optional stainless-steel body based on waste chemistry and maintenance needs.
- Manual control is listed; electric control is an option requiring confirmation.
- Curb weight and payload vary by configuration. Confirm one signed vehicle weight and axle-load statement.
Optional equipment
- Stainless-steel body (option to confirm)
- Electric hydraulic control (option to confirm)
- Sealed discharge (option to confirm)
Plan a project quotation
Information to provide
- Waste composition and approximate density
- Bin dimensions and daily collection volume
- Route width and turning clearance
- Receiving facility and preferred discharge method
- Destination, drive side and quantity
Checks before quotation
- Select one body material and discharge method
- Confirm bin interface and sealed-body drawing
- Confirm curb weight, axle loads and legal food-waste mass
- Confirm destination documents and commercial terms
