Foton 13m3 Electric Dust Suppression Truck
An 18-ton Foton-based electric dust suppression truck with a 13,000 litre tank and configurable jet, mist and fog-cannon functions. It is designed for construction sites, industrial roads and urban dust-control work where zero tailpipe emissions are preferred.

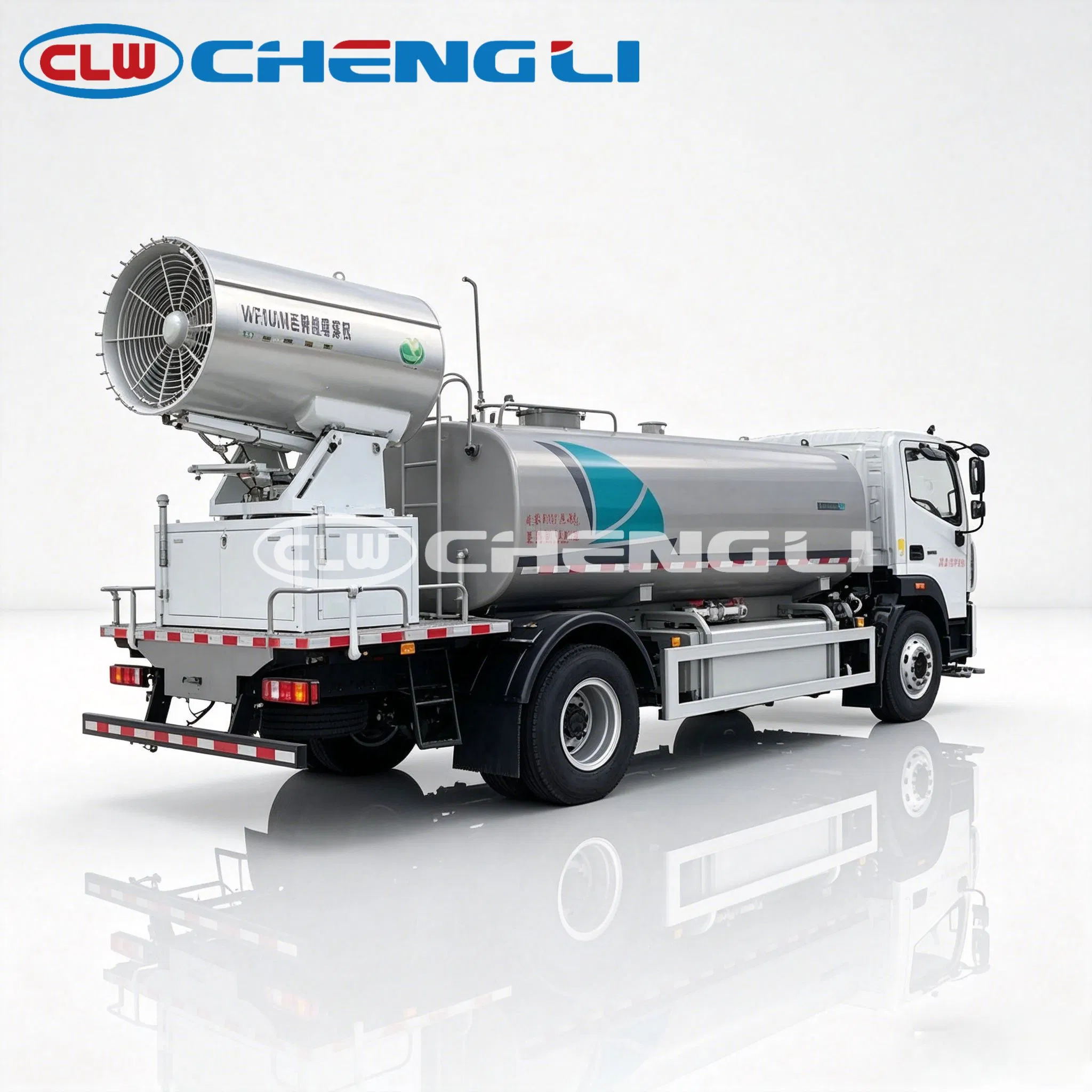

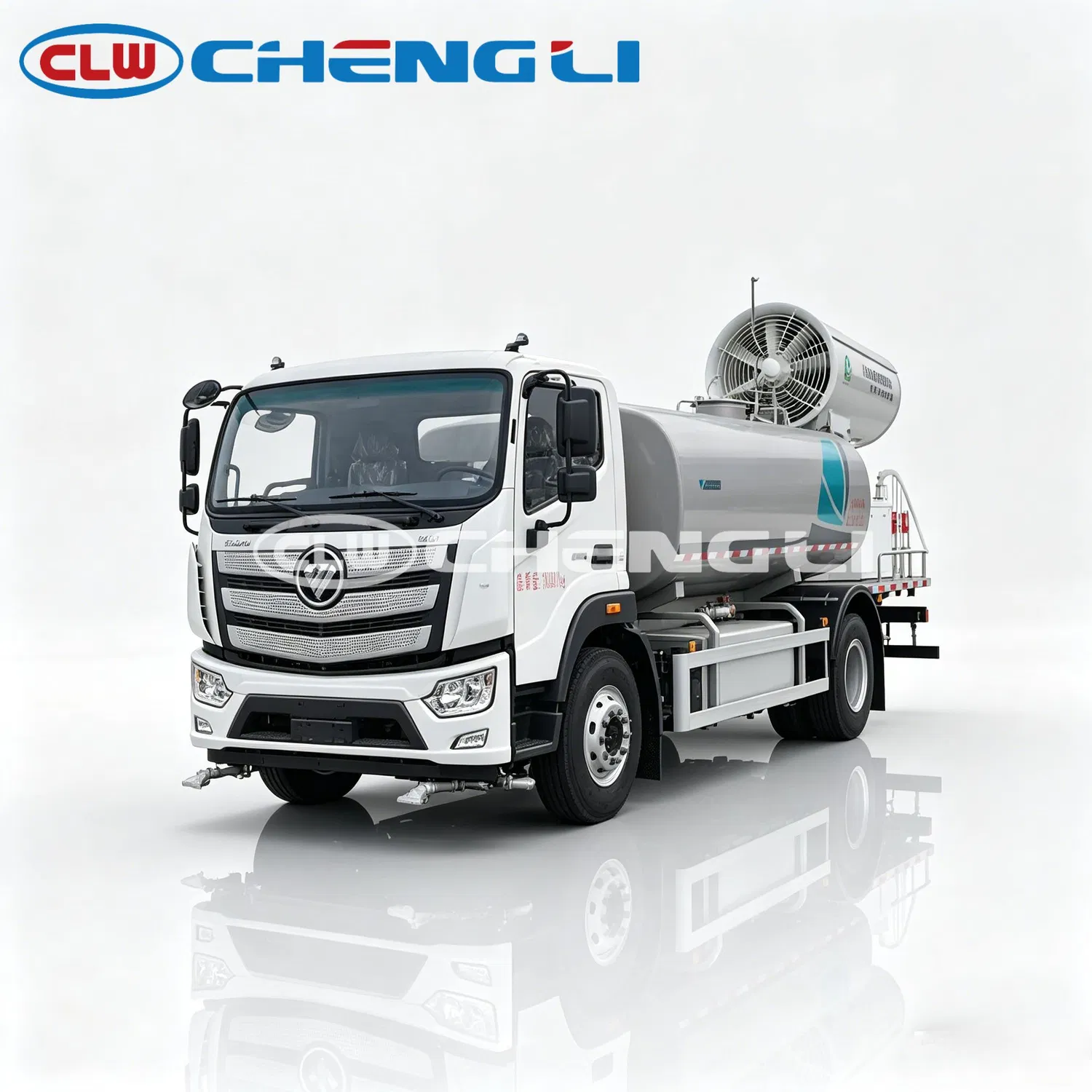

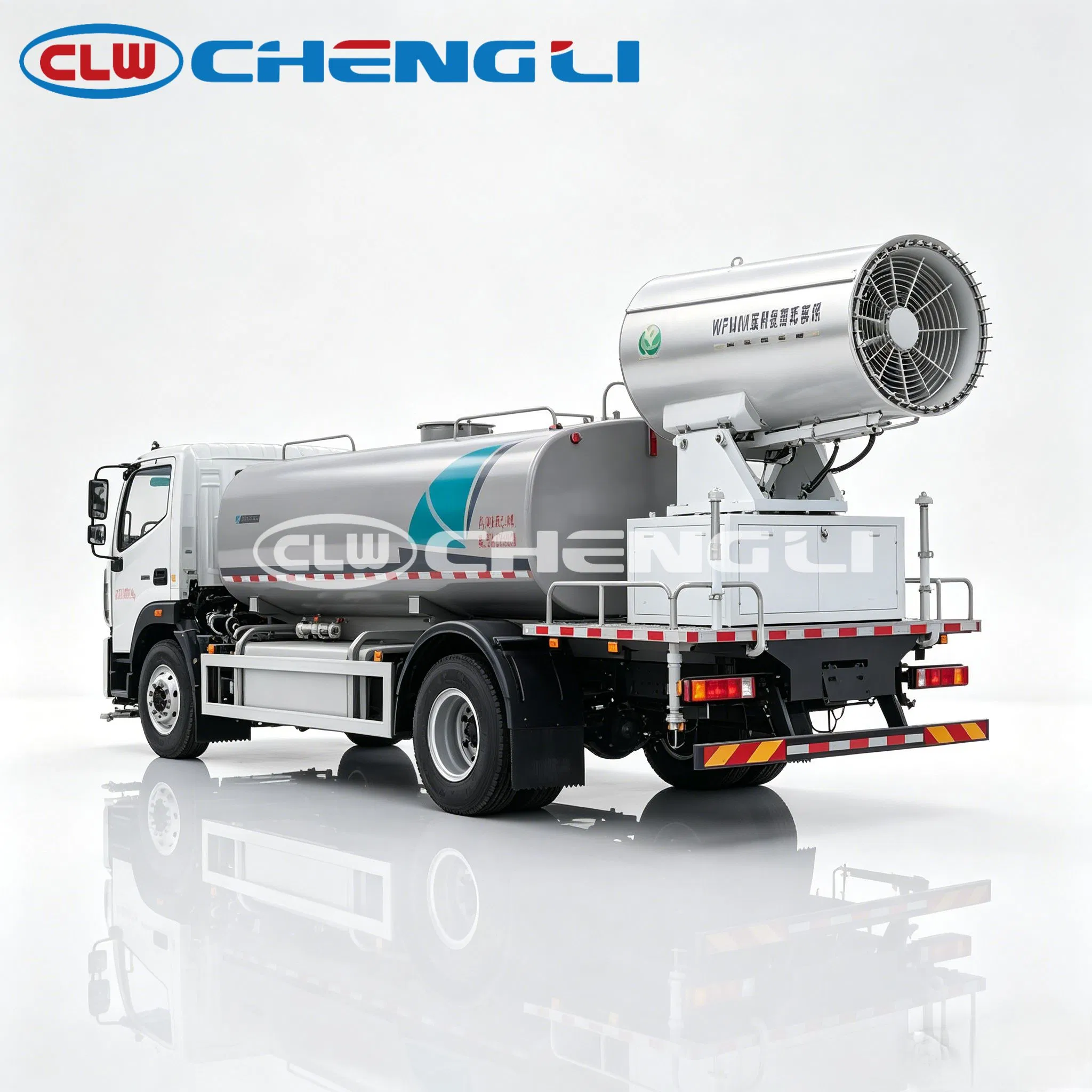

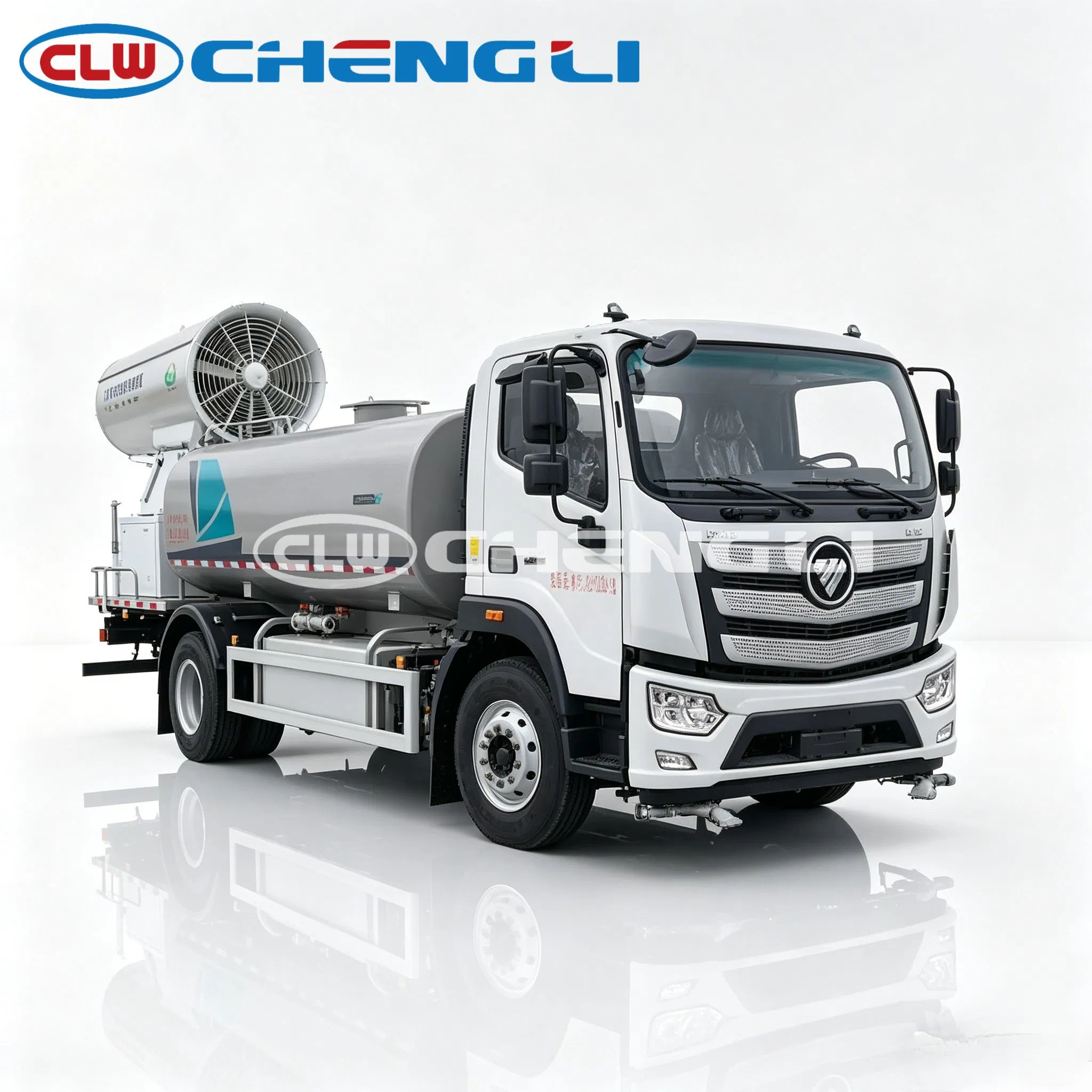

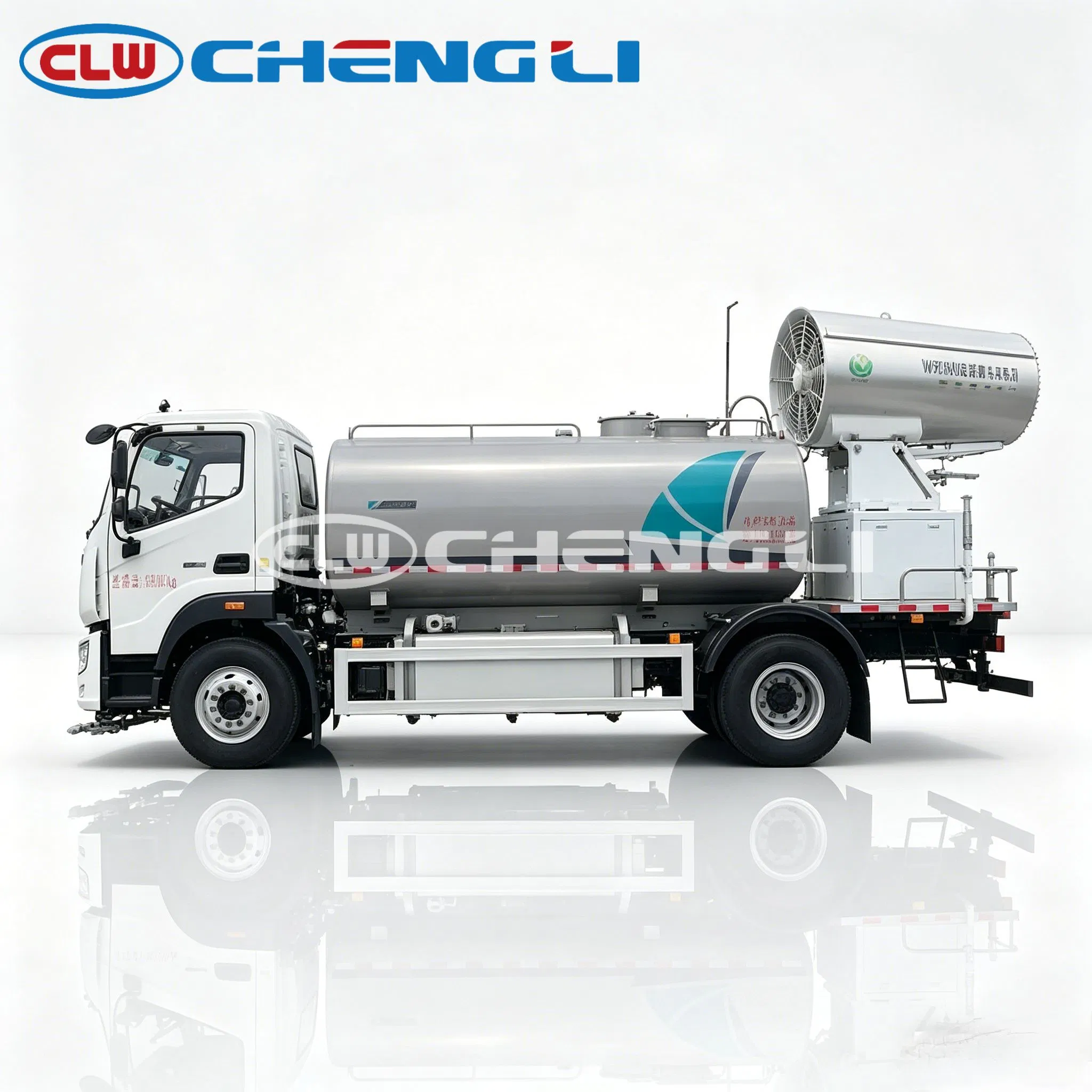

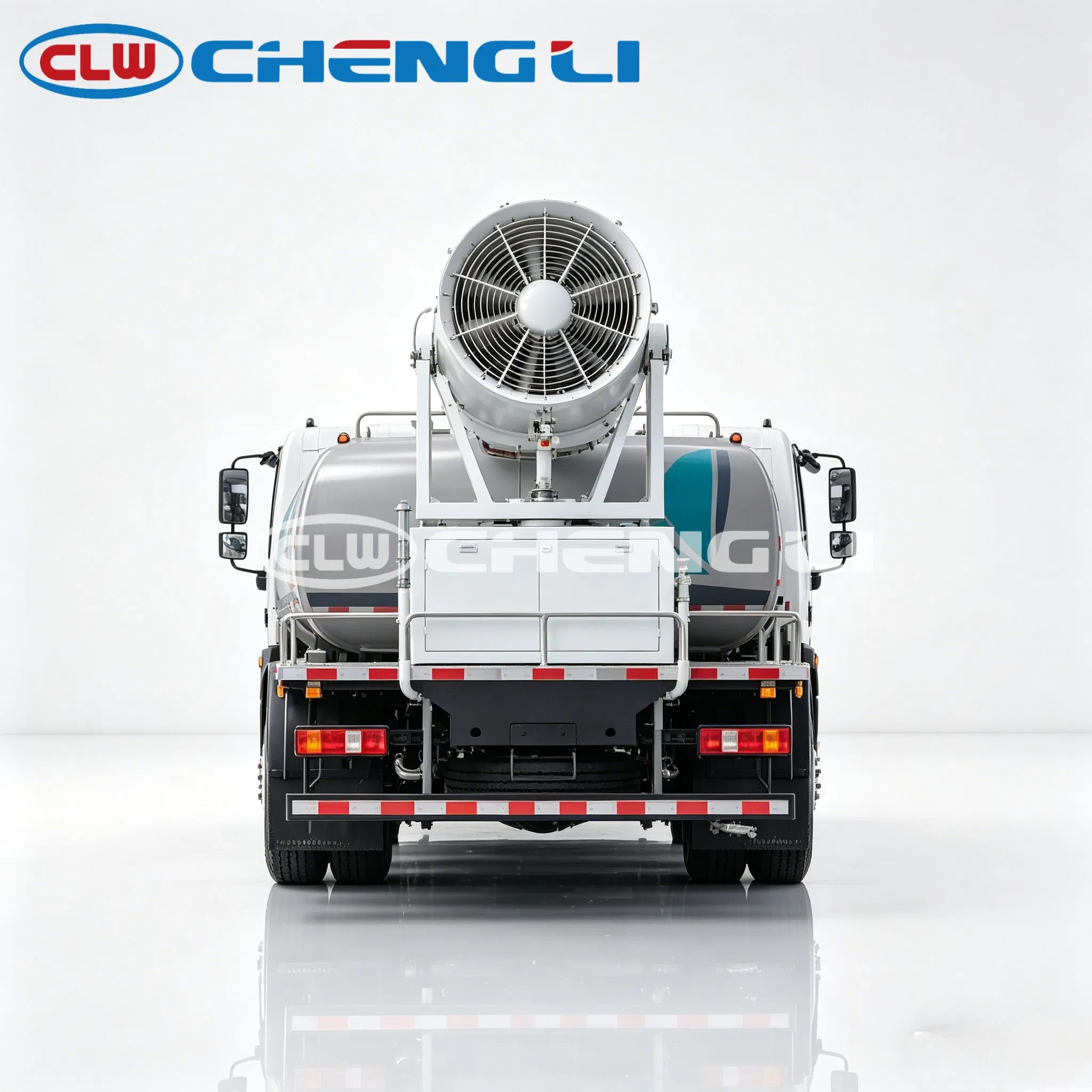

Product gallery
Technical specifications
| Water tank capacity | 13,000 L water tank |
|---|---|
| Drive layout | 4x2 |
| Fuel type | Electric |
| Chassis | Foton |
| GVW | 18,000 kg |
| Battery | 200 kWh LFP |
| Rated motor power | 175 kW |
| Maximum speed | 90 km/h |
| Wheelbase options | 4,500 / 4,800 / 4,900 mm |
| Overall dimensions | 9,000 x 2,540 x 3,950 mm |
| Water cannon | 360-degree front electric cannon |
| indicative range | 340 km; verify against duty cycle |
| Listed jet / mist range | 35 m / 15 m |
This electric dust-control truck is intended for sites that need mobile water spraying with low local exhaust emissions. Select the spray equipment and charging plan against the actual site layout and daily operating cycle.
Core capabilities
Multi-mode spraying
Direct jet and multiple rain or mist patterns support different dust conditions.
High water capacity
13,000 L reduces refill frequency on larger sites.
Electric operation
No tailpipe emissions at the worksite; shift range depends on load and auxiliary demand.
Applications and operating fit
Construction, industrial and municipal dust control
Suitable conditions
- Construction dust control
- Industrial and logistics roads
- Municipal washing
- Sites with charging infrastructure
Conditions requiring a different specification
- Sites without suitable charging
- Potable-water transport
- Firefighting without approved package
- Operations beyond legal axle limits
Chassis and configuration
Battery electric
Configuration choices
- Tank material, wheelbase, fog-cannon type and battery duty affect payload, range and cost. Confirm the electric drivetrain and battery specification for the final build.
Frequently asked questions
What is this vehicle designed to do?
Construction, industrial and municipal dust control.
What is the main capacity or working size?
13,000 L water tank. Final usable capacity and legal payload depend on the signed configuration and destination rules.
Which operating conditions suit this vehicle?
Typical suitable conditions include: Construction dust control, Industrial and logistics roads, Municipal washing.
Which specifications must be confirmed before ordering?
Confirm one chassis, drive side, powertrain, emission configuration, body or work-system drawing, axle weights and destination document list.
What information is needed for a quotation?
Required spray or fog range, Daily operating hours, Charging supply, Water source, Road gradient, Drive side, Destination port.
Plan a project quotation
Information to provide
- Required spray or fog range
- Daily operating hours
- Charging supply
- Water source
- Road gradient
- Drive side
- Destination port
Checks before quotation
- One fixed chassis and powertrain
- Approved body or work-system drawing
- Axle and gross weight statement
- Destination compliance document list
