Combination Sewer Cleaning Trucks

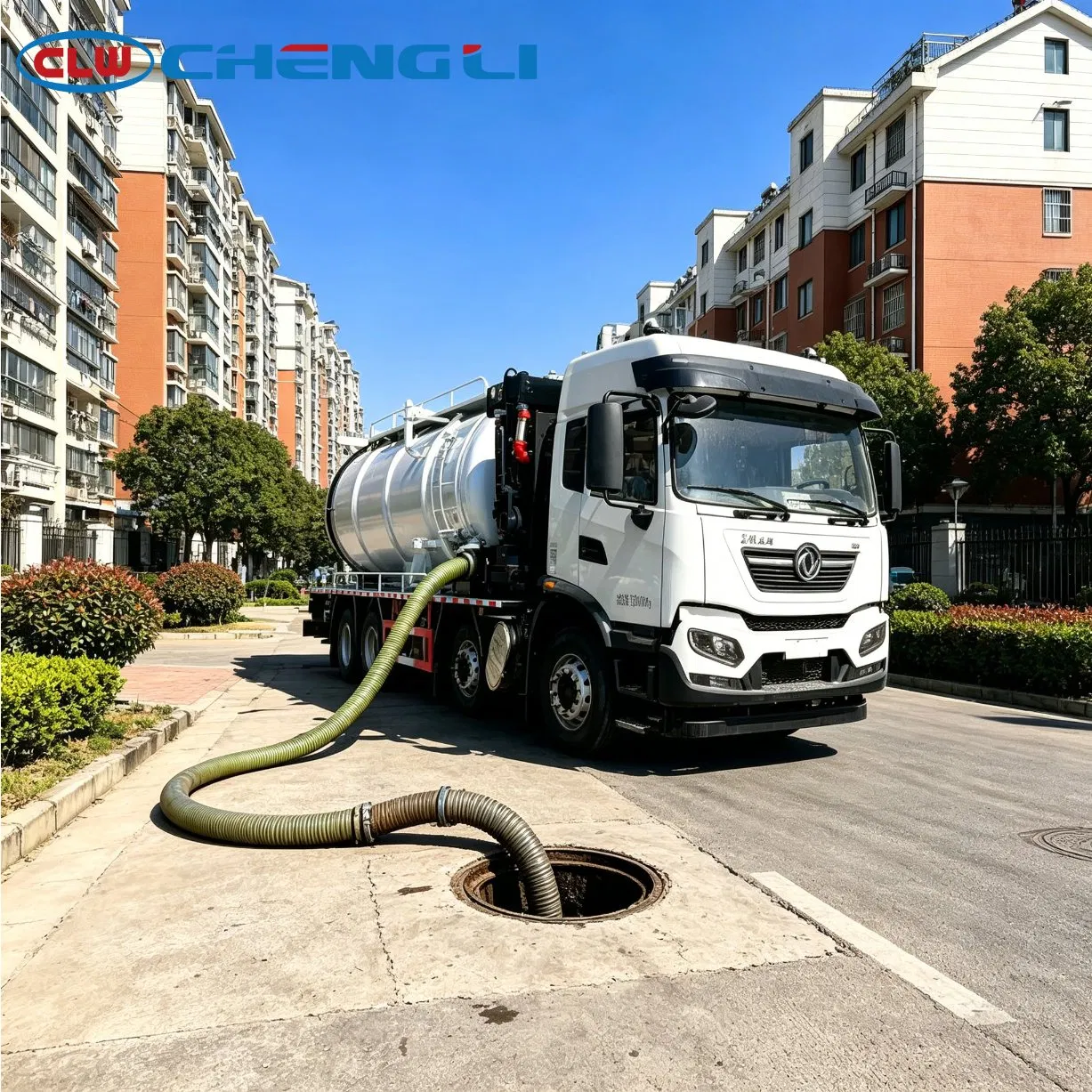

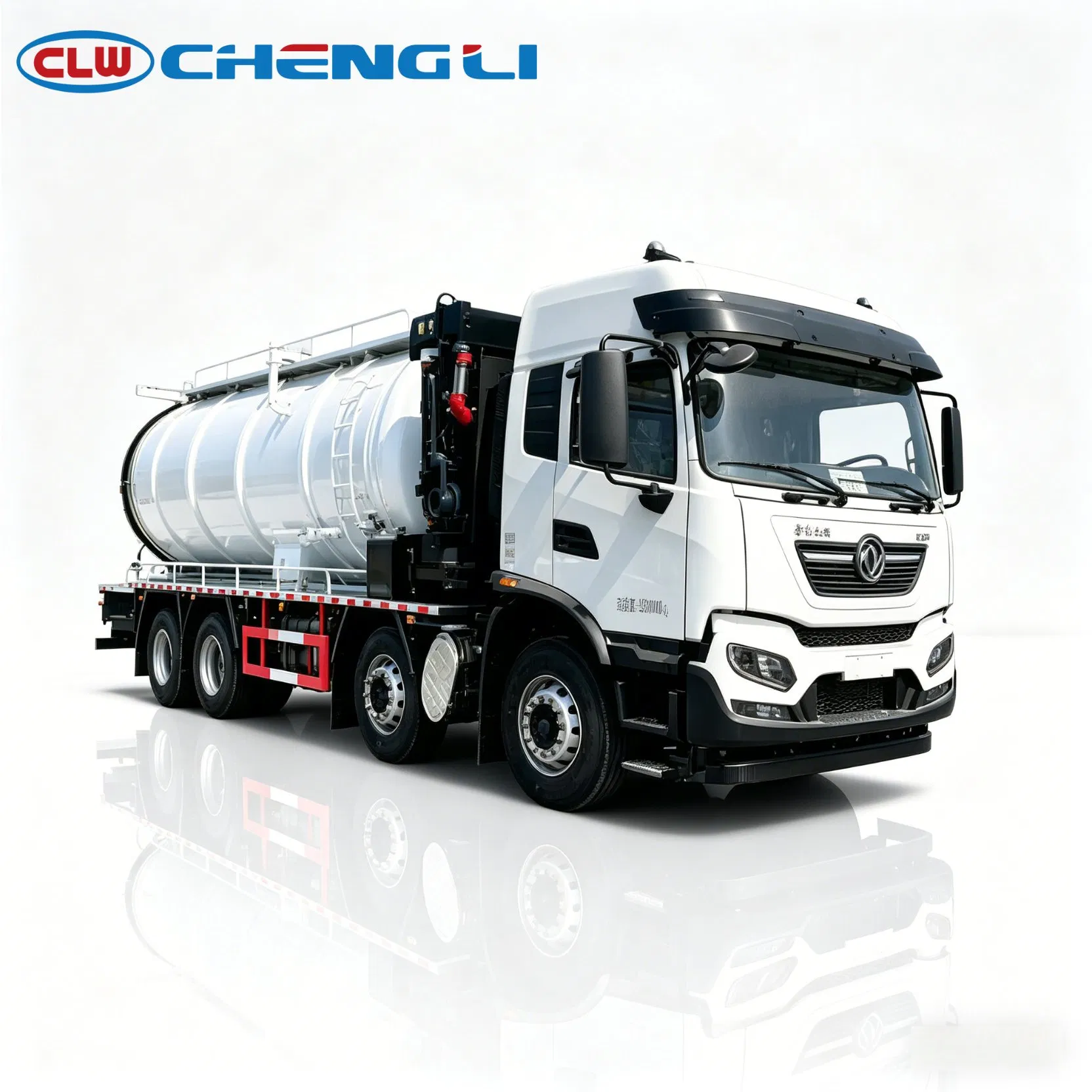

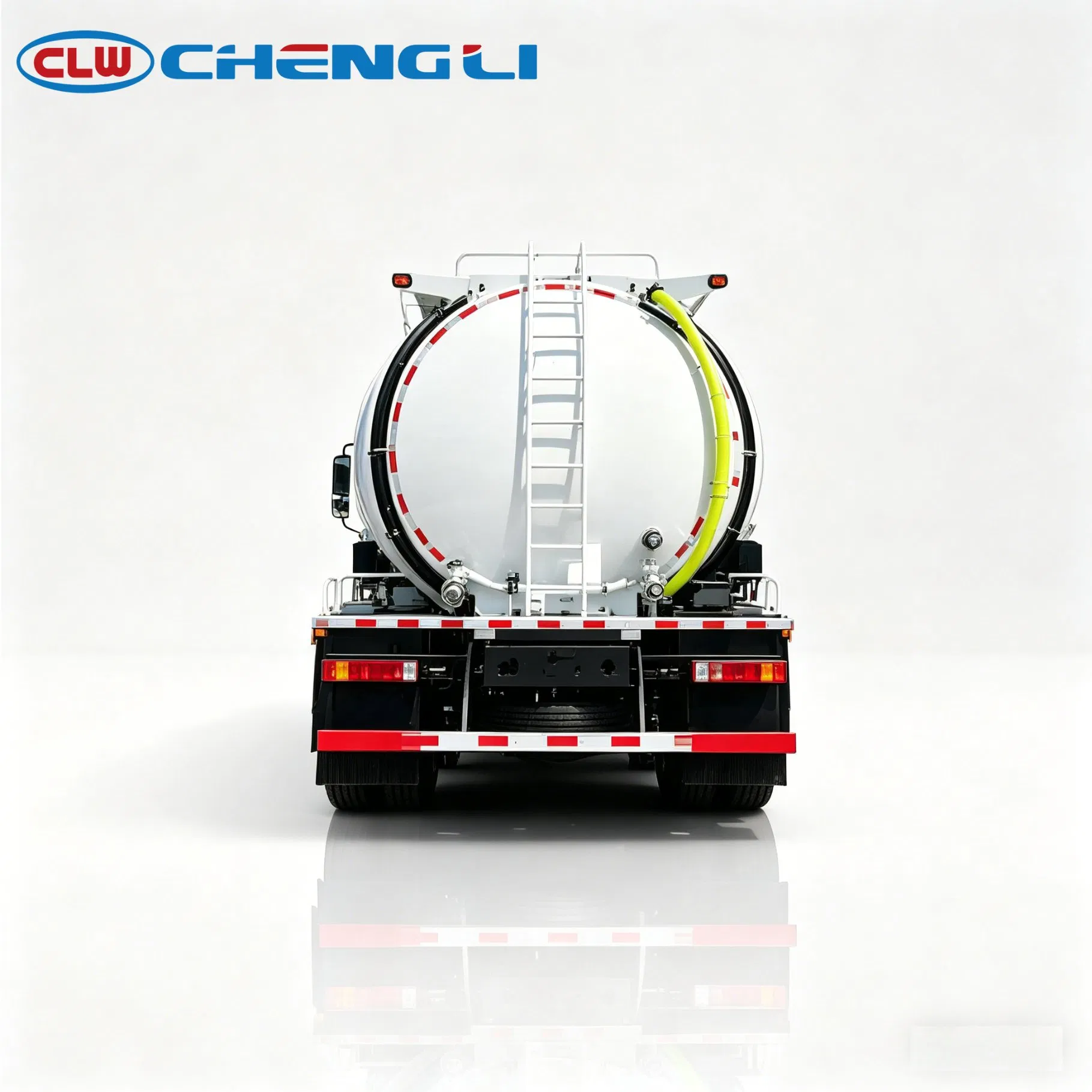

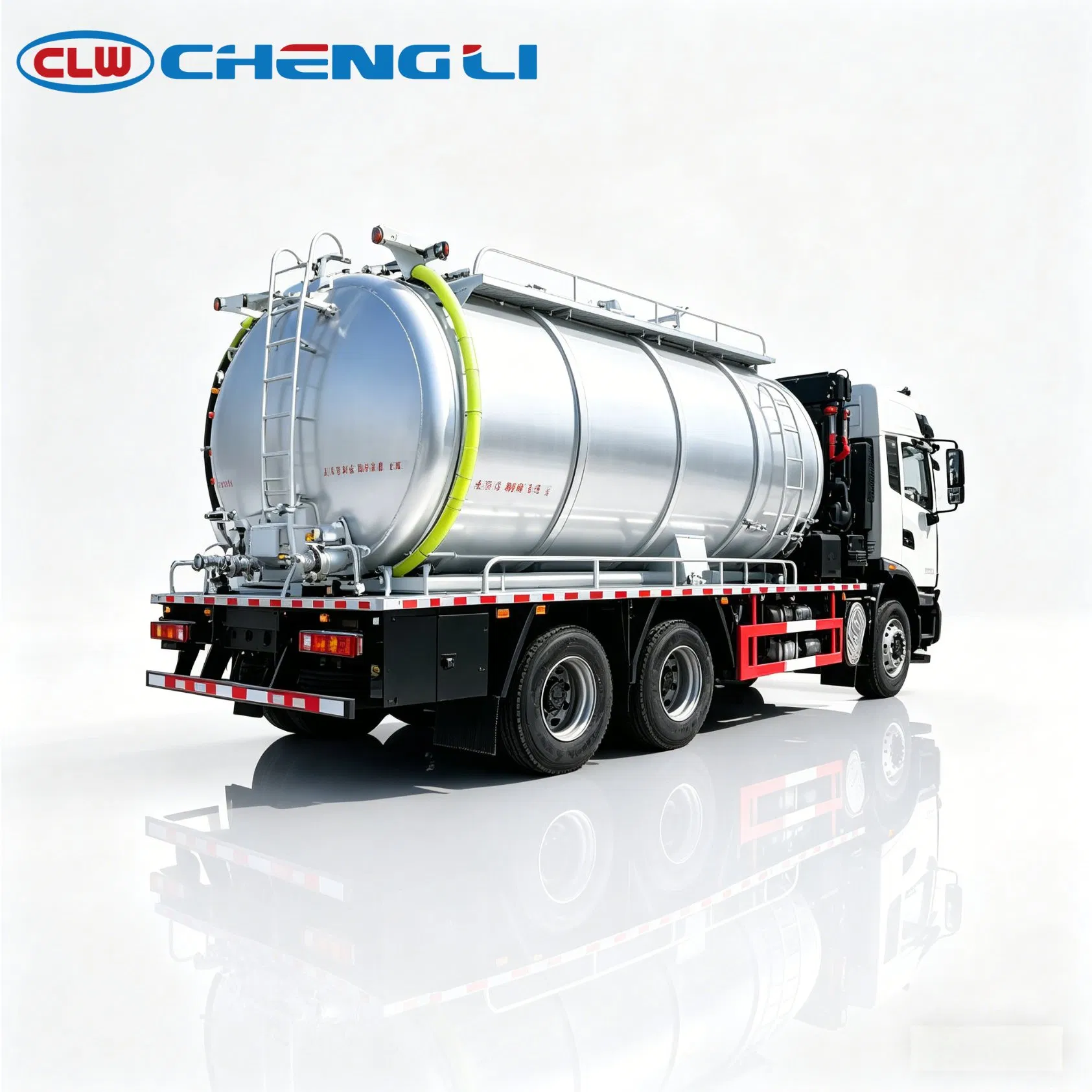

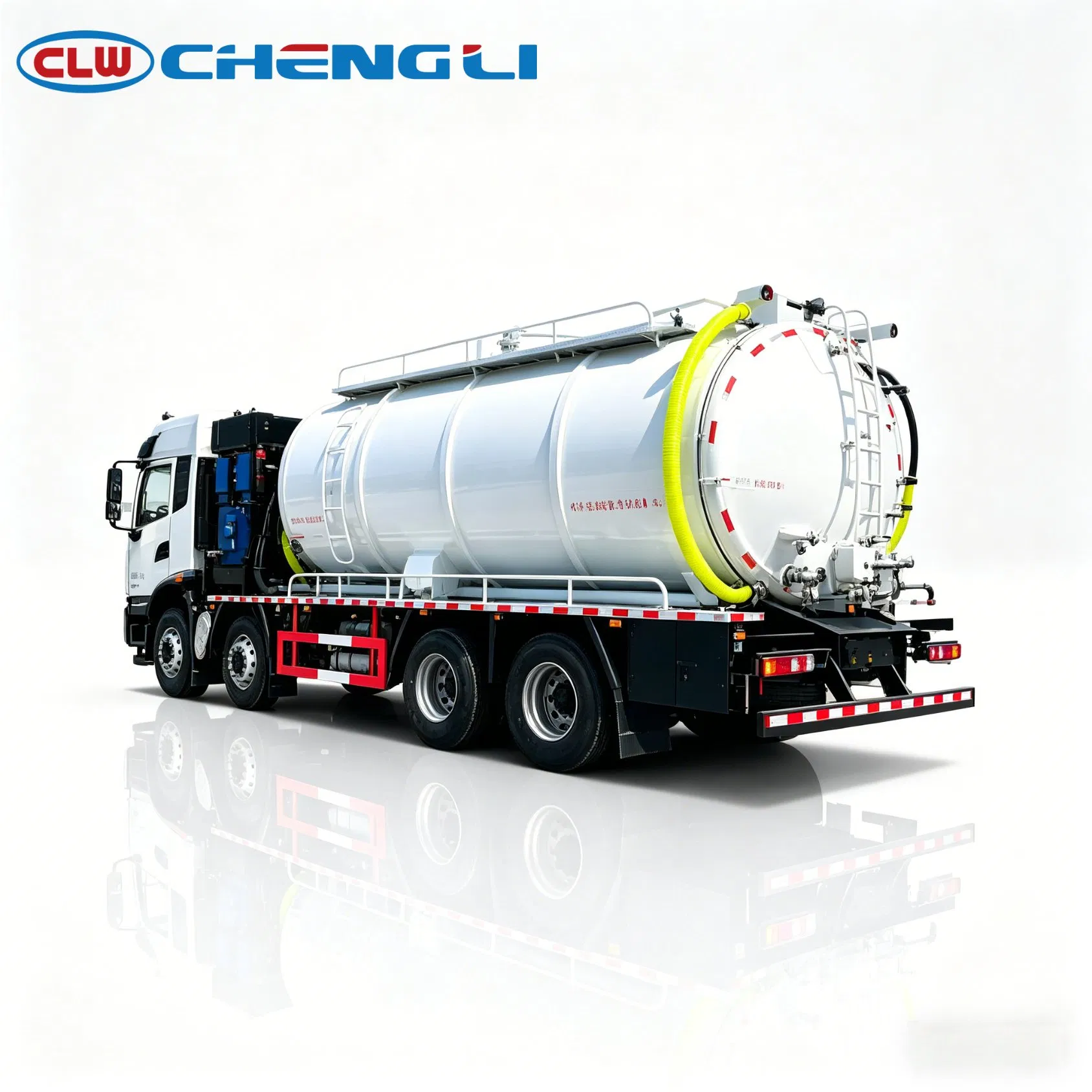

Dongfeng Kinland 8x4 Combination Sewer Jetting and Vacuum Truck
Dongfeng Kinland 8x4 combination truck for sewer jetting and vacuum recovery, with separate clean-water and sewage chambers. Select the tank capacity, pump set and legal loaded weight from a signed build specification.
Product gallery
Technical specifications
| Chassis brand | Dongfeng |
|---|---|
| Drive layout | 8x4 |
| Fuel type | Diesel |
| Transmission | Manual; final 8-speed or 10-speed selection pending |
| Chassis model | Kinland 8x4 |
| Chassis | Dongfeng Kinland 8x4 diesel |
| Engine options | Dongfeng Cummins 380 or 400 HP in the detailed source listing; final selection pending |
| Wheelbase | Select and confirm wheelbase on the final chassis drawing |
| Tank arrangement | Separate clean-water and sewage chambers; combined capacity to be confirmed by tank drawing |
| Sewage tank material | Q345B carbon steel, indicative 8 mm |
| Clean-water tank material | Q235B carbon steel, indicative 6 mm |
| Work systems | High-pressure water jetting plus vacuum sewage recovery |
| High-pressure pump options | PF300 or WL250 named in source; final model and duty point require confirmation |
| Vacuum pump options | 2BE3-50 or LC160 named in source; final model and duty point require confirmation |
| Hose equipment | Hydraulic reel, high-pressure hose and suction hose indicative; lengths and layout require quotation confirmation |
This larger combination truck is intended for municipal sewer maintenance routes with suitable vehicle access, a water source and an approved waste reception point. Confirm the final chassis, tank drawing and pump duty points against the route before ordering.
Core capabilities
Combined cleaning cycle
Water jetting loosens sewer deposits and vacuum equipment recovers the resulting slurry.
Conditions: Final pumps, hoses and operating settings selected for the job.
Separate water and waste storage
Supports a planned cleaning and recovery cycle without mixing clean water with collected waste.
Conditions: Final tank drawing and permitted fill volumes confirmed.
8x4 platform
Provides a heavy chassis format for larger routes.
Conditions: Road access, axle load and turning space checked.
Applications and operating fit
Municipal sewer jetting and sludge recovery on routes that can accommodate an 8x4 vehicle and legal disposal.
Suitable conditions
- Accessible municipal sewer routes
- Water supply and lawful waste-disposal access
- Sites with sufficient space for an 8x4 vehicle
Conditions requiring a different specification
- Confined access below verified vehicle clearance or turning radius
- Hazardous waste without proven tank and seal compatibility
- Work requiring an unverified suction depth or jetting duty point
Chassis and configuration
Dongfeng Cummins engine options; final engine and auxiliary engine to be selected
Configuration choices
- Choose an engine, jetting pump, vacuum pump and tank drawing together before quotation.
Frequently asked questions
What work does this vehicle combine?
It combines high-pressure sewer jetting and vacuum sewage recovery in one Dongfeng Kinland 8x4 vehicle.
What is the tank capacity?
Combined tank capacity has not been confirmed. Request a signed tank drawing and legal payload statement before specifying a volume.
Plan a project quotation
Information to provide
- Pipe diameter, length and blockage type
- Required jetting pressure and flow
- Expected suction depth and hose reach
- Access dimensions and road limits
- Water source, waste composition and disposal point
- Destination market and document needs
Checks before quotation
- Confirm combined tank volume and legal payload
- Approve tank drawing and compartment capacities
- Confirm pump curves and hose equipment
- Confirm chassis, wheelbase and axle statement
- Confirm destination compliance and documentation
