Combination Sewer Cleaning Trucks

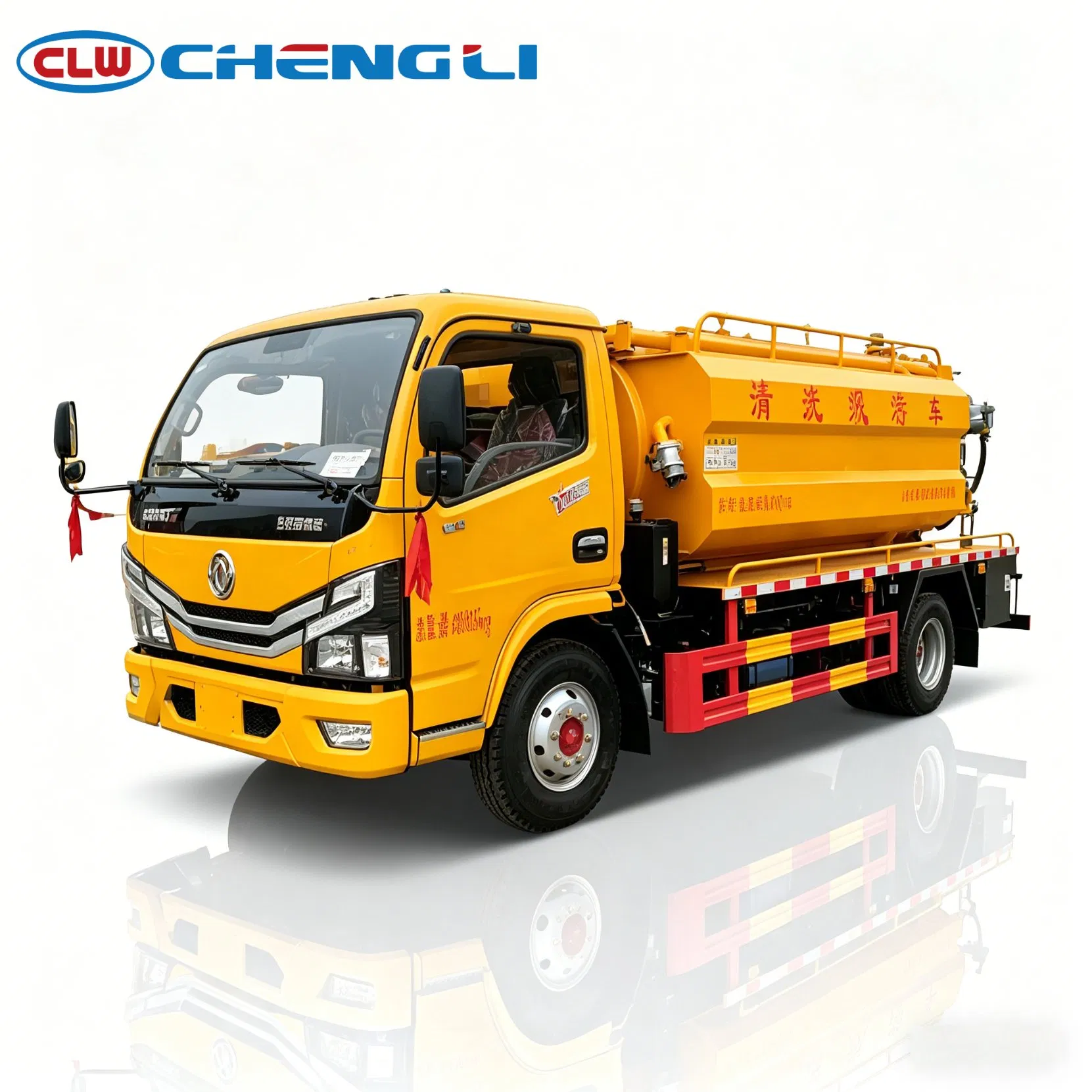

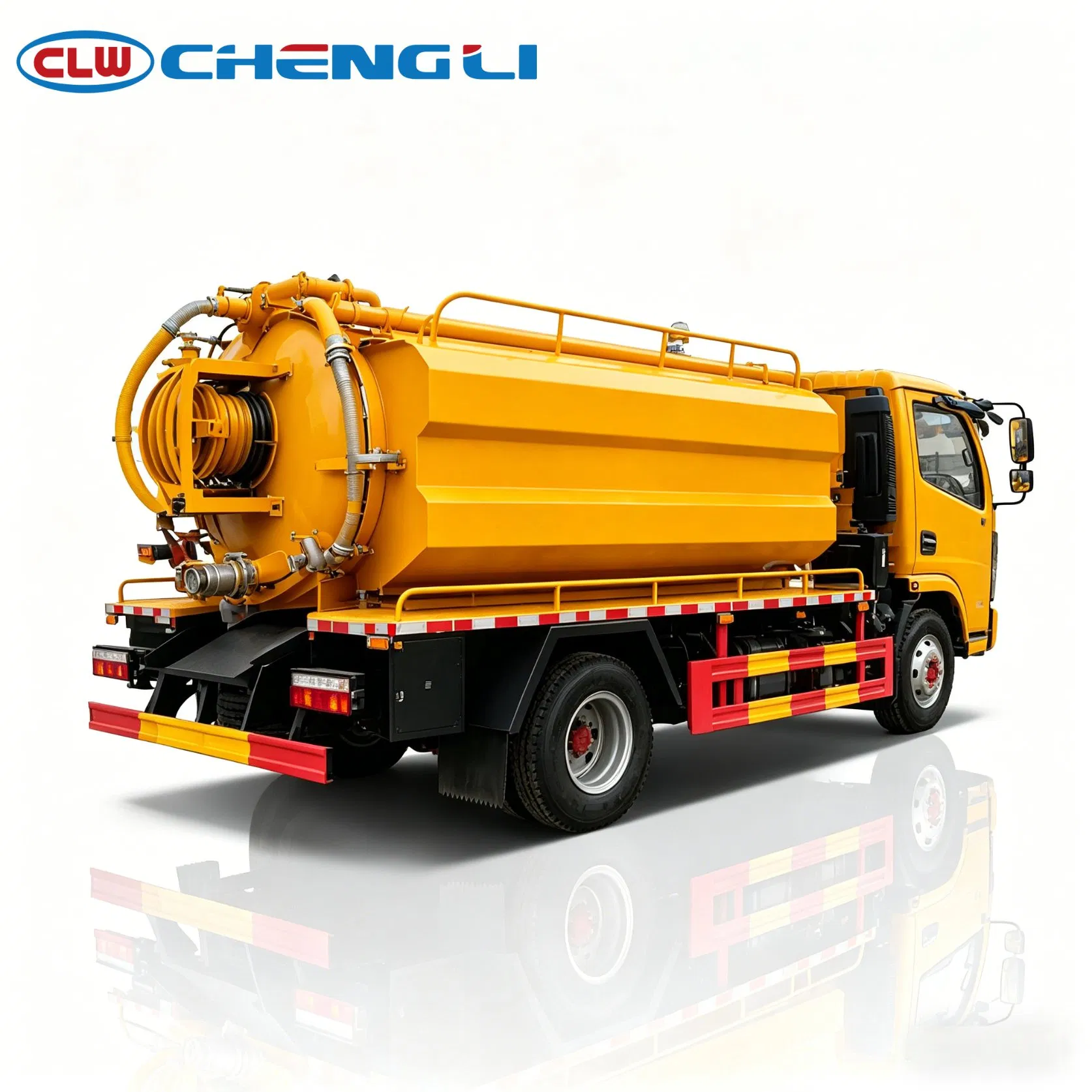

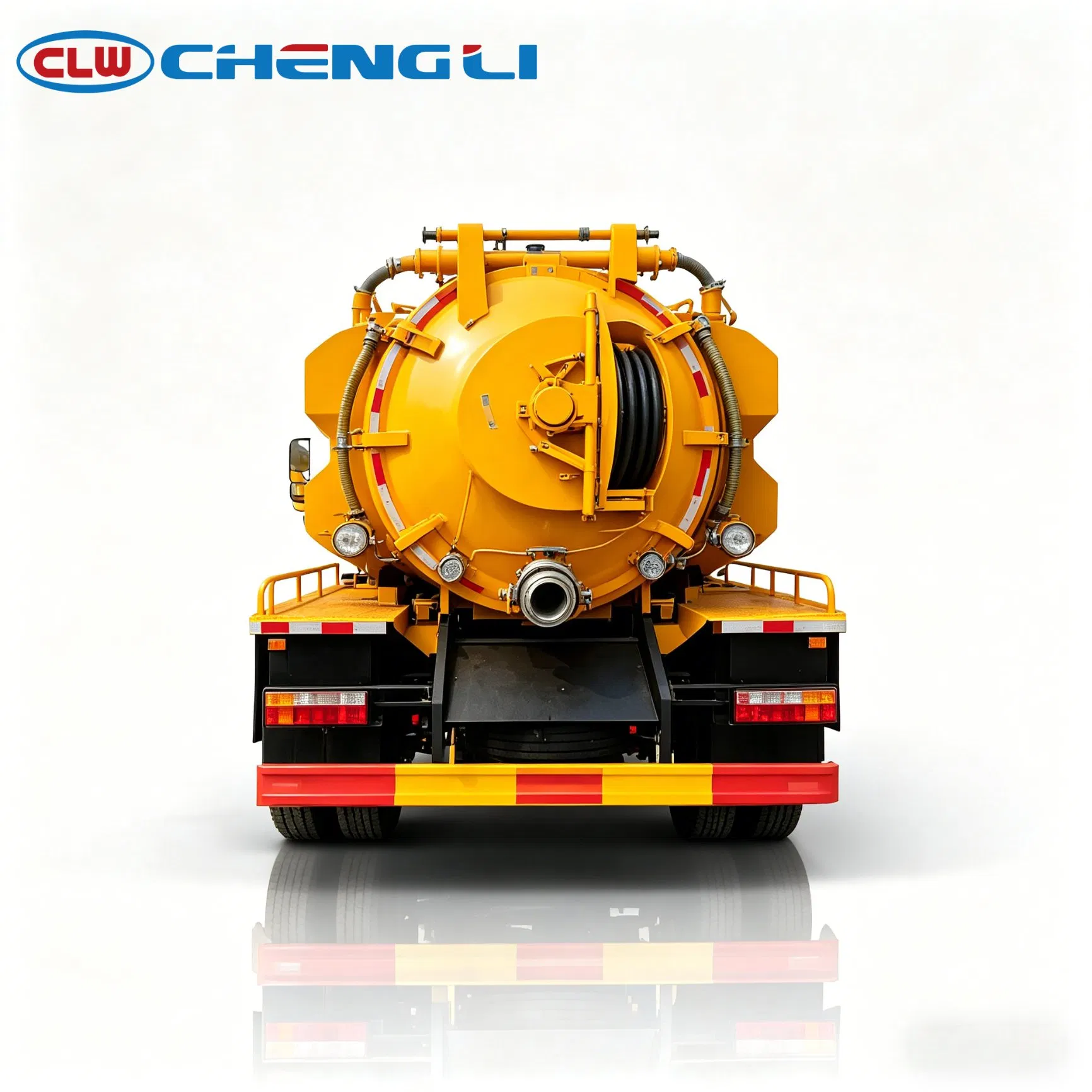

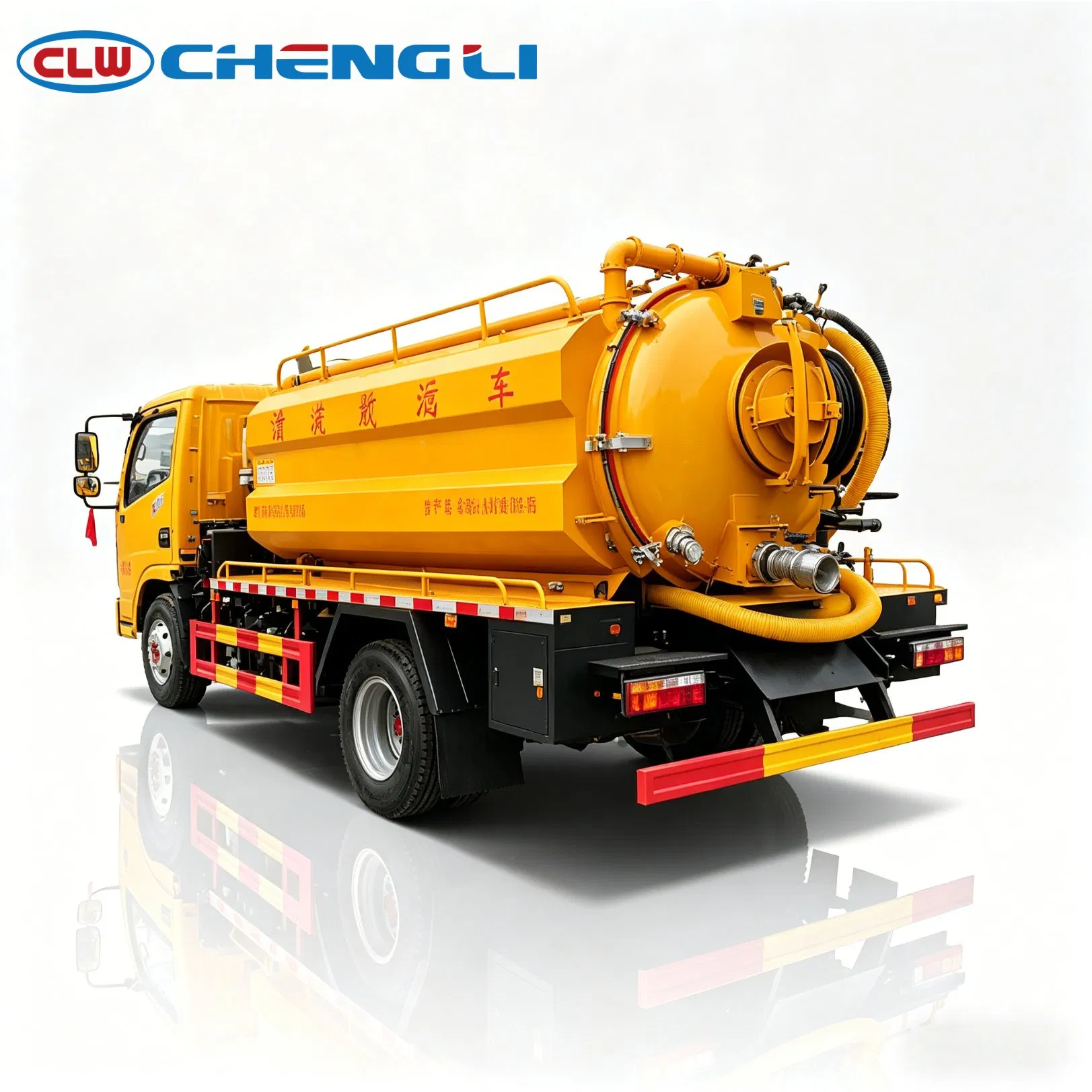

Dongfeng 6 m³ Compact Combination Sewer Cleaning Truck
Dongfeng 6 m³ Compact Combination Sewer Cleaning Truck is configured for combined sewer jetting and vacuum suction. Source specifications describe the principal chassis and working system; final axle loads, dimensions, pump or lifting duty, destination compliance and optional equipment must be confirmed against the signed build sheet before quotation.
Product gallery
Technical specifications
| Sewage / clean-water capacity | Source-listed nominal capacity: 6m³ (4m³ Sewage + 2m³ Clean Water) |
|---|---|
| Chassis brand | Dongfeng |
| Drive layout | 4x2 |
| Fuel type | Diesel |
| Transmission | Manual |
| Wheelbase | 3800mm |
| Gross vehicle weight | 7360 kg |
| Overall width | 2050 mm |
| Overall height | 2200 mm |
| Overall length | 5900 mm |
| Gross vehicle weight | 7360 Kg |
| Curb weight | Not confirmed |
| Rated payload | 1960 kg |
| Overall dimensions | 5900×2050×2200mm |
| Working system | High-pressure jetting and vacuum suction systems |
| Final duty point | Confirm against the signed configuration and operating conditions |
Dongfeng 6 m³ Compact Combination Sewer Cleaning Truck should be assessed within the complete operating workflow. Combined sewer work requires the jetting and recovery stages to be planned together so loosened material can be removed efficiently.
Review manhole access, hose reach, refill logistics and disposal procedures before selecting the final system configuration. Exact sourced values and items requiring confirmation are kept in the structured sections below.
Core capabilities
Purpose-built working system
High-pressure jetting and vacuum suction systems
Conditions: Final equipment configuration and duty point are confirmed.
Nominal carrying capacity
Source lists 6m³ (4m³ Sewage + 2m³ Clean Water).
Conditions: Legal fill depends on final gross and axle weights.
Applications and operating fit
Combined sewer jetting and vacuum suction
Suitable conditions
- Municipal sewer maintenance
- Drain blockage removal with waste recovery
- Sites with refill water and approved disposal
Conditions requiring a different specification
- Hazardous waste without compatibility review
- Work beyond verified pump duty
- Restricted sites outside vehicle clearance
Chassis and configuration
Frequently asked questions
What should be confirmed before quotation?
Confirm the required capacity, daily workload, site access, destination rules and final working-system performance. The source figures are configuration references, not guaranteed values.
Is the listed capacity the legal payload?
No. Nominal tank or body volume is not the same as legal payload. Permitted fill must be checked against final gross vehicle and axle weights.
Plan a project quotation
Information to provide
- Required capacity and daily workload
- Road, access and turning constraints
- Destination country and steering side
- Required working-system performance
- Applicable registration and compliance documents
Checks before quotation
- Confirm signed chassis and body specification
- Confirm legal gross and axle loads
- Confirm working-system duty point
- Confirm destination compliance and documents
- Confirm image and final build correspondence
