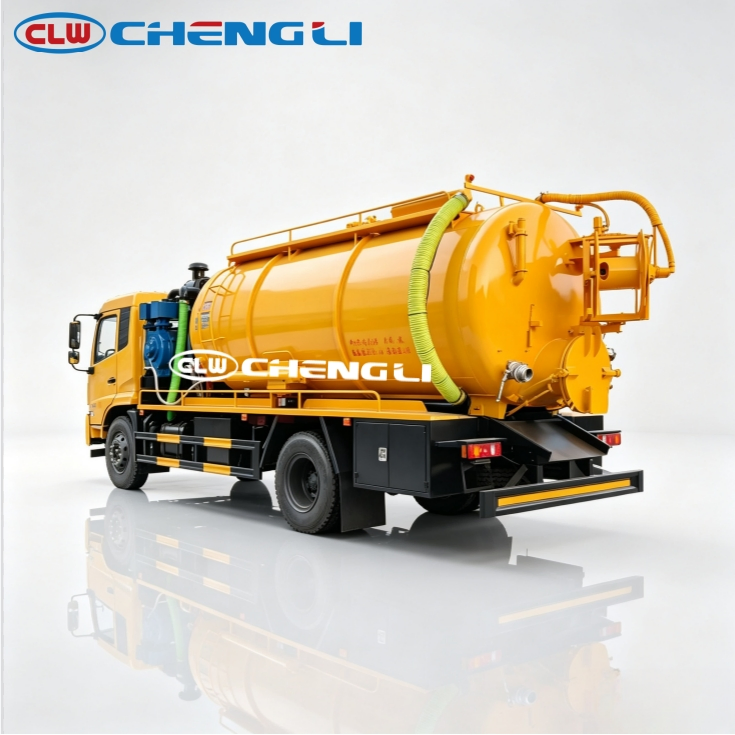

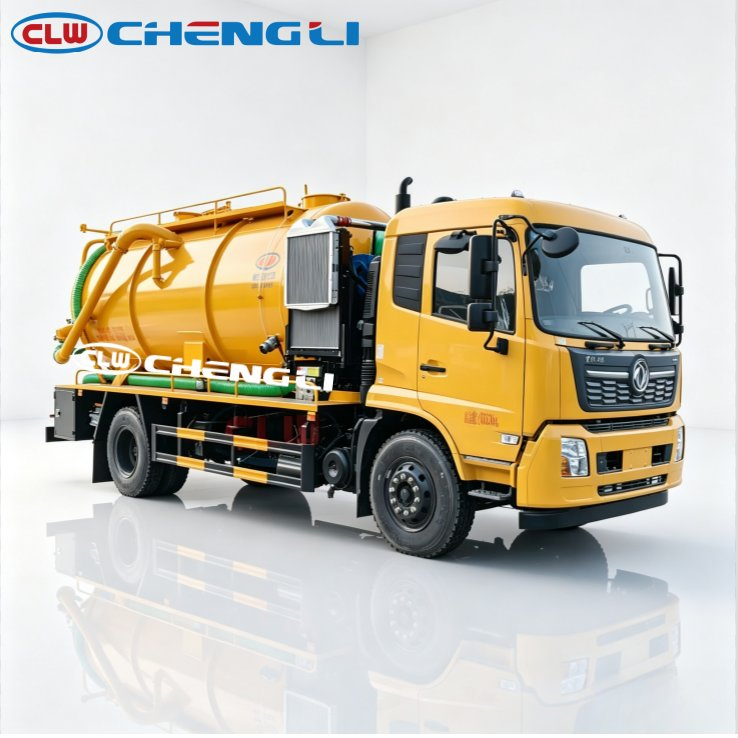

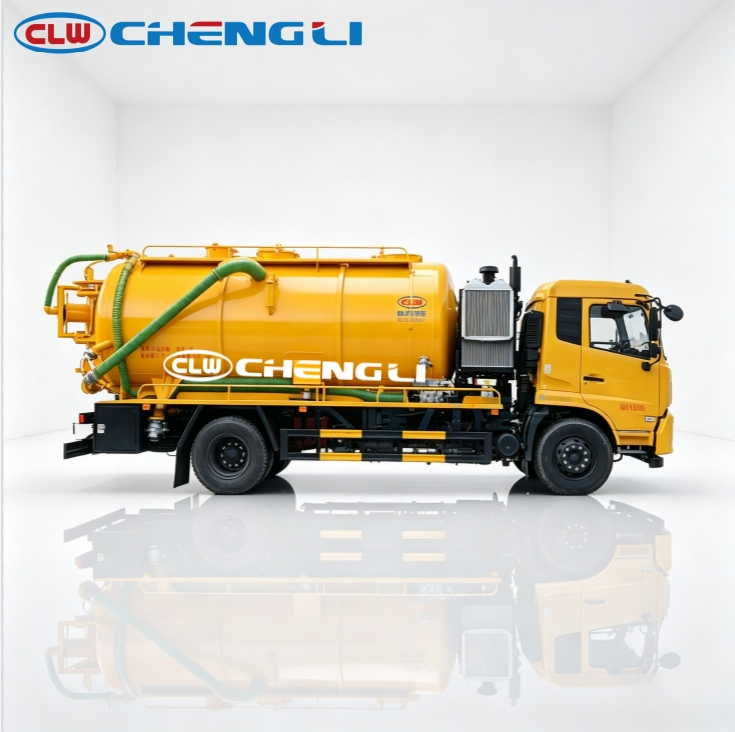

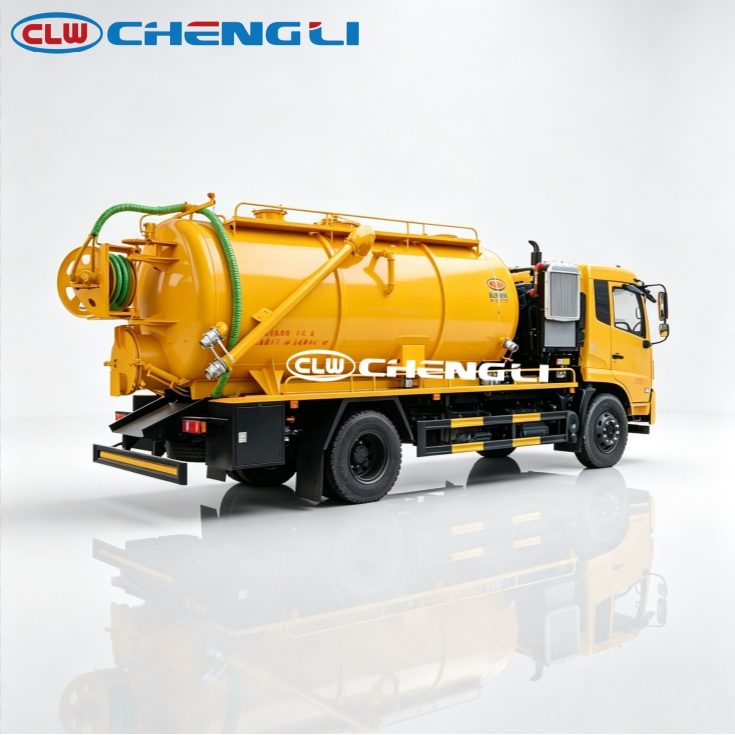

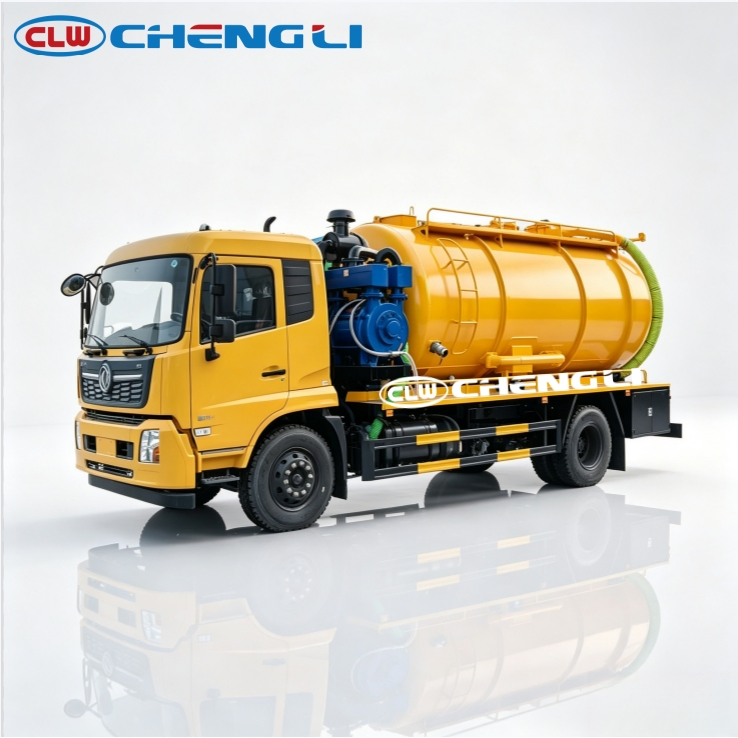

Dongfeng 4x2 15 m³ Combination Sewer Jetting and Suction Truck
Dongfeng 4x2 combination sewer truck with nominal 4 m³ clean-water and 11 m³ sewage chambers for jetting and suction work. Confirm pump settings and permitted loaded weight for the final build.
Product gallery
Technical specifications
| Sewage / clean-water capacity | Nominal 15 m³ tank split: 4 m³ clean water + 11 m³ sewage |
|---|---|
| Chassis brand | Dongfeng |
| Drive layout | 4x2 |
| Fuel type | Diesel |
| Transmission | Manual; final gear specification pending |
| Wheelbase | 4,500 mm indicative |
| Gross vehicle weight | 18000 kg |
| Overall width | 2550 mm |
| Overall height | 3550 mm |
| Overall length | 9300 mm |
| Curb weight | 13,400 kg indicative; final certified value pending |
| Nominal clean-water chamber | 4,000 L nominal |
| Nominal sewage chamber | 11,000 L nominal |
| Tank material | Q235 carbon steel; anti-rust treatment to confirm on final tank specification |
| Legal fill | Not established from nominal volume; obtain signed gross and axle load statement |
| Work systems | Sewer jetting and sewage suction indicative |
| Jetting pump | Model, pressure and flow not confirmed in this source record |
| Suction pump | Model, vacuum duty point and hose reach not confirmed in this source record |
This combination vehicle is intended for planned drain-cleaning routes with adequate road access, refill water and approved waste handling. Match the final pump configuration and loaded weight to the actual work site before ordering.
Core capabilities
Two-system sewer service
Jetting and suction are listed for one service vehicle.
Conditions: Final pump types and operating duty points are confirmed.
Separate tank chambers
Nominal 4 m³ clean-water and 11 m³ sewage chambers separate supply from collected waste.
Conditions: Tank drawing and permitted loaded weight are confirmed.
4x2 route access
The 4x2 layout offers a smaller platform than the site's 8x4 combination truck.
Conditions: Actual width, height, length and turning space fit the site.
Applications and operating fit
Municipal sewer jetting with sewage recovery where the vehicle can access water and approved waste reception.
Suitable conditions
- Accessible municipal drains and sewers
- Available refill water and approved waste reception
- Routes fitting the listed 9.3 m length and 2.55 m width
Conditions requiring a different specification
- Access below verified 3.55 m height or inadequate turning space
- Hazardous waste without approved material compatibility
- Work requiring unverified jetting flow, pressure or suction depth
Chassis and configuration
Diesel; Cummins 245 or 260 HP engine options. Select one for the final build.
Configuration choices
- Choose between 245 and 260 HP engine options, then confirm jetting and suction pump models and duty points before quotation.
Frequently asked questions
How are the tanks divided?
The nominal tank configuration has 4,000 L for clean water and 11,000 L for sewage. These are nominal chamber volumes; permitted fill depends on final weight and axle data.
Are jetting and suction both included?
This configuration combines sewer jetting and suction. Confirm pump models, pressure, flow and suction performance for the final build.
Plan a project quotation
Information to provide
- Pipe diameter, length and blockage type
- Required jetting pressure and flow
- Suction depth and hose distance
- Access width, height and turning radius
- Water supply, waste type and disposal point
- Destination country and paperwork
Checks before quotation
- Confirm a signed 4 m³ / 11 m³ tank drawing
- Confirm legal fill from gross and axle weights
- Confirm jetting and vacuum pump duty points
- Confirm chassis and engine configuration
- Check destination rules and documents
